CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS

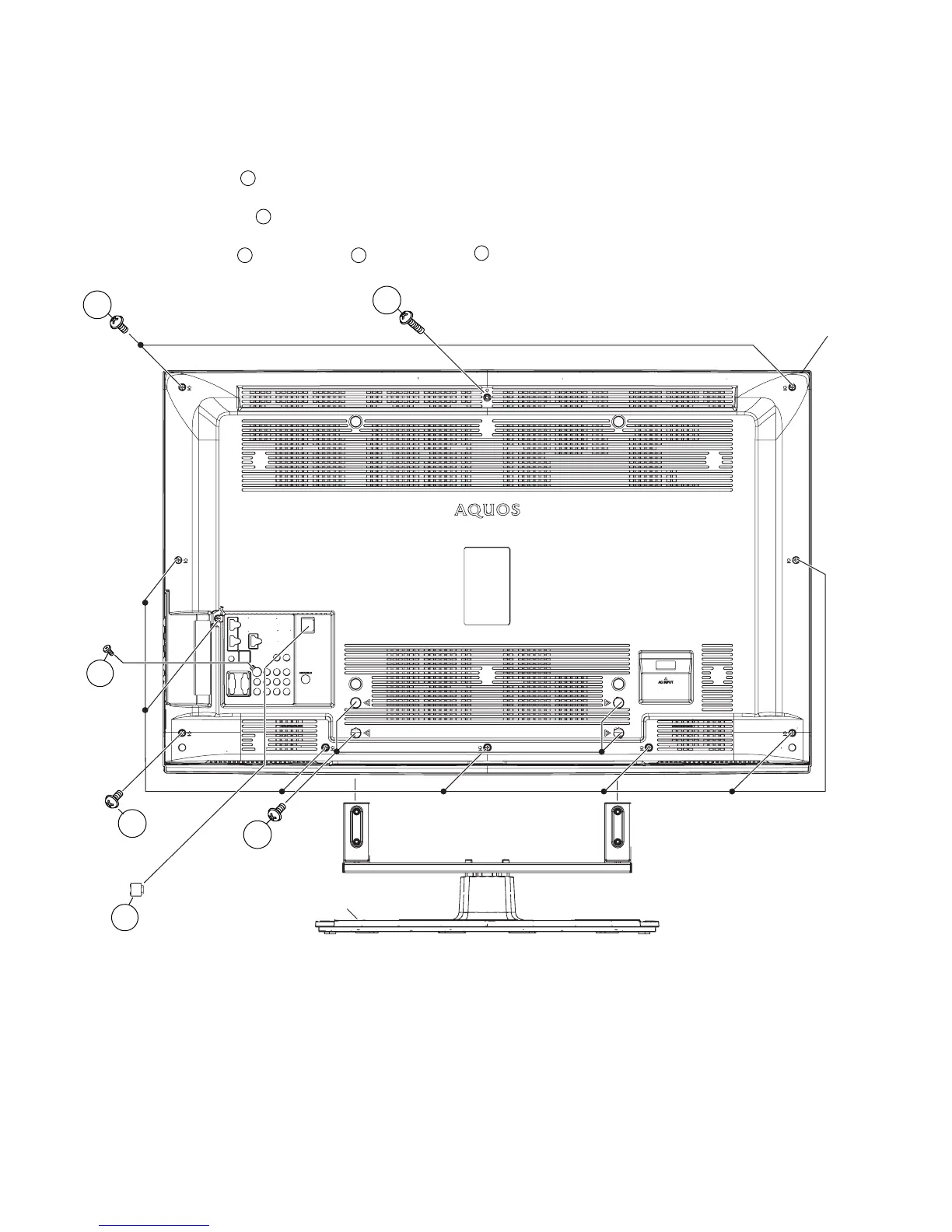

1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 4 lock screws and detach the Stand Unit.
2. Detach the Bass Cone Cover .
3. Remove the 1 lock screw , 1 lock screw , 10 lock screws and detach the Rear Cabinet Ass’y.
1
2
3
4
5
5
1
5
Stand Unit
Rear Cabinet Ass'y
3
2
Bass Cone Cover
4
