LC-40E67U/LC-40E77U
4 – 2

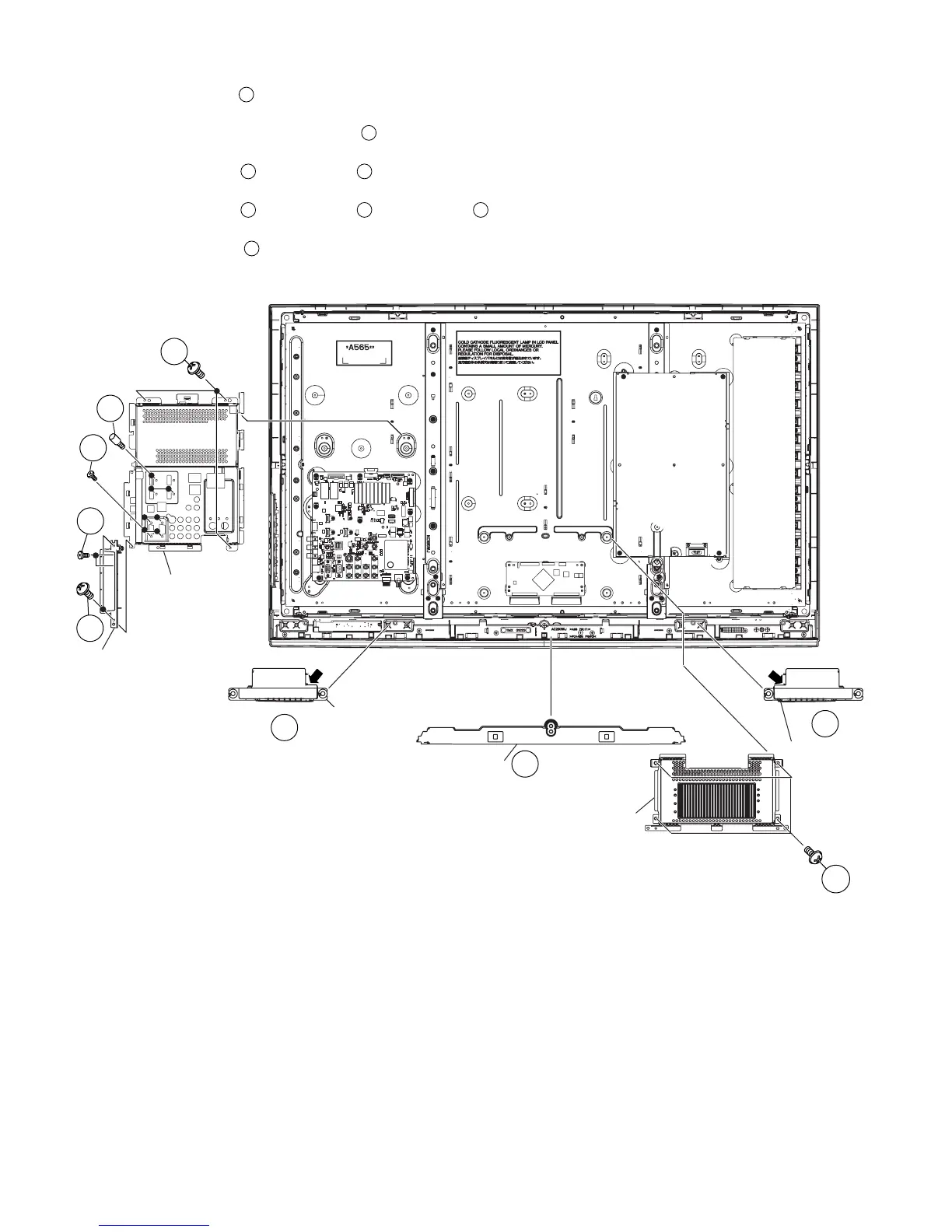

2. Removing of Button Cover,Speaker-L/R, Side AV Cover Ass’y, Main PWB Shield, Control Shield Ass’y.
1. Detach the Bottom Cover .
2. Disconnect SP wire and detach the Speaker-L/R .
3. Remove the 2 lock screws , 2 lock screws and detach the Side AV Cover Ass’y.
4. Remove the 3 lock screws , 4 lock screws , 3 lock screws and detach the Main PWB Shield.
5. Remove the 4 lock screws and detach the Control Shield Ass’y (LC-40E77U).
1
2
3 4
5 6 7
8
Speaker-R
Speaker-L
Bottom Cover
Main PWB
Shield
Side AV Cover Ass'y
2
1
4
3
6
5
2
SP
SP
Control Shield Ass'y
(LC-40E77U)
8
7
