LC-40E67U/LC-40E77U
4 – 3

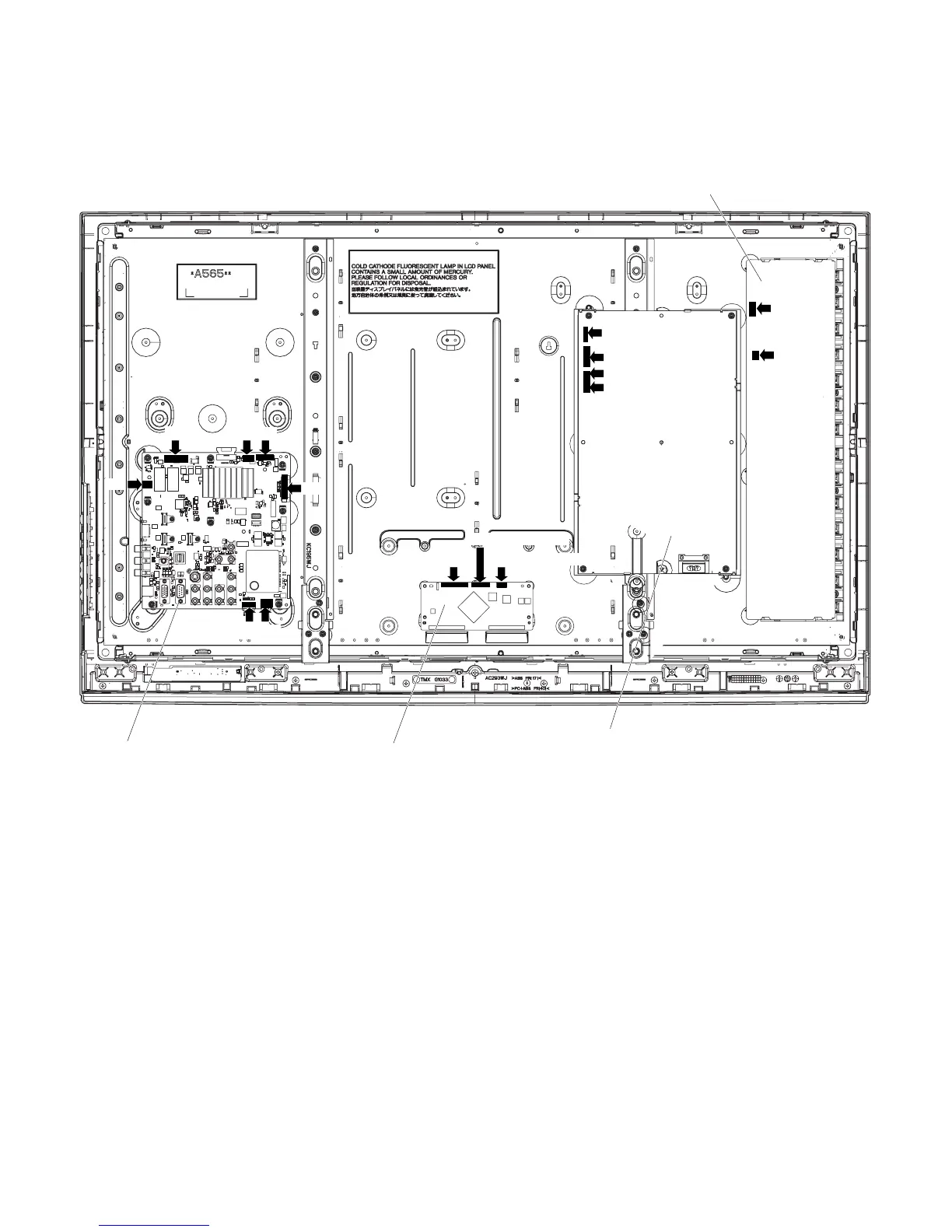

3. Removing of Connectors.
1. Disconnect the following connectors from MAIN Unit. (PD, LB1, LP, LW, KM, RA ,SP)
2. Disconnect the following connectors from POWER Unit. (PD, LB1, LW (LC-40E67U), PL (LC-40E77U))
3. Disconnect the following connectors from LCD Control Unit. (LW, LP (LC-40E77U), PL (LC-40E77U))
RA
LW
PD
PD
KM
LP
PL (LC-40E77U)
SP
LW (LC-40E67U)
LB1
LB1
LB
LA
LW
PL (LC-40E77U)
LP (LC-40E77U)
MAIN Unit
LCD Control Unit
POWER Unit
INVERTER-1 Unit
