LC-40E67U/LC-40E77U
4 – 4

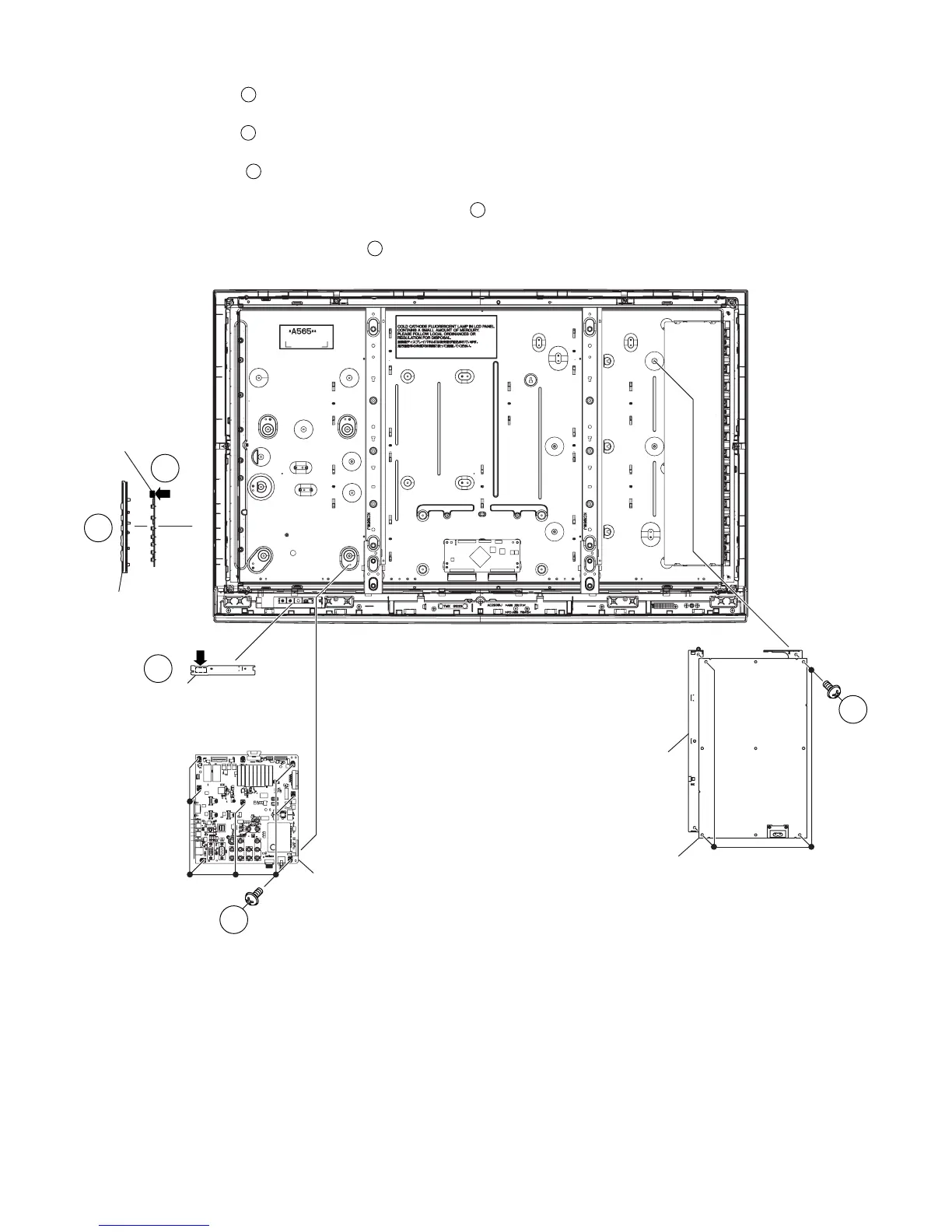

4. Removing of and POWER Unit, MAIN Unit, KEY Unit Ass’y and R/C, LED Unit.
1. Remove the 4 lock screws and detach the POWER Unit, POWER PWB Holder.
2. Remove the 8 lock screws and detach the MAIN Unit.
3. Detacht the KEY Unit Ass’y .
4. Detach the KEY Unit from Operation Button and disconnect KM wire .
5. Detach the R/C LED Unit and disconnect RA wire .
1
2
3
4
5
MAIN Unit
R/C, LED Unit
Power PWB Holder
POWER Unit
KEY Unit
Operation
Button
2
3
5
4
1
KM
RA
To Next Page
