LC-40E67U/LC-40E77U
4 – 5

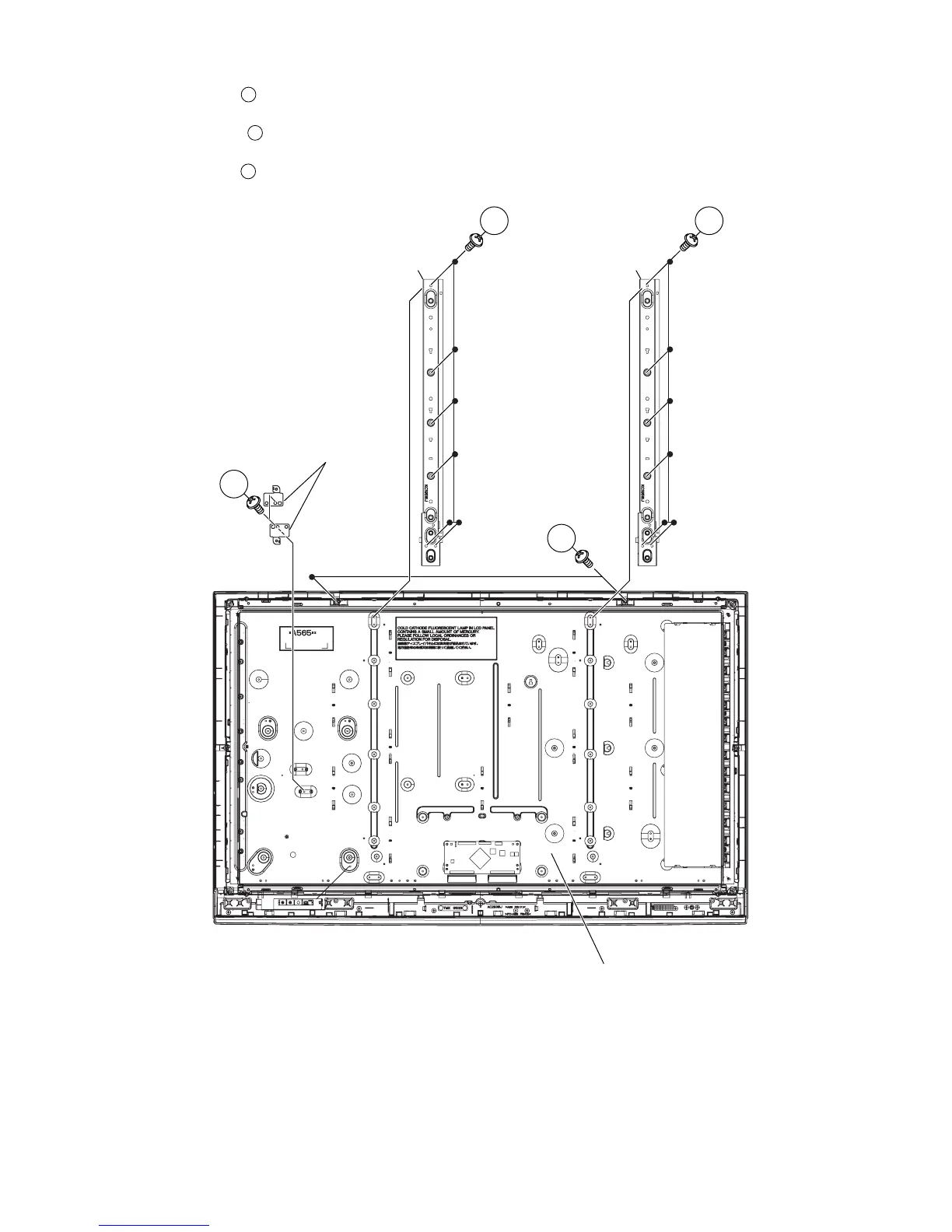

5. Removing of Main PWB Angle, Panel Support Angle and LCD Panel Module Unit.
1. Remove the 2 lock screws and detach the 2 pieces Main PWB Angle.
2. Remove the 12 lock screws and detach the Support Angle.
3. Remove the 2 lock screws and detach the LCD Panel Module Unit.
1
2
3
3
2
LCD Panel Module Unit
Panel Support Angle
Panel Support Angle
1
Main PWB Angle
2
