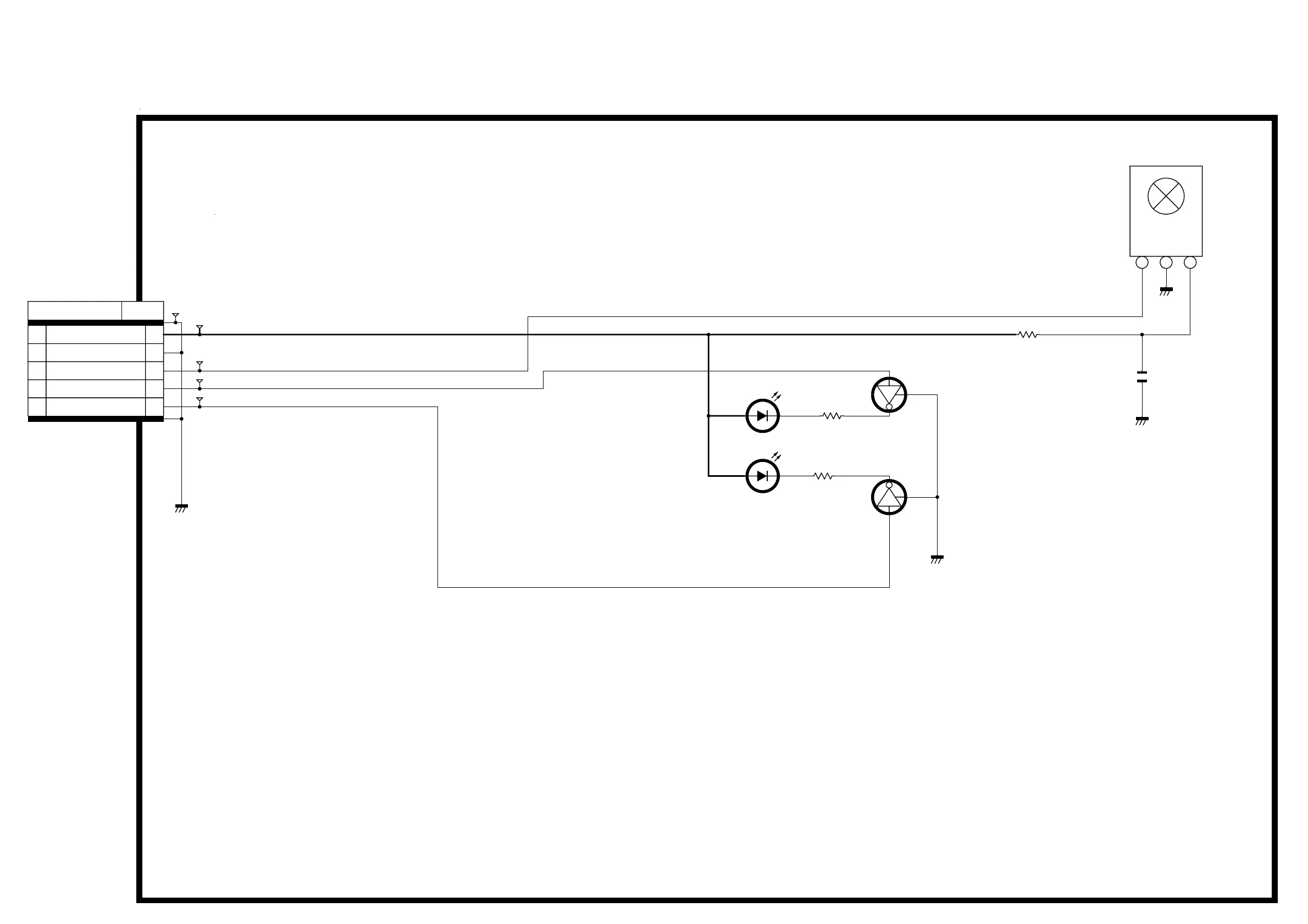

R151
100
TL151
TL154
TL153
TL152
TL155
C157
10u
CKZ
D153
PXA265WJQZ
Green
D152
PXA264WJQZ
RED
P151
NB150WJ
TO MAIN RA
1
D+3.3V
2
GND
3
R/C
4
LED_G
5
LED_R
Q152
LTC014EEB
LED CONT
Q153
LTC014EEB
LED CONT
RMC151
UA088WJ
123
R158
330
R159
5.6K
MP (2016.04.26)
RC.LED UNIT
32LE280X/ 40LE280X
R/C.LED
LC-32/40LE280X/280X-WH
