Sharp LC-40LE700E Service Manual

LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S
4 – 6
5. Precautions on replacing the POWER Unit on 32 inch models.
Before replacing the power unit (RUNTKA619WJQZ) or doing similar jobs on the 32 inch models, be sure to get C7015 discharged first. Because oth-
erwise residual voltage may be still in the PFC circuit.
(Getting C7015 discharged)

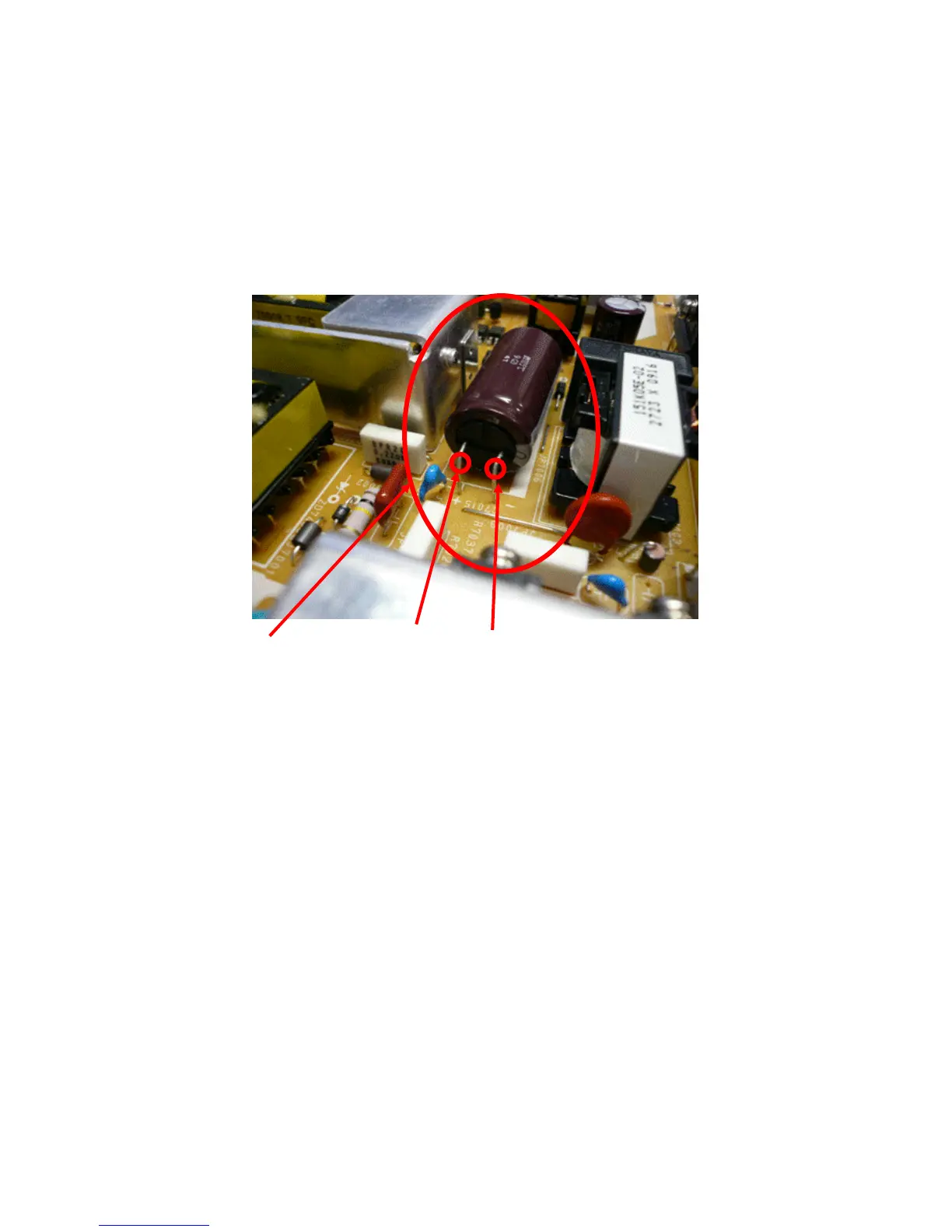

Keep a discharge resistance (2.2KΩ/10W) in contact between the terminals A and B of C7015 for 2-3 seconds (see below). In so doing, the C7015
will get discharged.
Discharge resistance (2.2KΩ/10W) => VRW-KQ4AC222J
(Discharge the capacitor with a resistance as close to the above as possible.)
C7105
A B

Sharp LC-40LE700E Specifications

General

Comb filter	3D
Display diagonal	40 \
Display brightness	450 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Native refresh rate	100 Hz
Display diagonal (metric)	102 cm
Viewing angle, horizontal	176 °
Power requirements	AC220V-AC240V/50Hz-60Hz
HDMI ports quantity	4
SCART ports quantity	2
Digital audio optical out	1
Cables included	AC
Product color	Black

Weight and Dimensions

Weight (with stand)	11600 g
Depth (without stand)	93.1 mm
Width (without stand)	964 mm
Height (without stand)	612 mm
