2.4. IC4404 (VHiAOZ1320C-1Y)

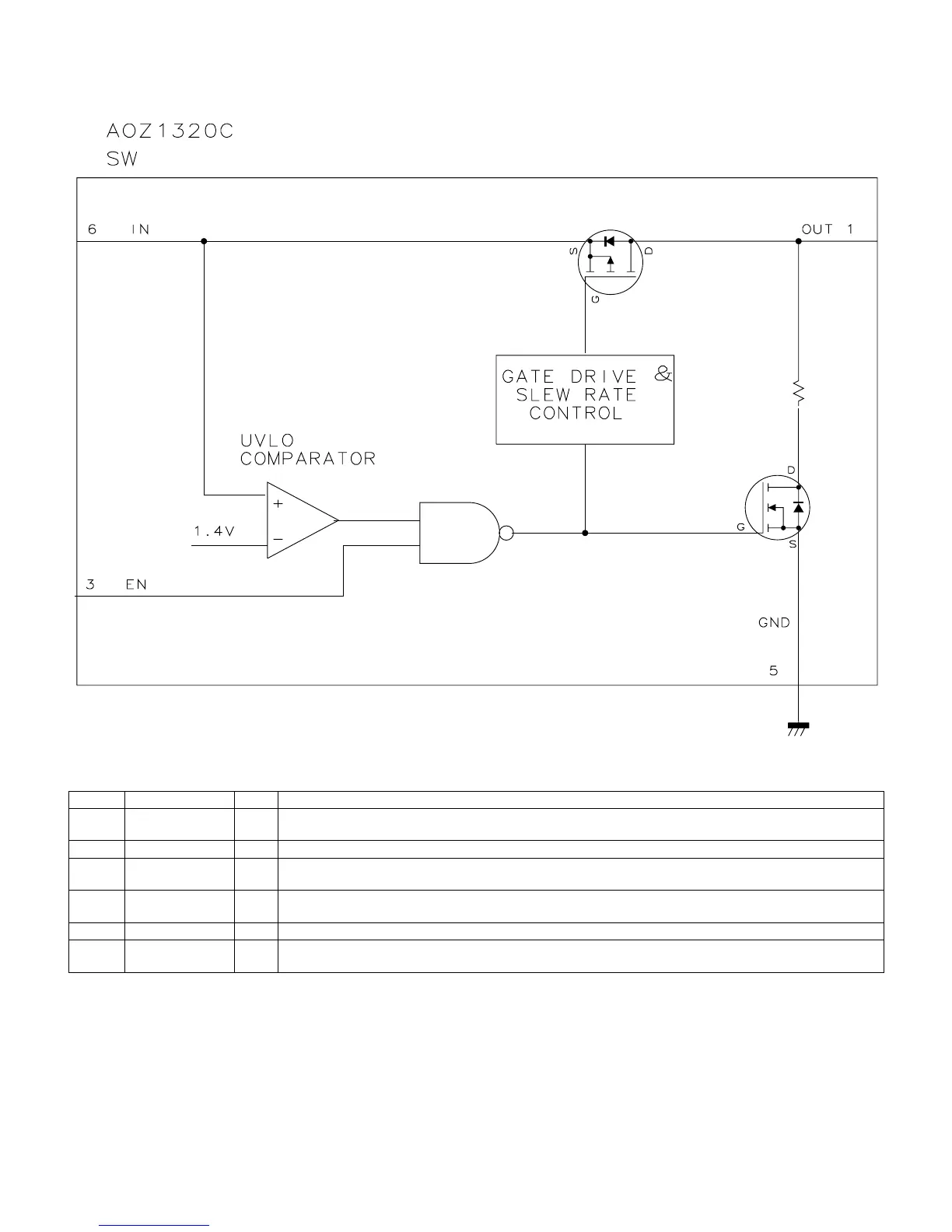

2.4.1 Block Diagram
2.4.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1OUT OOutput.
OUT is the source of the P-channel MOSFET.
2 GND — Ground
3 EN I Enable.
The P-channel MOSFET turns on when EN is logic HIGH.
4 NC — No connect.
This pin is not internally connected.
5 GND — Ground
6 IN I Input.
IN is the drain of the P-channel MOS FET. It is the supply input of the IC.

Sharp LC-40LE700E Specifications

General

Comb filter	3D
Display diagonal	40 \
Display brightness	450 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Native refresh rate	100 Hz
Display diagonal (metric)	102 cm
Viewing angle, horizontal	176 °
Power requirements	AC220V-AC240V/50Hz-60Hz
HDMI ports quantity	4
SCART ports quantity	2
Digital audio optical out	1
Cables included	AC
Product color	Black

Weight and Dimensions

Weight (with stand)	11600 g
Depth (without stand)	93.1 mm
Width (without stand)	964 mm
Height (without stand)	612 mm
