Sharp LC-40LE700E Service Manual

LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S
7 – 11
2.6. IC501 (VHiBR24C21F-1Y)

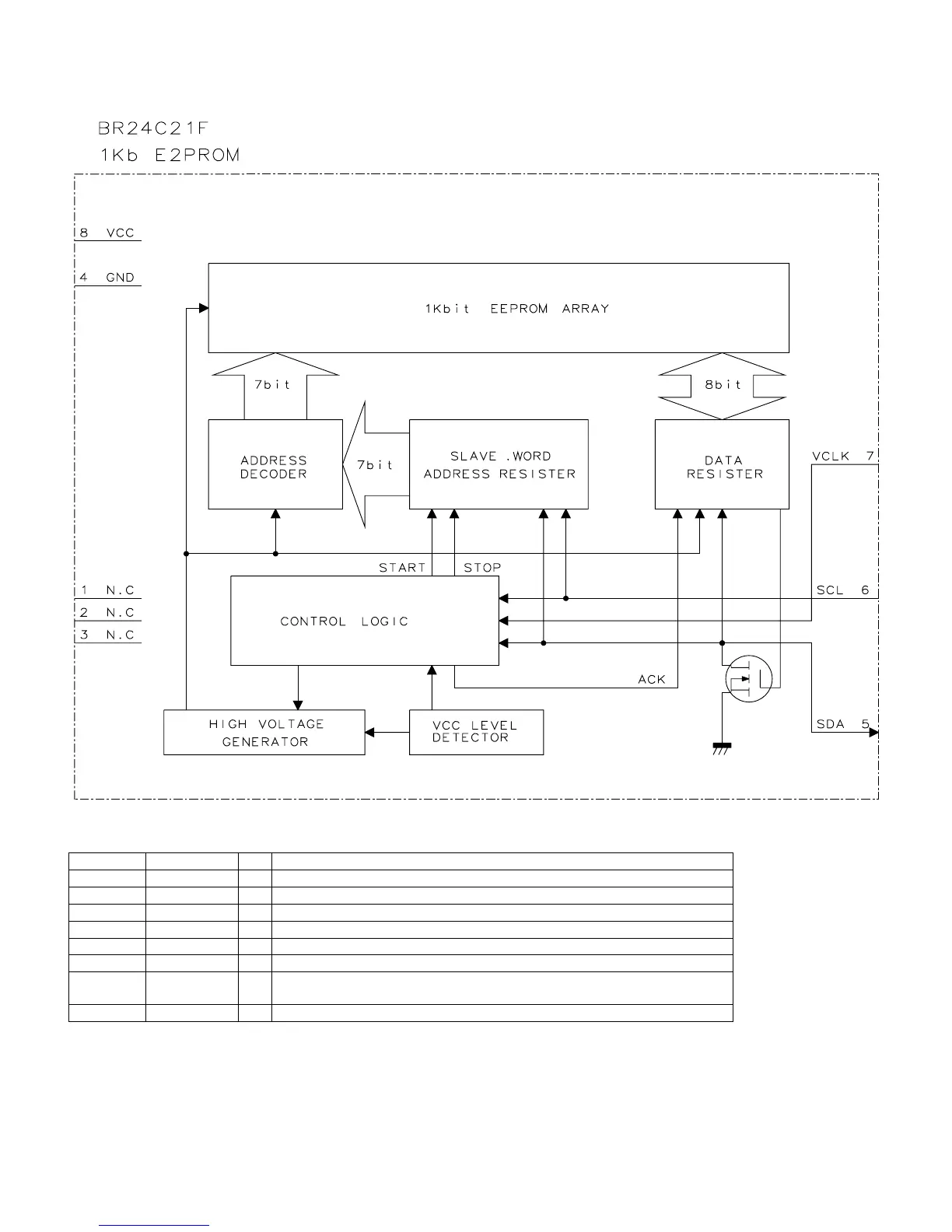

2.6.1 Block Diagram
2.6.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1 N.C I No Connect : No internal electrical connection is present.
2 N.C I No Connect : No internal electrical connection is present.
3 N.C I No Connect : No internal electrical connection is present.
4 GND - Ground
5 SDA I/O Serial data Input/Output
6 SCL I Serial clock input (Bidirectional mode)
7 VCLC I CLCK Input (Transmit only mode )
Write Enable (Bidirectional mode)
8 VCC - Power supply

Sharp LC-40LE700E Specifications

General

Comb filter	3D
Display diagonal	40 \
Display brightness	450 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Native refresh rate	100 Hz
Display diagonal (metric)	102 cm
Viewing angle, horizontal	176 °
Power requirements	AC220V-AC240V/50Hz-60Hz
HDMI ports quantity	4
SCART ports quantity	2
Digital audio optical out	1
Cables included	AC
Product color	Black

Weight and Dimensions

Weight (with stand)	11600 g
Depth (without stand)	93.1 mm
Width (without stand)	964 mm
Height (without stand)	612 mm
