Sharp LC-40LE700E Service Manual

LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S
7 – 24

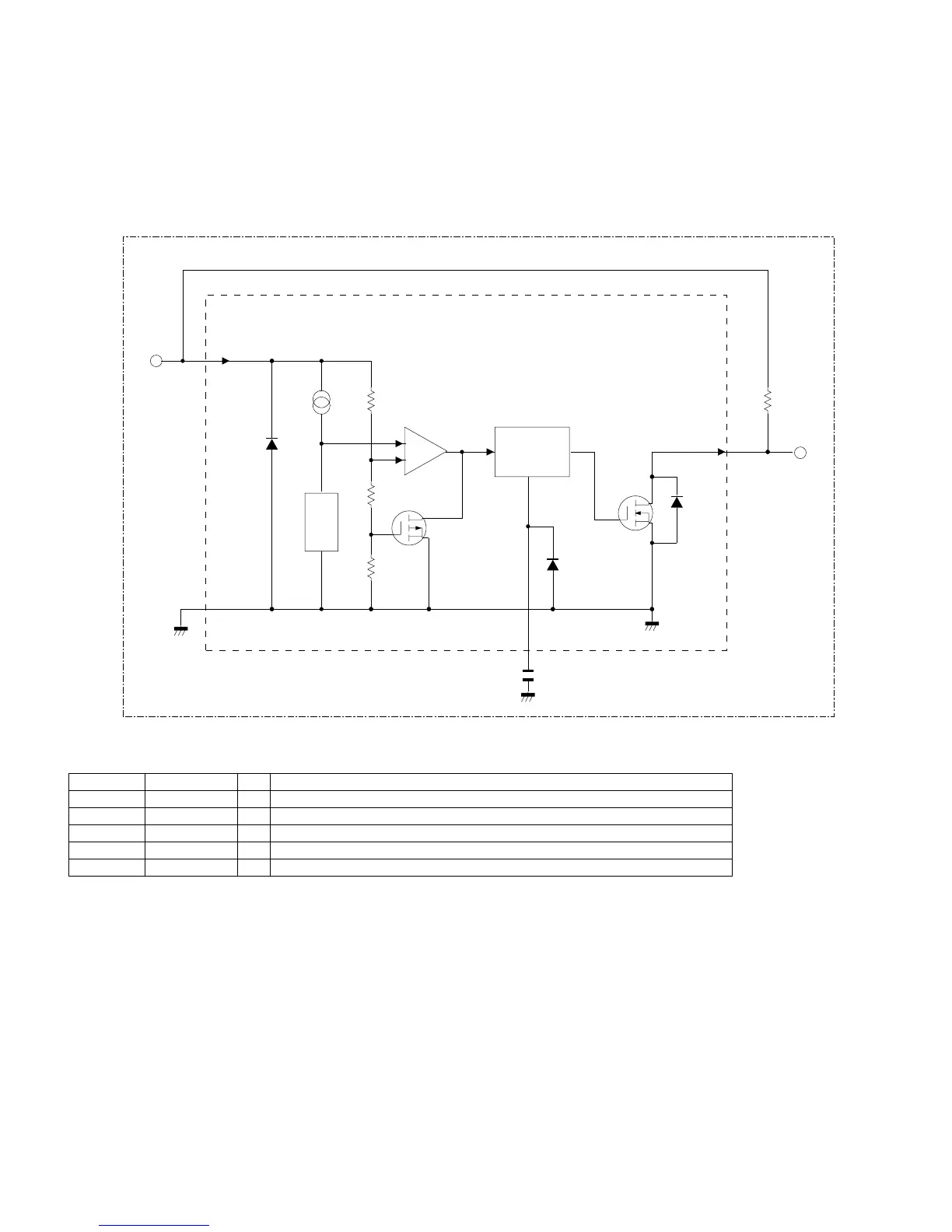

2.17. IC2001 (VHiS80927NM-1Y)
2.17.1 Block Diagram
2.17.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1 OUT O Voltage detection output terminal (RESET detecting voltage)
2 VDD - Voltage input terminal
3 VSS - Ground terminal
4 NC - No connection (It is an opening electrically.)
5 CD I External capacitor connection terminal for delay
S
D
G
-
VSS
OUT
CIRCUIT
VIN
2
DELAY
RESET
OUT
VDD
CD
S80928NM 2.8V
+
VREF
3
5
VOLTAGE-DETECTOR
1
S80927NM 2.7V
S80920NM 2.0V
S80944NM 4.4V

Sharp LC-40LE700E Specifications

General

Comb filter	3D
Display diagonal	40 \
Display brightness	450 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Native refresh rate	100 Hz
Display diagonal (metric)	102 cm
Viewing angle, horizontal	176 °
Power requirements	AC220V-AC240V/50Hz-60Hz
HDMI ports quantity	4
SCART ports quantity	2
Digital audio optical out	1
Cables included	AC
Product color	Black

Weight and Dimensions

Weight (with stand)	11600 g
Depth (without stand)	93.1 mm
Width (without stand)	964 mm
Height (without stand)	612 mm
