LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S

7 – 31

2.21. IC2701 (VHiYDA148QZ-1Y)

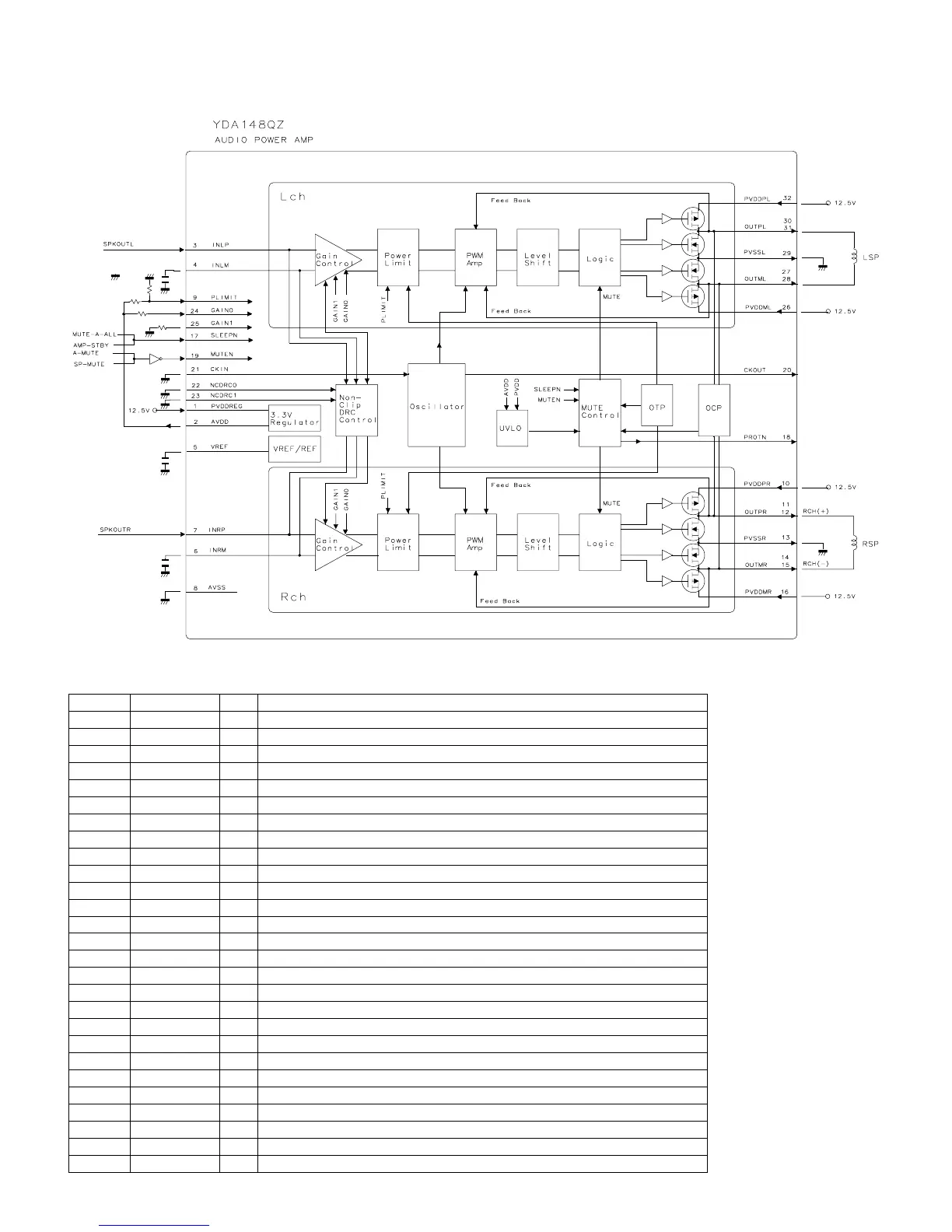

2.21.1 Block Diagram

2.21.2 Pin Connections and short description

Pin No. Pin Name I/O Pin Function

1 PVDDREG - The power supply terminal for regulators (PVDD).

2 AVDD - The output terminal for 3.3V regulators

3 INLP I Analog input terminal (Lch+)

4 INLM I Analog input terminal (Lch-)

5 VREF - VREF Terminal

6 INRM I Analog input terminal (Rch-)

7 INRP I Analog input terminal (Rch+)

8 AVSS - Analog ground terminal

9 PLIMIT I Power limit setting terminal

10 PVDDPR - The power supply terminal for a digital amplifier output (Rch+)

11 OUTPR O Digital amplifier output terminal (Rch+)

12 OUTPR O Digital amplifier output terminal (Rch+)

13 PVSSR - The ground terminal for a digital amplifier output (Rch)

14 OUTMR O Digital amplifier output terminal (Rch-)

15 OUTMR O Digital amplifier output terminal (Rch-)

16 PVDDMR - The power supply terminal for a digital amplifier output (Rch-)

17 SLEEPN I Sleep control terminal

18 PROTN O Error flag output terminal

19 MUTEN I Mute control terminal

20 CKOUT O The clock output terminal for a synchronization

21 CKIN I External clock input terminal

22 NCDRC0 I Non clip / DRC1/DRC2 mode-select terminal 0

23 NCDRC1 I Non clip / DRC1/DRC2 mode-select terminal 1

24 GAIN0 I GAIN setting terminal 0

25 GAIN1 I GAIN setting terminal 1

26 PVDDML - The power supply terminal for a digital amplifier output (Lch-)

27 OUTML O Digital amplifier output terminal (Lch-)
