18
YPB
(
CB)
PR
(
CR)

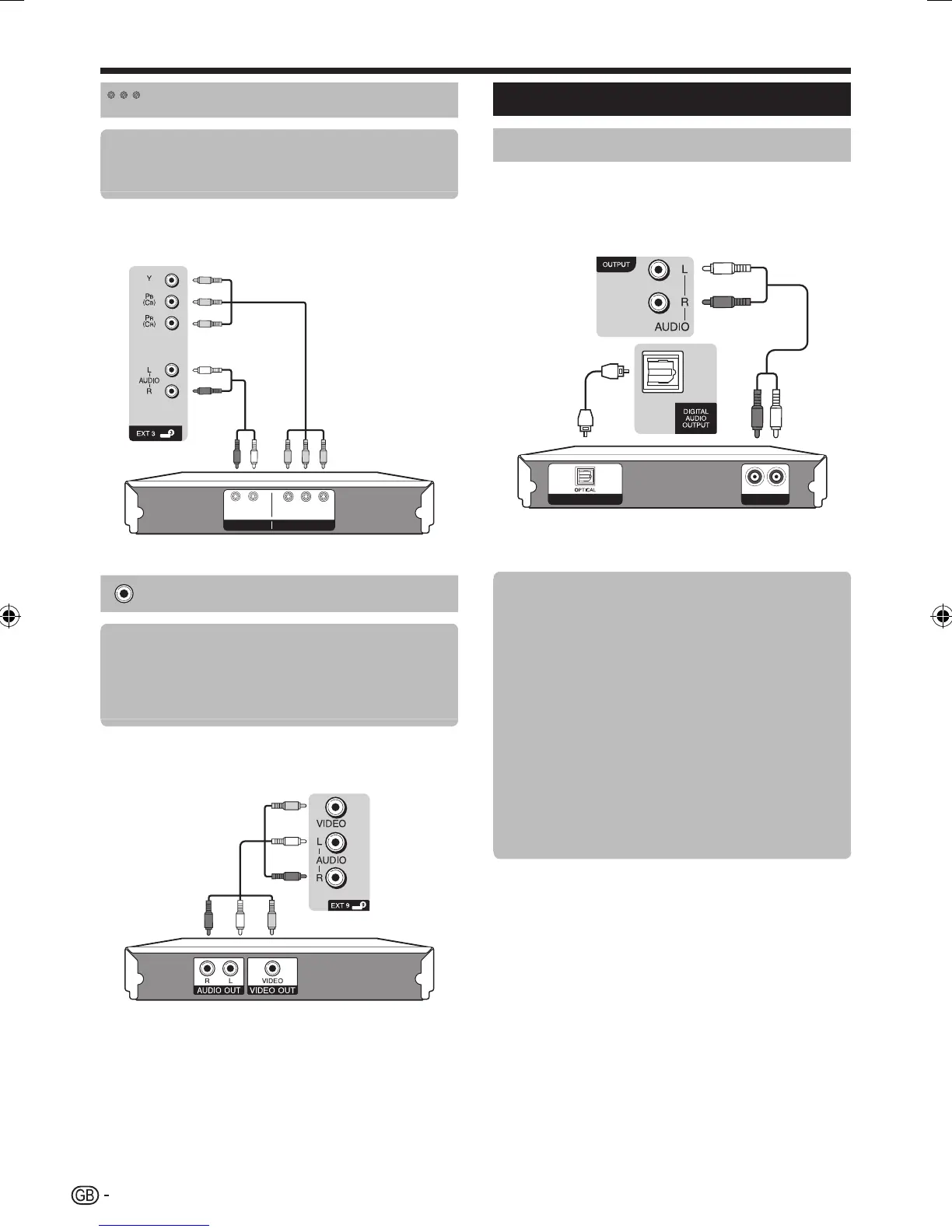

Component connection
Example of connectable devices
VCR
DVD player/recorder
E
E
You will enjoy accurate colour reproduction and high
quality images through the EXT 3 terminal when
connecting a DVD player/recorder or other device.
YPB
(CB)
LRP
R
(CR)
COMPONENTAUDIO
Audio cable Component cable
VIDEO connection
Example of connectable devices
VCR
DVD player/recorder
Game console
Camcorder
E
E
E
E
You can use the EXT 9 terminal when connecting to a
game console, camcorder, a DVD player/recorder or
other device.
AV cable
Audio connections
Speaker/amplifier connection
Connect an amplifier with external speakers as shown
below.
Connecting an amplifier with digital/
analogue audio inputs
DIGITAL AUDIO IN
AUX1 IN
LR
Optical audio cable (for digital audio input)
Audio cable (for analogue audio input)
After connecting
Digital audio output setting
After connecting an amplifier with digital audio
input and external speakers as shown, you should
set an audio output format compatible with
the programme you are watching or the device
connected.
Go to “MENU” > “Option” > “Digital
audio output” > select “PCM” or “Dolby
Digital”.
NOTE
When set to “Dolby Digital”, Dolby Digital is output when
the Dolby Digital or Dolby Digital Plus audio formats are
received. When set to “PCM”, PCM is output no matter
what audio formats are received.
E
•
E
Connecting external devices
LC-LE705E_GB.indd 18LC-LE705E_GB.indd 18 2009/10/09 14:13:032009/10/09 14:13:03
