STEP2.ConnectDevicestoyourTV
Check to ensure that you have selected the right cables for the ports and that they are connected securely. Loose connections can affect the
quality of the picture image and color.

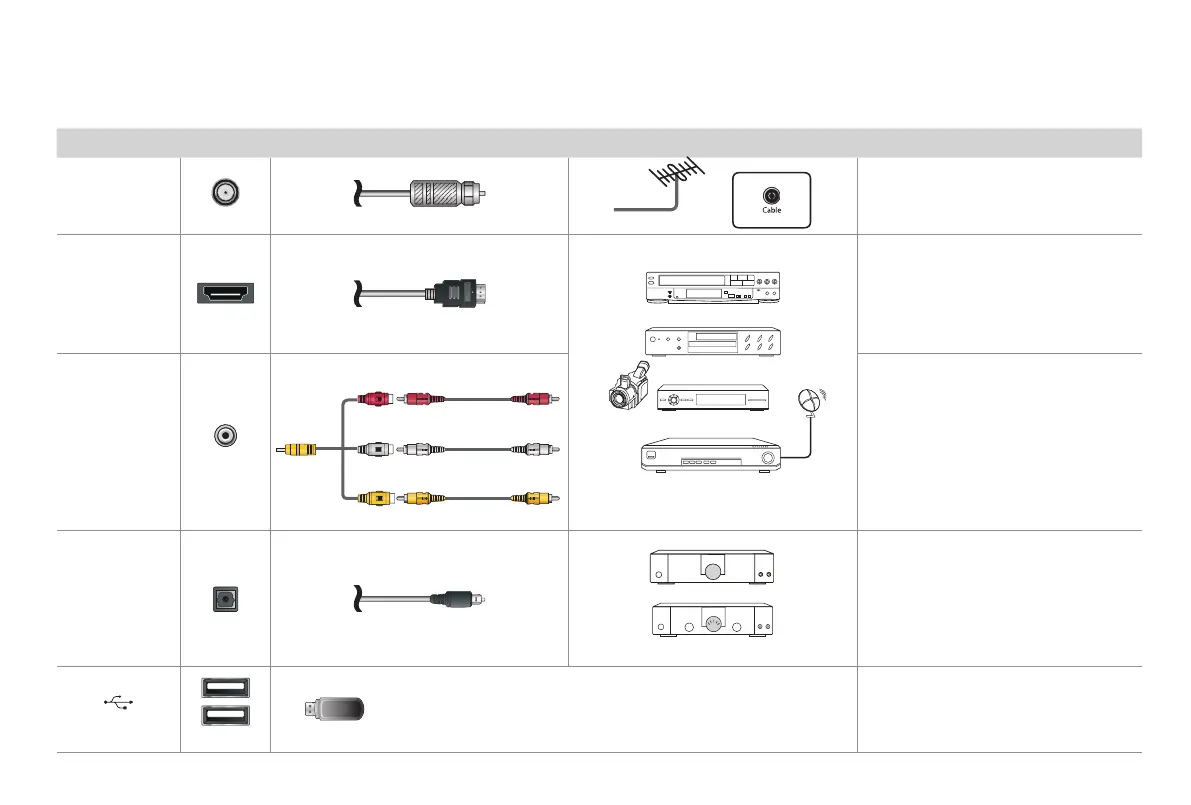

TV label Port Cable External Equipment Brief Description
ANT/CABLE
Antenna
VHF/UHF Antenna
ANT OUT
Connect an outdoor VHF/UHF antenna.
HDMI
DVD Player/Recorder
Set-top Box
Satellite Receiver
Satellite
antenna
cable
VCR
Video
Camera
Connect a High Definition Multimedia
Interface (HDMI) cable from an external
device.
AV IN
White(L)
Red(R)
Yellow(Video)
Connect a composite video cable and
left-right audio cables from an external
AV device.
DIGITAL AUDIO
OUT
Digital Sound Bar
Audio Amplier
Connect an optical cable from an
external digital audio system.
USB
Connect a USB device for browsing
photos, music and movies.
The unit only recogonizes a USB
Memory Stick.
