12
Connections
CONNECTIONS
L (white)
R (red)
Video
(green)
Scart
Scart
AV in

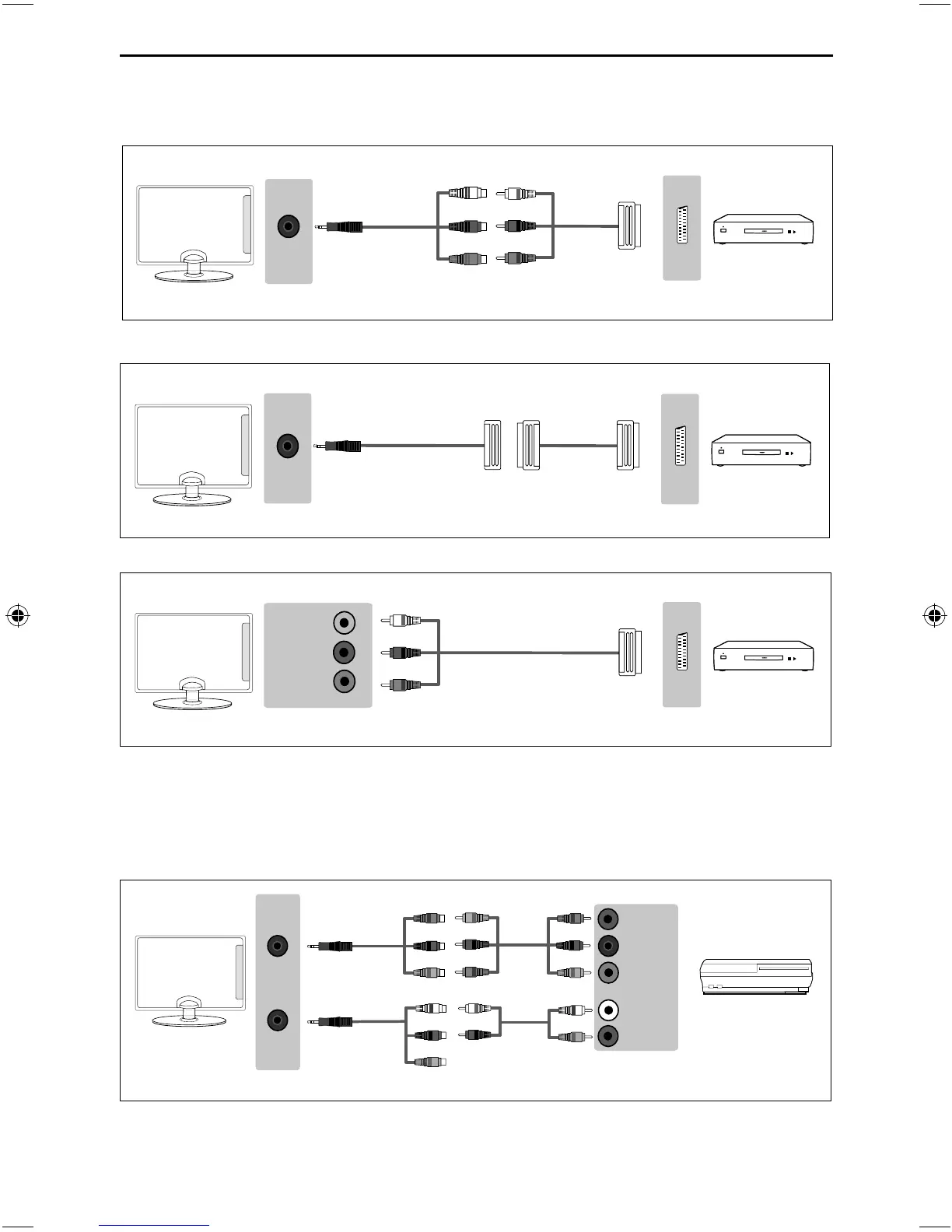

Connection example for TV models with Mini-AV input (2)
Connection example below for TV models with L/R Audio and Video inputs
Connecting to a device with Component/YPbPr output
If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors
you must connect via Component (for picture) and by phono cable (for sound). TV source should be set
to Component/YPbPr
AV in
YPbPr
Y (green)
PB (blue)
PR (red)
Video (yellow)
is not connected
R (red)
L (white)
Connection example for TV models with Mini-YPbPr and Mini-AV inputs
Scart
AV in
Connection example for TV models with Mini-AV input (1)
UNI - User Guide - Sharp SMART UHD LED TV with Freeview HD models.indd Sec1:12UNI - User Guide - Sharp SMART UHD LED TV with Freeview HD models.indd Sec1:12 27/03/2018 15:46:5027/03/2018 15:46:50
