Sharp LC-42LB261U Service Manual

32″&42″&50″LCD TV Best Buy LC-32LB261U- LC-42LB261U- LC-50LB261U

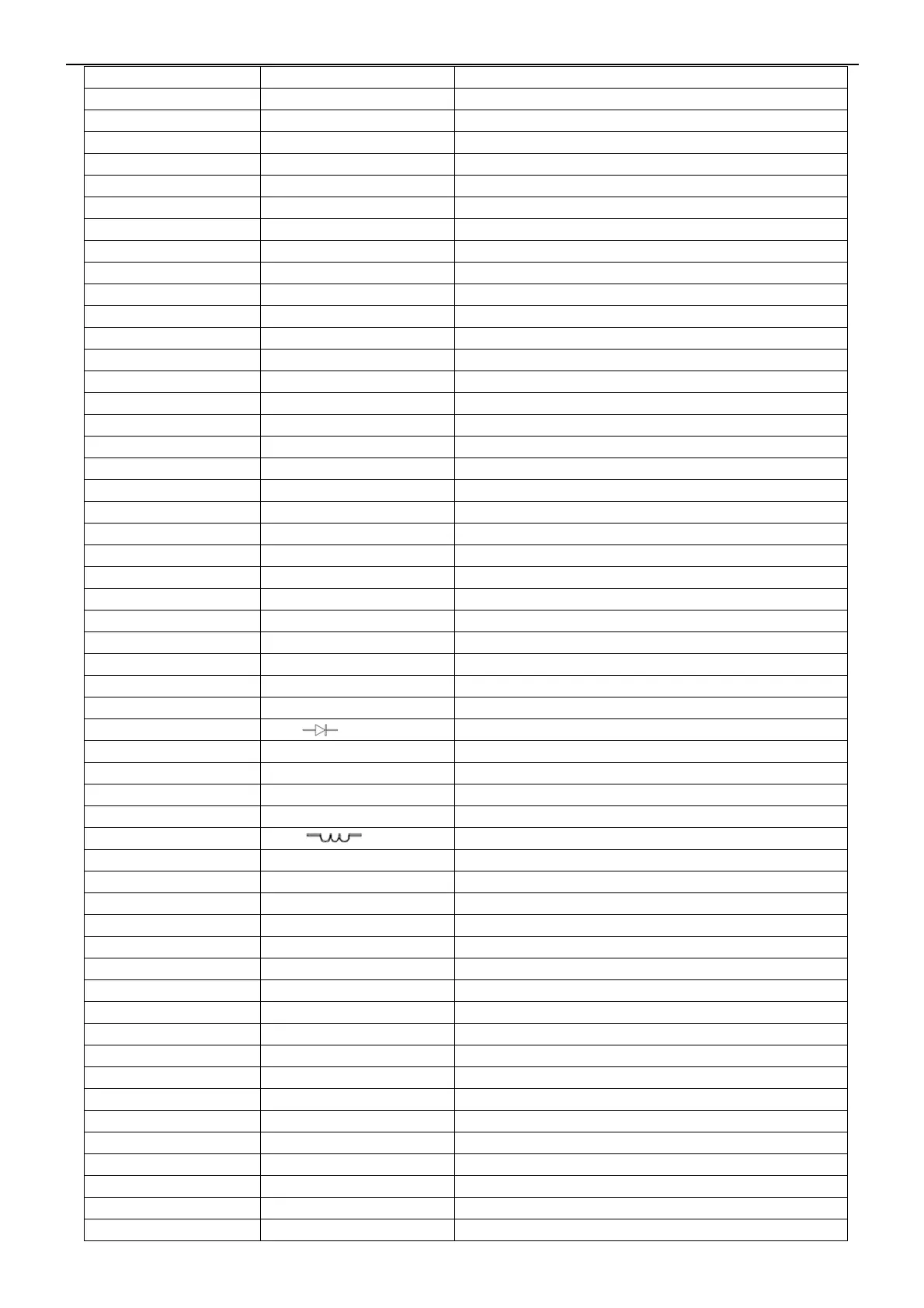

102
C608 065G060333332K F CAP CHIP 0603 33NF K 50V X7R
C753 065G060347332K F CAP CHIP 0603 47NF K 50V X7R
C729 065G060347412K T CAP CHIP 0603 0.47UF K 16V X7R
C744 065G0603475A5K A CAP 0603 4.7UF 10% 10V X5R CL10A475KP8NN
C750 065G0603475A5K A CAP 0603 4.7UF 10% 10V X5R CL10A475KP8NN
C150 065G0603475A5K A CAP 0603 4.7UF 10% 10V X5R CL10A475KP8NN
C508 065G0603475A5K A CAP 0603 4.7UF 10% 10V X5R CL10A475KP8NN
C507 065G0603475A5K A CAP 0603 4.7UF 10% 10V X5R CL10A475KP8NN
C639 065G0603475A5K A CAP 0603 4.7UF 10% 10V X5R CL10A475KP8NN
C169 065G060356931D Y CAP CHIP 0603 5P6 50V NP0 +/-0.5PF
C606 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C614 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R
C724 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C717 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C739 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C120 065G0805106A5K A CAP 0805 10UF 10% 10V X5R
C734 065G080522605M A CAP 0805 22UF 20% 6.3V X5R
C607 065G080533432K F CAP 0805 330NF 10% 50V X7R
C611 065G080533432K F CAP 0805 330NF 10% 50V X7R
C619 065G080533432K F CAP 0805 330NF 10% 50V X7R
C615 065G080533432K F CAP 0805 330NF 10% 50V X7R
C725 065G080547605M T CAP 0805 47UF 20% 6.3V X5R
C791 065G120610622K M CAP 1206 10UF 10% 25V X7R
C174 065G120610625K A CAP 1206 10UF 10% 25V X5R
C789 065G120622615K M AP CHIP 1206 22UF K 16V X5R
C183 065G120622615K M AP CHIP 1206 22UF K 16V X5R
C778 367G311X221FLT EC SMD 220UF 20% 25V 8X10.2 5000 HR 0.6
C793 367G311X221FLT EC SMD 220UF 20% 25V 8X10.2 5000 HR 0.6
C794 367G311X221FLT EC SMD 220UF 20% 25V 8X10.2 5000 HR 0.6
C106 367G311X221FLT EC SMD 220UF 20% 25V 8X10.2 5000 HR 0.6
DIODE
D102 093G 64 33 SWITCHING BAV99 0.2A 85V SOT-23
D601 093G 6432P LL4148
ZD507 093G 60515 L SCHOTTKY LBAT54CLT1G 0.2A 30V SOT-23
ZD120 093G 60S902 T DIODE BAT54 SOT-23 PHILIPS
COIL&FILTER
FB401 061G0402000 JT RST 0402 0.05R MAX 1/16W -
FB602 061G0402000 JT RST 0402 0.05R MAX 1/16W -
FB603 061G0402000 JT RST 0402 0.05R MAX 1/16W -
FB605 071G 59G301 TA CHIP BEAD 300OHM 200MA FCM1608KF-301T02
FB604 071G 59G301 TA CHIP BEAD 300OHM 200MA FCM1608KF-301T02
FB101 071G 59S102 M CHIP BEAD 0603 1000OHM MICROGATE
L107 073G 63228 TA CHIP INDUCTOR 0.22UH 10% 0.8R
L106 073G 63228 TA CHIP INDUCTOR 0.22UH 10% 0.8R
L703 073G253S 87 H SMD CHOKE 10UH 20% 0.0327R 3.9A
L102 073G253S 87 H SMD CHOKE 10UH 20% 0.0327R 3.9A
L105 373G0402277FJM CHIP IND 27NH 5% 300MA 0.7OHM MGCI1005T
L103 373G0402277FJM CHIP IND 27NH 5% 300MA 0.7OHM MGCI1005T
L104 373G0402826FJM CHIP IND 8.2NH 5% 0.3A 0.35R MGCI1005T8
L602 373G253S173Y00 SMD CHOKE 47UH 20% 1.1A 0.22R NR6045T47
L601 373G253S173Y00 SMD CHOKE 47UH 20% 1.1A 0.22R NR6045T47
L603 373G253S173Y00 SMD CHOKE 47UH 20% 1.1A 0.22R NR6045T47
L604 373G253S173Y00 SMD CHOKE 47UH 20% 1.1A 0.22R NR6045T47
L701 373G253S198D00 SMD CHOKE 4.7UH 20% 3.3A 0.026R SWPG604
