Connections

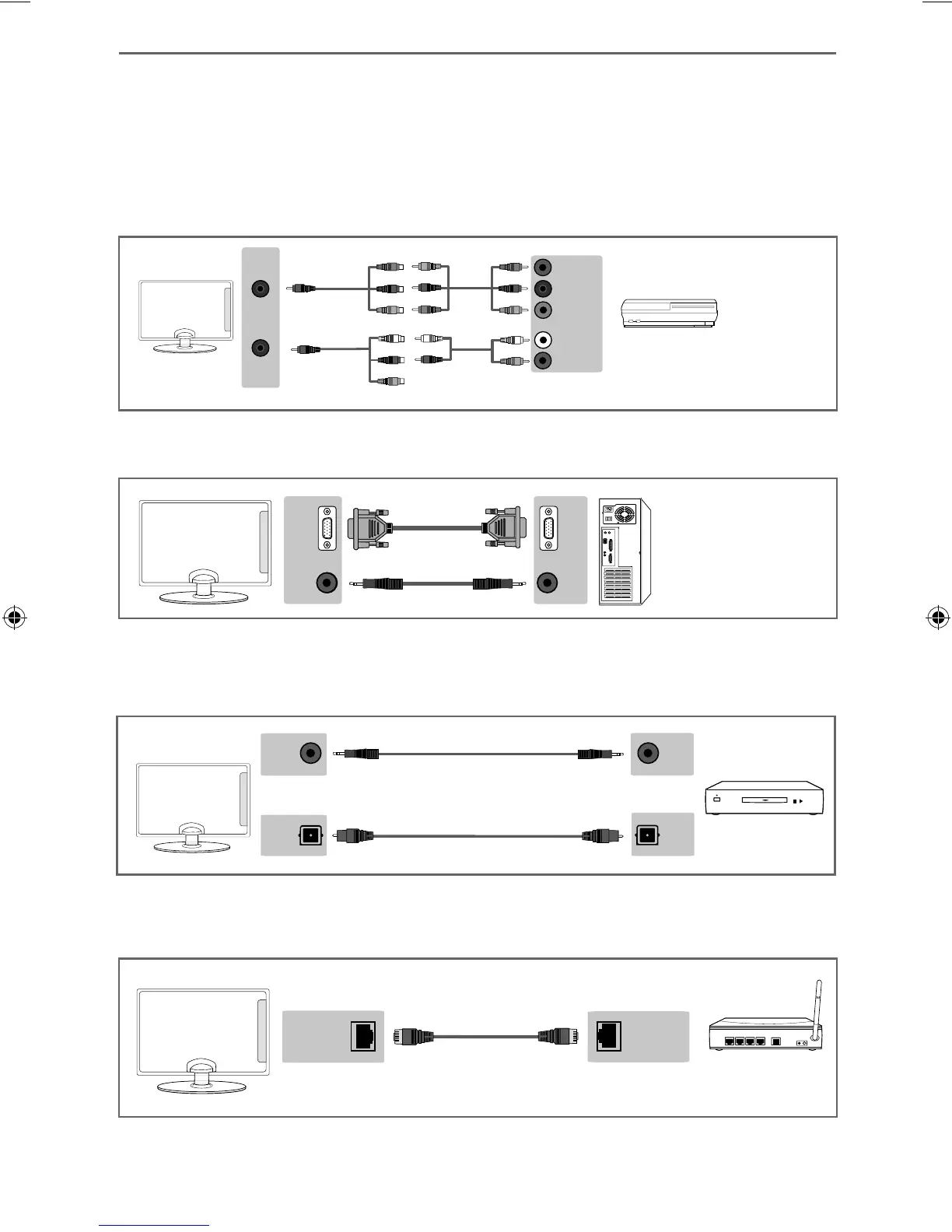

CONNECTIONS
Connecting to a device with Component/YPbPr output
If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors
you must connect via Component (for picture) and by phono cable (for sound).
TV source should be set to Component/YPbPr
Mini
AV in
Mini
YPbPr
Y (green)
PB (blue)
PR (red)
Video (yellow)
is not connected
R (red)
L (white)
Connecting to an external audio device (Amplifi ers, Surround Sound,
Sound Bars etc)
When connecting via the TV’s 3.5mm earphone output, this will disable the TV speakers.
3.5mm
earphone
OPTION 1 for 3.5mm EARPHONE Output
OPTION 2 for Digital Optical Audio Output
Digital
audio
out
(optical)
3.5mm
audio
in
Digital
audio
in
(optical)
Connecting to a device with VGA/PC output (Laptop or Desktop Computer)
TV source should be set to VGA/PC
VGA/PC
in
VGA/PC
out
VGA/PC
(audio
in)
Audio
out
Connecting an Ethernet/Network cable
The LAN/Ethernet port is used for Freeview HD services only.
Ethernet
port
Ethernet
port
