4 SOUND
SOURCE: Current input source. (use for change source)
SOUND MODE: Standard sound setting (Like EQ treble bass) for dierent Sound
mode .It will change Sound menu’s standard sound mode setting.
EQ: sound in dierent frequency range value.
VOLUME CURVE: Volume curve. At least ten steps is adjustable. To set sound
value from 1 to 100 corresponding actual nonline curve value. It will change
current sound actual value. For example, TAB_50 is 925, that’s on the sound
OSD page, use key vol+/- to adjust the value to 50, the volume is 925.
VOLUME SETTINGS: setting AVL mode and threshold ...etc. AVD: auto volume
control. Vol PreScale DTV... SCART: Set dierent source’s sound value.
PEQ: Adjust the audio eect by dierent frequency range. EQ: sound in dierent frequency
range value. PEQ: more frequency range than EQ;
5 PANEL
Backlight: It’s for adjusting the non-eco and eco backlight.
Depends on which mode is selected in OSD.
Lvds Map ID: Modify this according to your panel. It is the combination
of the TI Mode, Color Bits, Swap Port and Output Bit.
Lvds TI Mode: Have VESA/JEICA mode. It’s related to Lvds Map.
Lvds Color Bits: Set lvds data interface type. (6bit/8bit/10bit).
Lvds Swap Port: Lvds A/B Port data swap.
Lvds Output Bit: Set lvds data output type. (6bit/8bit/10bit).
PWM Freq: Modify PWM frequency
PWM Fraq Step: The speed when you modify PWM Freq value.
Mirror: mirror TV. Switch your screen upside down.

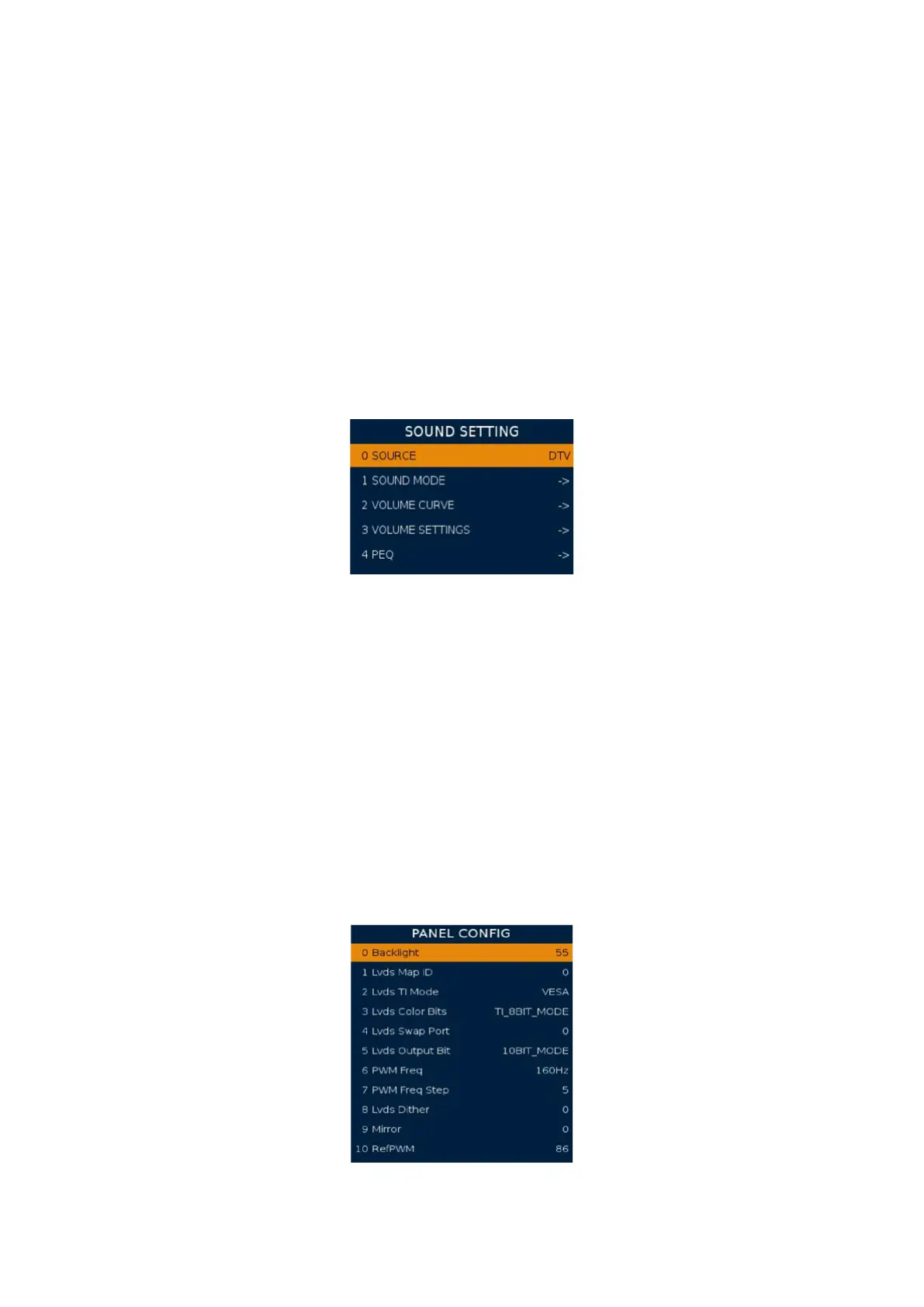

Picture 3 Sound Setting
Picture 4 Panel Cong

Sharp LC-43CFE6131K Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	43 \
Display brightness	300 cd/m²
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Contrast ratio (dynamic)	1000000:1
Motion interpolation technology	AMR (Active Motion Rate) 200
3D	No
News apps	BBC
Voltage tolerance	20 %
Annual energy consumption	60 kWh
Power consumption (average)	41 W
On/off switch	-
Product color	Black
Panel mounting interface	400 x 200 mm
Tuner type	Analog & digital
Analog signal format system	SECAM, PAL
Digital signal format system	DVB-T, DVB-T2, DVB-C
Video apps	YouTube
Sports apps	BBC Sports
Lifestyle apps	Facebook, Twitter
Audio decoders	Dolby Digital, DTS, DTS 2.0, Dolby Digital Plus
RMS rated power	16 W
Number of speakers	2
HDMI ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Consumer Electronics Control (CEC)	Aquos Net+
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (max)	70 W
Power consumption (standby)	0.5 W
Power consumption (typical)	50 W

Weight and Dimensions

Depth (with stand)	184.4 mm
Height (with stand)	596.4 mm
Weight (with stand)	8000 g
Depth (without stand)	67.1 mm
Width (without stand)	965.9 mm
Height (without stand)	558.3 mm
Weight (without stand)	7800 g
