Sharp LC-43CFE6131K Service Manual

87
6.4 TFTP (network) Upgrade
A Upgrade Tools

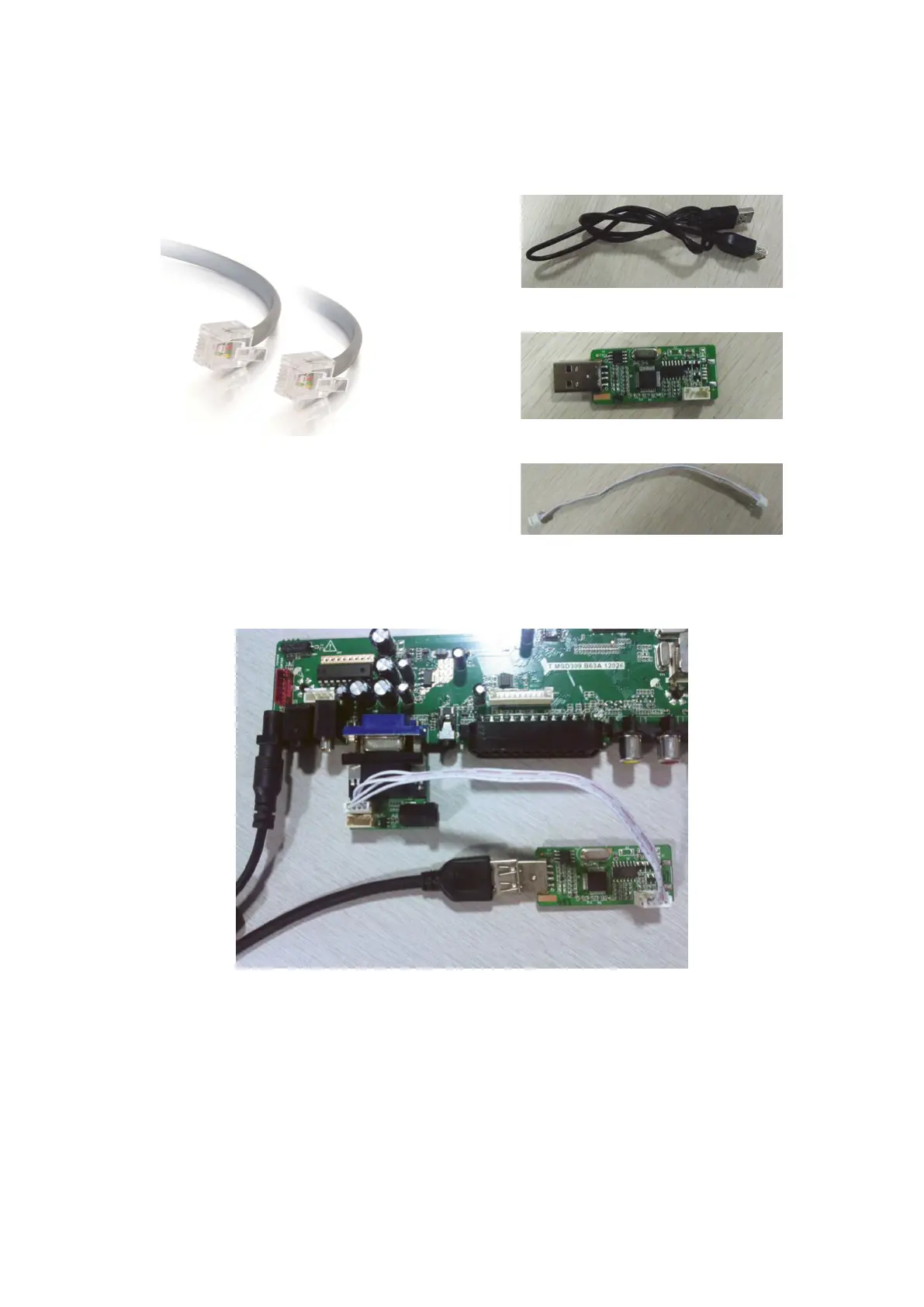

B Connection Mode
Connect main board net port and PC net port with network cable.
Connect main board VGA port and PC USB port with serial port cable.
Serial port board B.CNSISP7A
4PIN converted cable
Connect the Serial port boardand VGA convert board as shown below:
USB extension cordnetwork cable

Sharp LC-43CFE6131K Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	43 \
Display brightness	300 cd/m²
Native aspect ratio	16:9
LED backlighting type	Direct-LED
Contrast ratio (dynamic)	1000000:1
Motion interpolation technology	AMR (Active Motion Rate) 200
3D	No
News apps	BBC
Voltage tolerance	20 %
Annual energy consumption	60 kWh
Power consumption (average)	41 W
On/off switch	-
Product color	Black
Panel mounting interface	400 x 200 mm
Tuner type	Analog & digital
Analog signal format system	SECAM, PAL
Digital signal format system	DVB-T, DVB-T2, DVB-C
Video apps	YouTube
Sports apps	BBC Sports
Lifestyle apps	Facebook, Twitter
Audio decoders	Dolby Digital, DTS, DTS 2.0, Dolby Digital Plus
RMS rated power	16 W
Number of speakers	2
HDMI ports quantity	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	1
Consumer Electronics Control (CEC)	Aquos Net+
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (max)	70 W
Power consumption (standby)	0.5 W
Power consumption (typical)	50 W

Weight and Dimensions

Depth (with stand)	184.4 mm
Height (with stand)	596.4 mm
Weight (with stand)	8000 g
Depth (without stand)	67.1 mm
Width (without stand)	965.9 mm
Height (without stand)	558.3 mm
Weight (without stand)	7800 g
