Connections

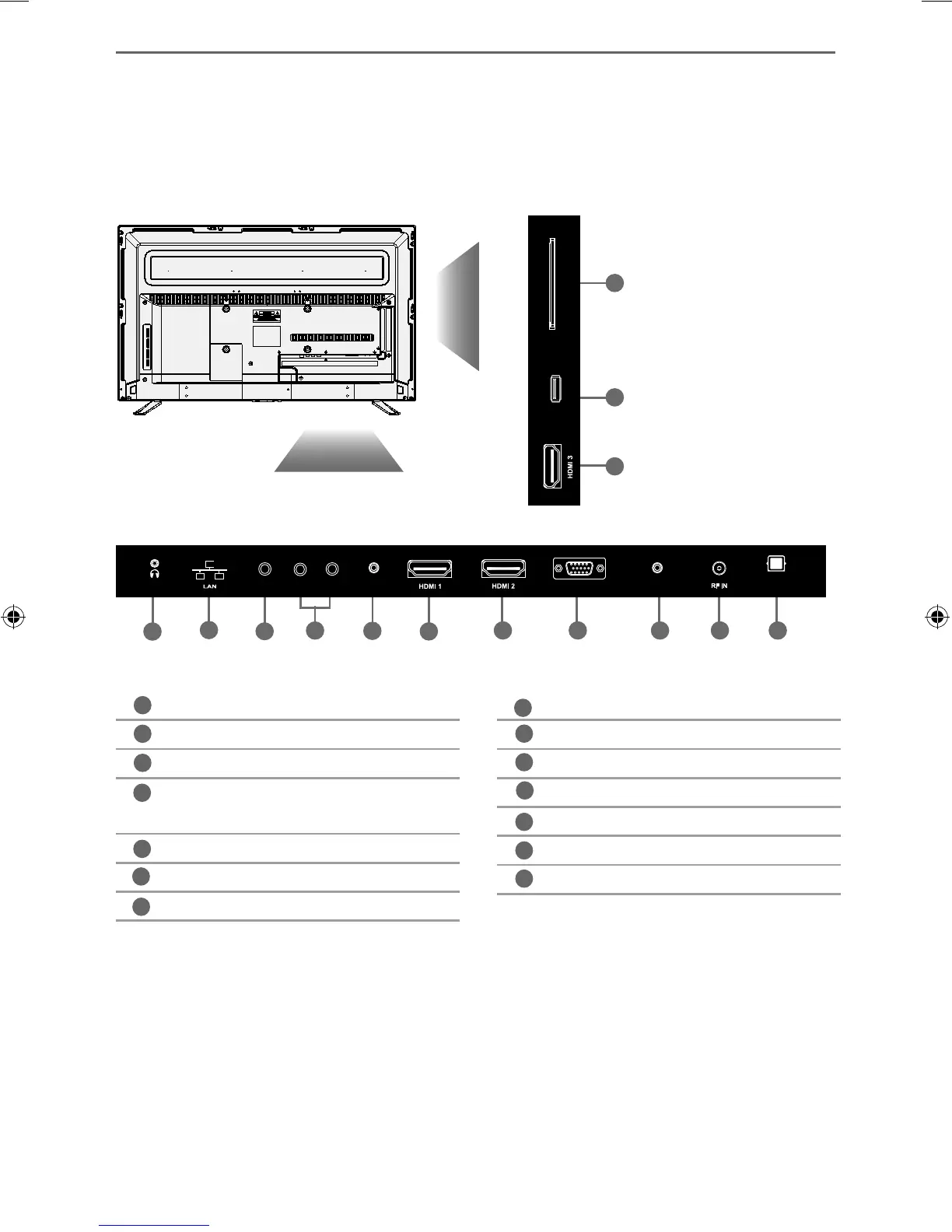

CONNECTIONS
A
C
D
E
F
GH
I
J
K
L
M
N
B
Earphones Earphone input
LAN* Network connection
Video Video input
YPbPr HD input (Ypbpr)
HDMI 1 HDMI input
HDMI 2 HDMI input (ARC)
VGA PC VGA-PC Input
VGA PC audio in 3.5mm PC audio input
RF in RF / TV aerial input
Digital audio Digital optical audio output
HDMI 3 HDMI input
USB USB port
CI card in Common interface module
A
I
L
B
J
M
N
C
D
E
F
G
H
K
EARPHONE
Y Pb Pr
VGA/PC (A udio in)
VGA/PC IN
VIDEO
R
L
Digital Audio
Output
USB
CI CARD IN
*The LAN/Ethernet port is used for Freeview HD services and smart functions.
R/L Audio shared for
Video/Composite and
component/ YPbPr
R/L
Input/Outputs for the LC-32CFE6131K.
