Sharp LC-46SB57U User Manual

LC-46SB57U/LC-52SB57U
4 – 10

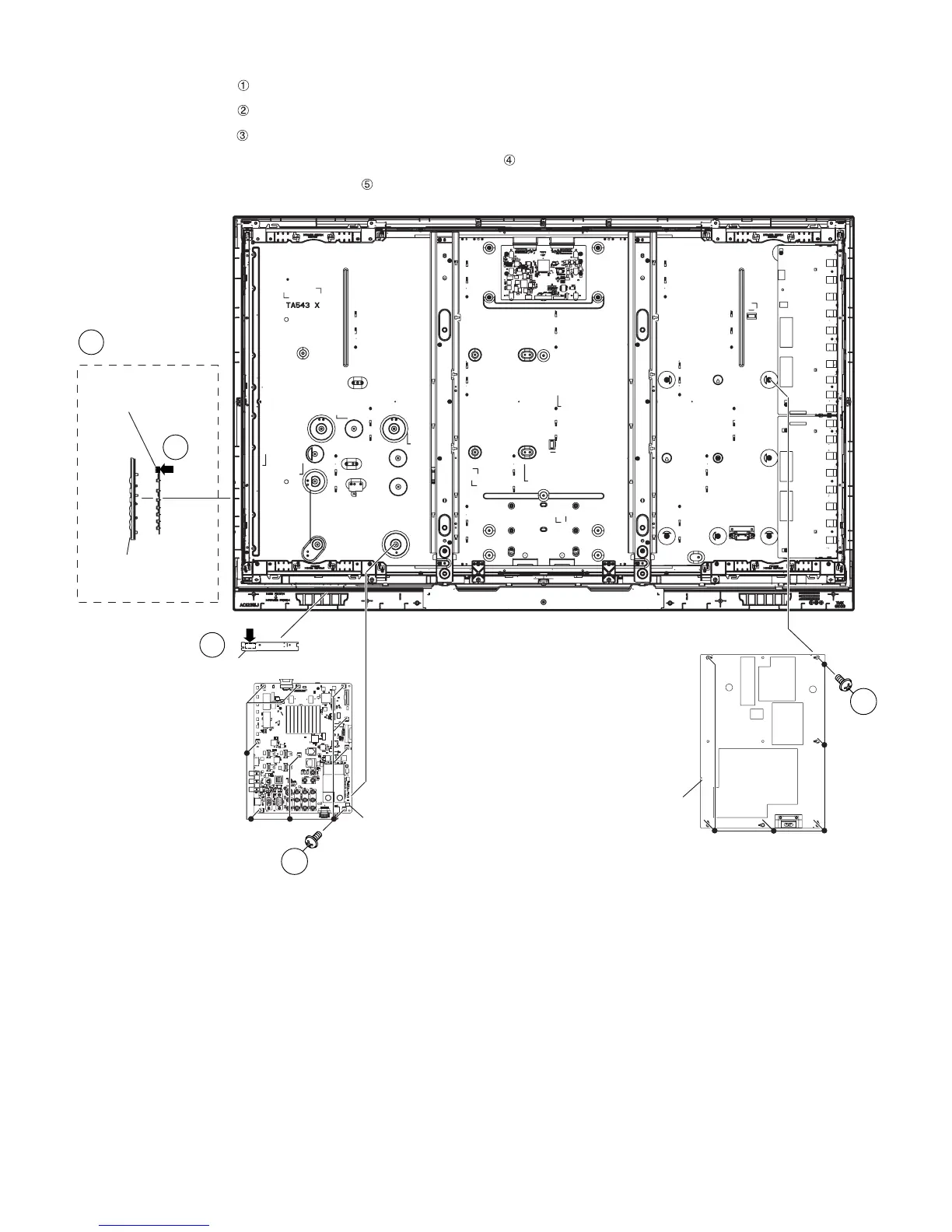

4. Removing of POWER Unit, MAIN Unit, KEY Unit Ass’y and R/C, LED Unit.
1. Remove the 6 lock screws and detach the POWER Unit.
2. Remove the 9 lock screws and detach the MAIN Unit.
3. Detach the KEY Unit Ass’y .
4. Detach the KEY Unit from KEY Button Cover Ass’y and disconnect KM wire .
5. Detach the R/C LED Unit and disconnect RA wire .
2
MAIN Unit
R/C, LED Unit
KEY Unit
KEY Unit Ass'y
KEY Button
Cover Ass'y
3
5
4
KM
RA
POWER Unit
1
