10

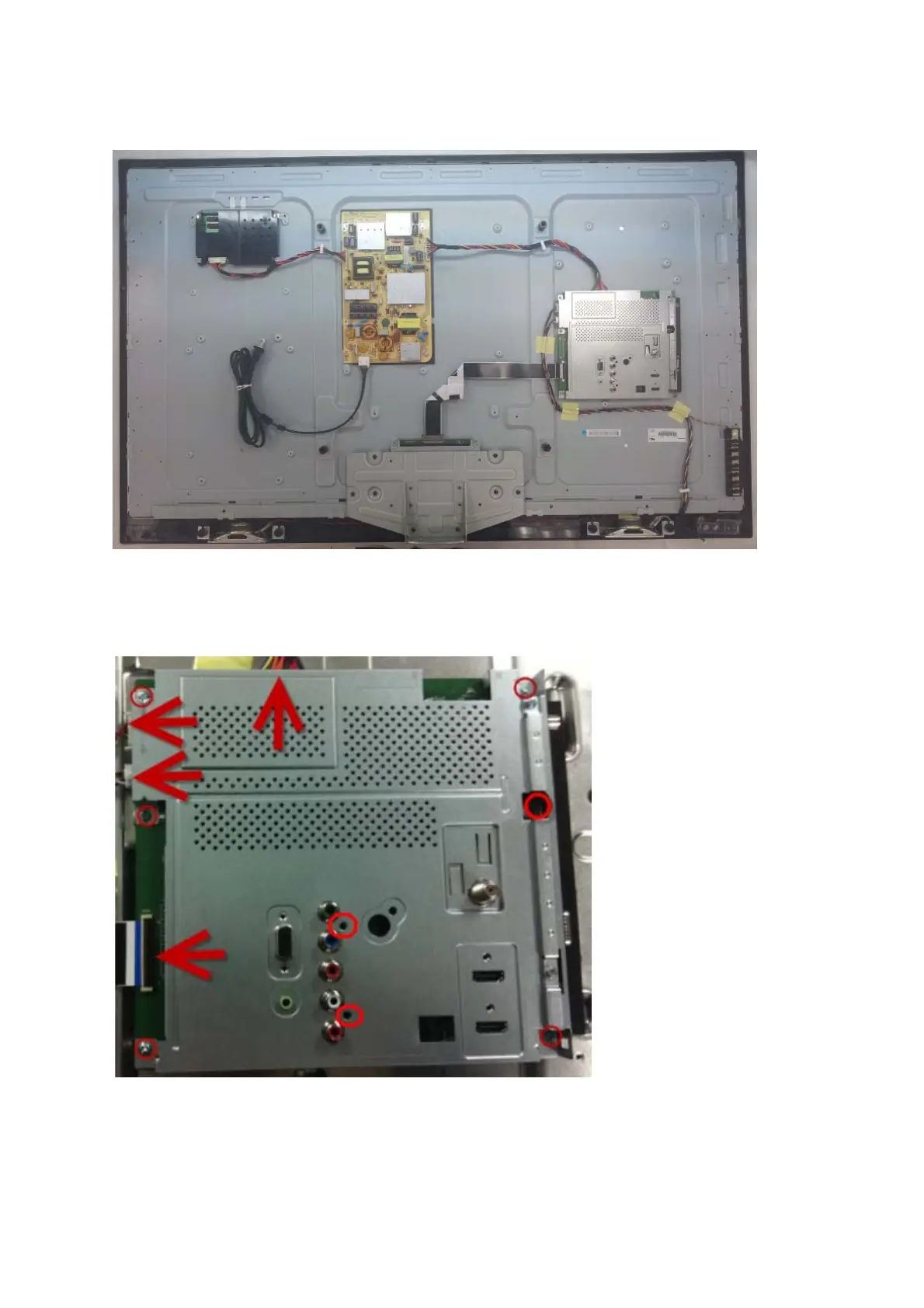

Step3. Remove the Main, Power, IR board, Key Pad ASSY, and the Speakers.
Fig.8
1. Remove the 8 screws and disconnect 4 cables .Detach the Main board ASSY
as Fig.9
Fig.9
