LC-39/50LE750

LC-39/50LE751

LC-39/50LE752

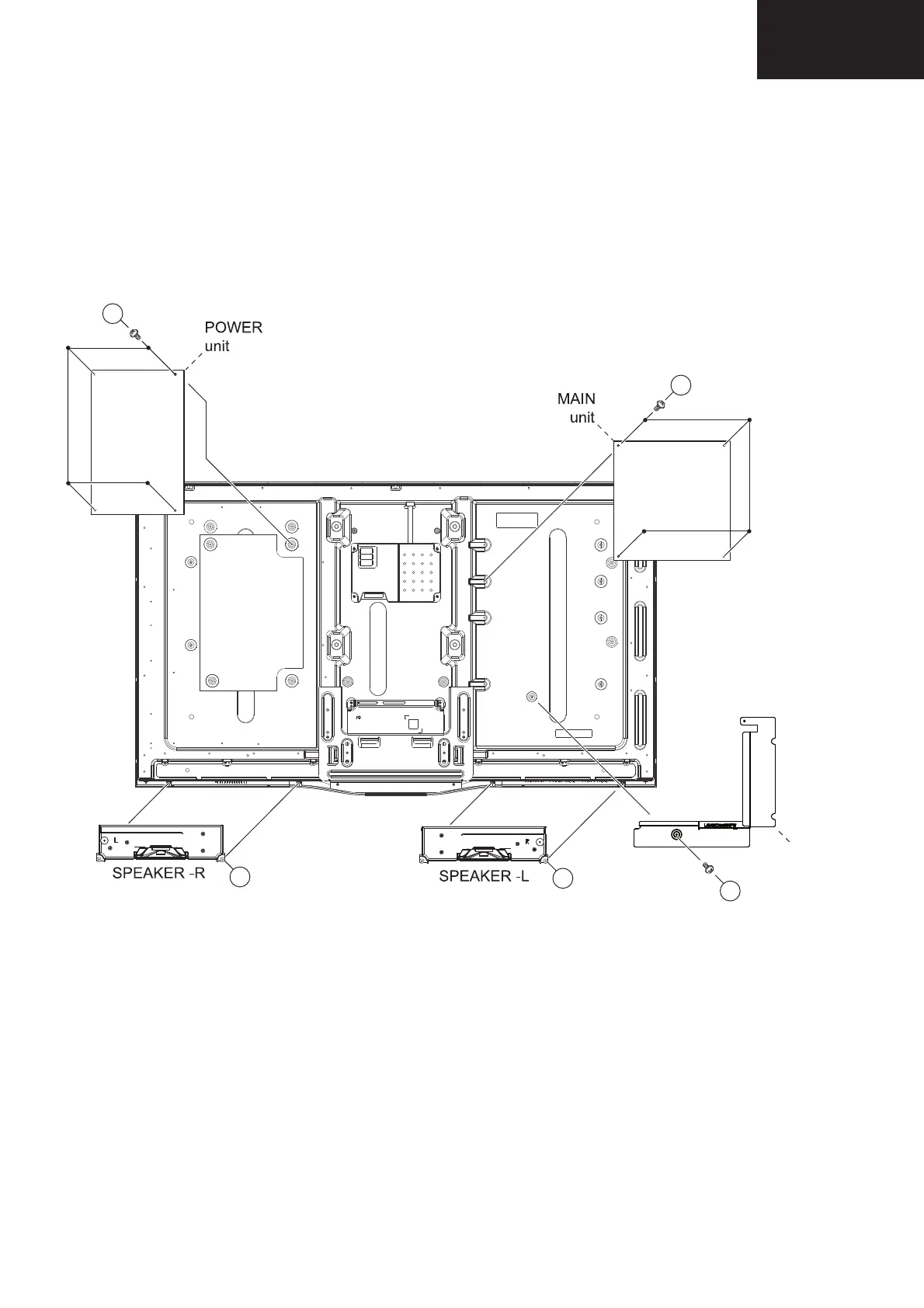

1. Removing of major Parts 39” (Continued)

1.4. Remove the 4 lock screws  and detach the POWER unit.

1.5. Remove the 4 lock screws  and detach the MAIN unit.

1.6. Remove the 1 lock screw  and detach the terminal BRACKET.

1.7. Remove the SPEAKER-L  and SPEAKER-R .

terminal

BRACKET
