LC-40/46/52/60LE835U/830U/832U/LC-60LE831U
4 – 3

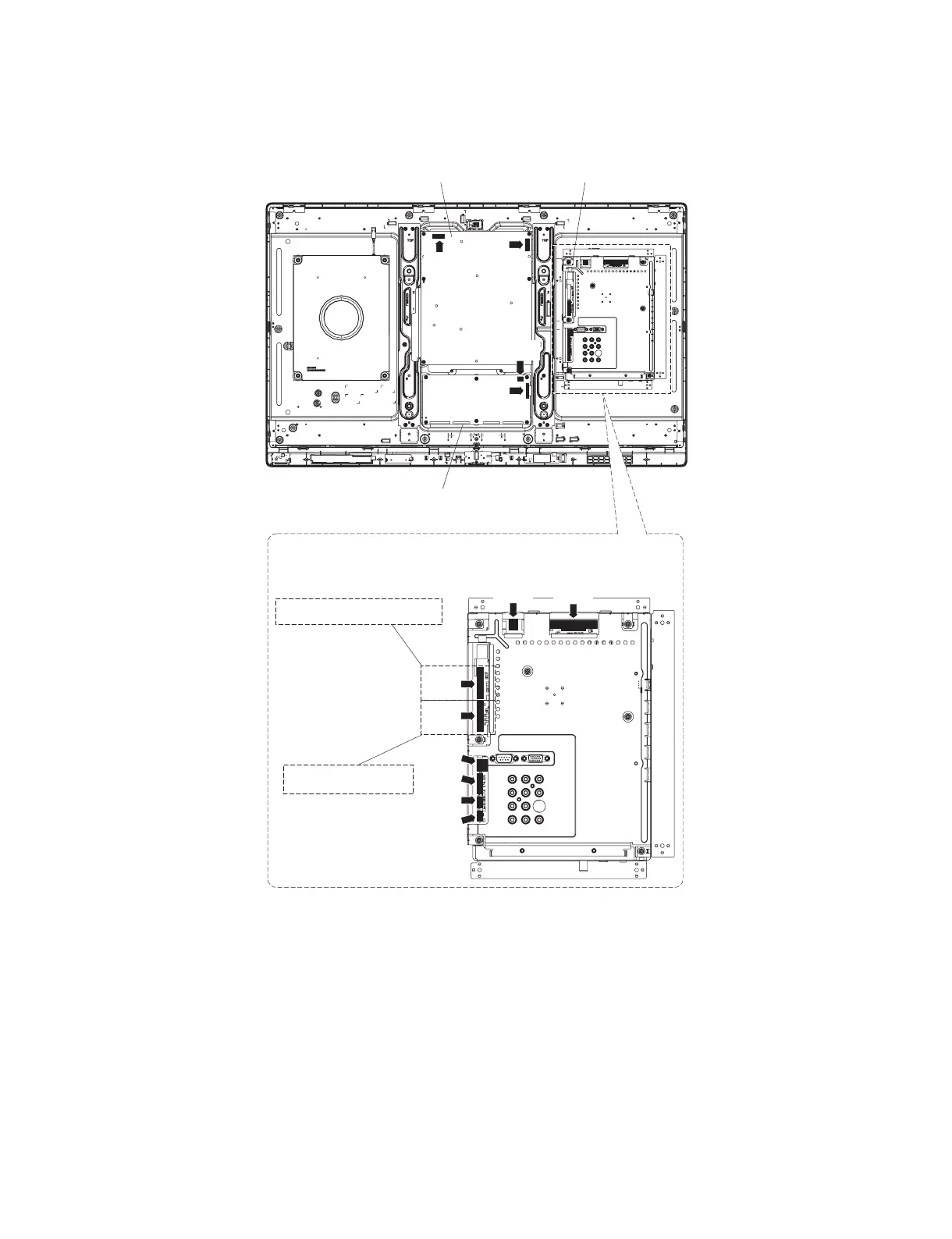

3. Removing of Connectors
1. Disconnect the following connectors from the MAIN Unit. (SB, PD, LW (LC-40LE835U), PL, RC, Cl, UB, LV (LC-40LE830U/832U))
2. Disconnect the following connectors from the POWER/LED Drive Unit. (PD, L1)
3. Disconnect the following connectors from the LCD Control Unit. (LW, PL)
LCD Control Unit
MAIN UnitPOWER/LED Drive Unit
[LW]
[PD]
[L1]
[PL]
MAIN Unit
[SB]
[PD]
[UB]
[CI]
[RC]
[PL]
[LW]
LC-40LE830U/832U
[LV]
LC-40LE835U
To Next Page
