LC-60C52U
4 – 2

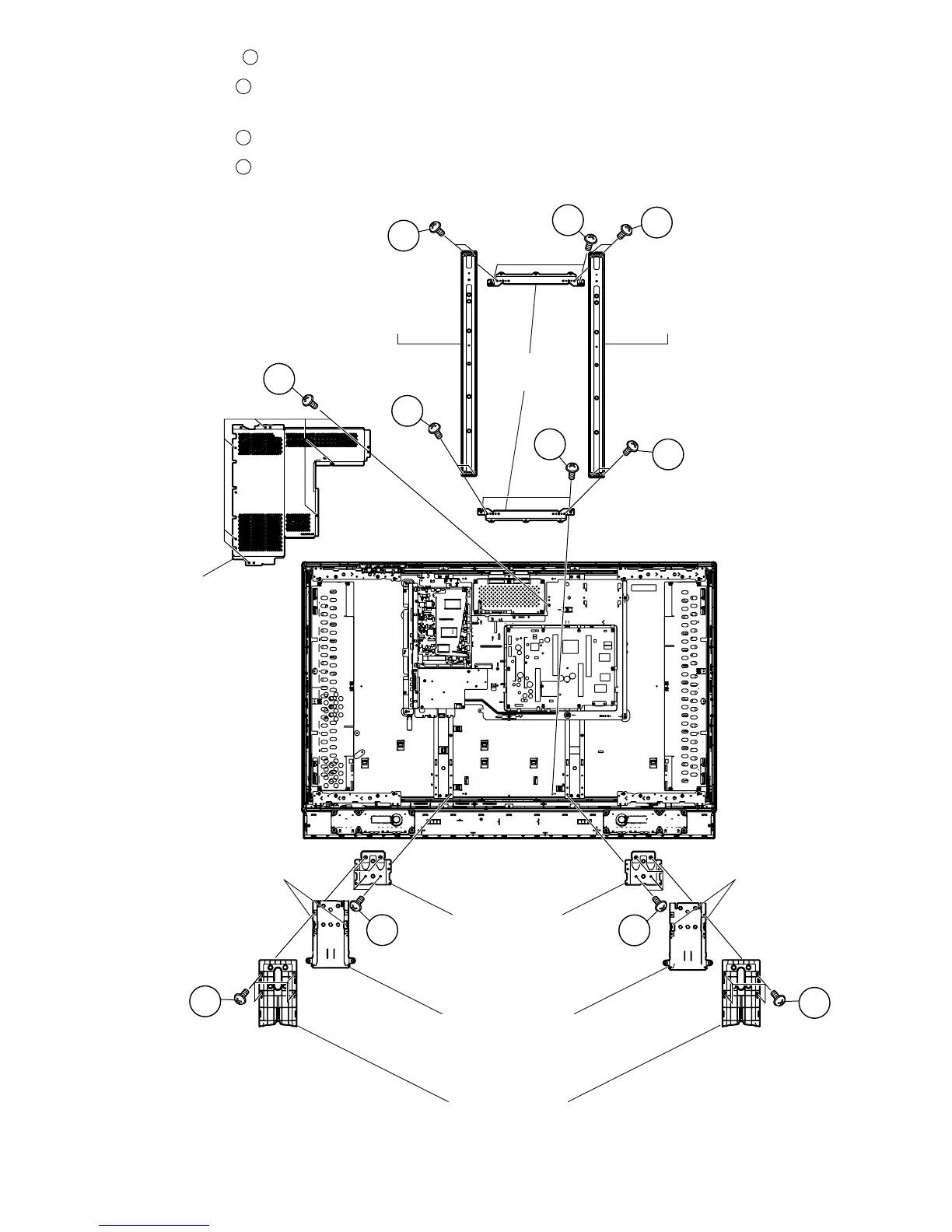

5. Remove the 12 lock screws and detach the Bridge Angle and Chassis Fix Angle.
6. Remove the 8 lock screws 8 lock point and detach the Stand St Cover-R.
7. Remove the 4 hook and detach the Stand assist Holder.
8. Remove the 8 lock screws and detach the Stand Fix Angle.
9. Remove the 7 lock screws and detach the Main Shield.
5
6
7
8
Bridge Angle Bridge Angle
5
5
5
5
5
5
8
7
6
7
6
Chassis
Fix Angle
Main Shield
Stand Fix Angle
Stand Assist Holder
Stand St Cover-R
Hook Hook
To Next Page
