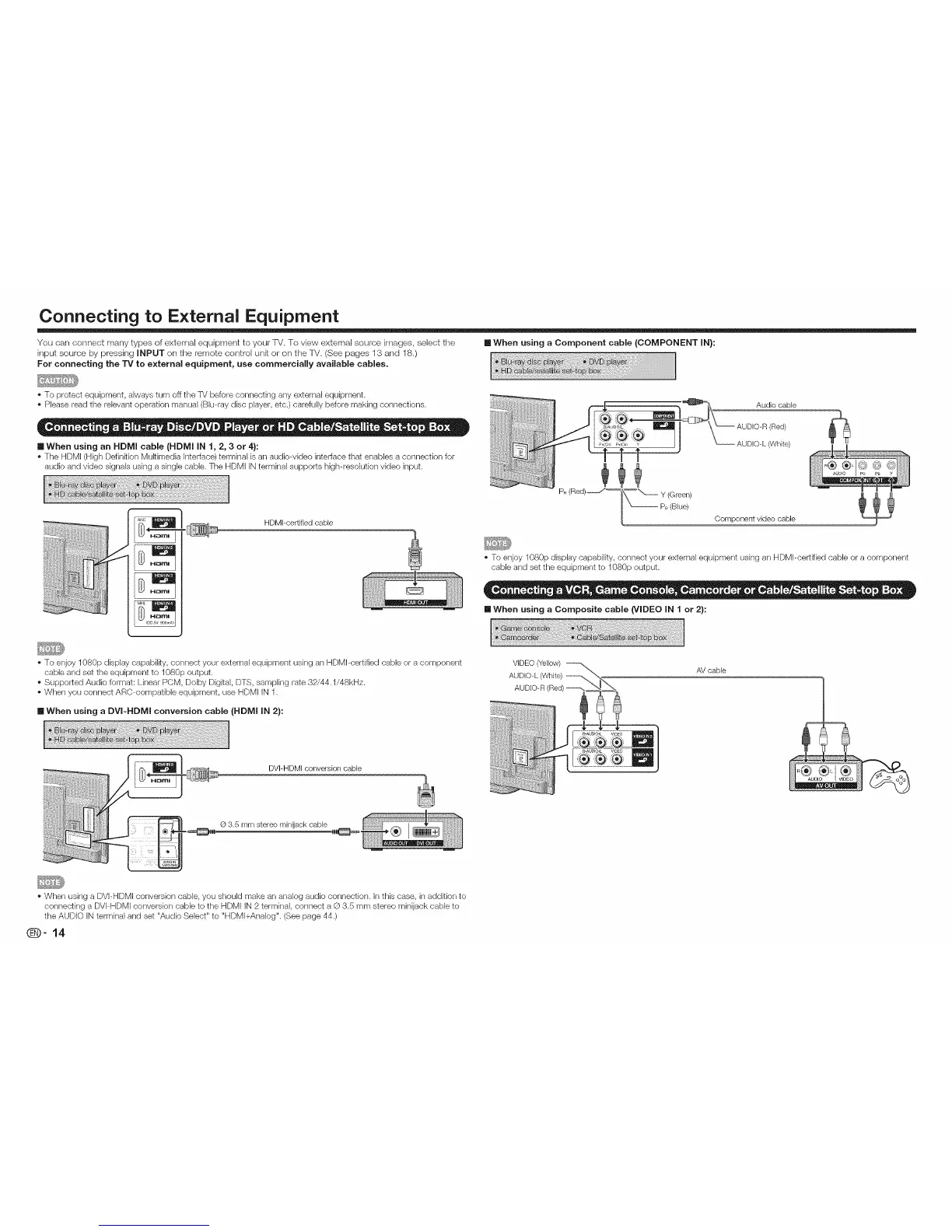

Connecting to External Equipment
You can connect many types of external equipment to your TV. To view external source images, select the [] When using a Component cable (COMPONENT IN):
input source by pressing INPUT on the remote control unit or on the TV, (See pages 13 and 18.)
For connecting the TV to external equipment, use commercially available cables.
• To protect equipment, always turn off the TV before connecting any external equipment.
• Please read the relevant operation manual (Blu-ray disc player, etc.) carefully before making connections.
•When using an HDMI cable (HDMI IN 1, 2, 3 or 4):
• The HDMI (High Definition Mukimedia interface) terminal is an audiowideo interface that enables a connection for
audio and video signals using a single cable. The HDMI iN terminal supports high-resolution video input.
HDMI-certified cable
Y (Green)
PB (Blue)
Audio cable
(Red) _L_
AUDIO-L (White)
Component video cable
• To enjoy 1080p display capabilky, connect your external equipment using an HDMI-certified cable or a component
cable and set the equipment to 1080p output.
[] When using a Composite cable (VIDEO iN 1 or 2}:
• To enjoy 1080p display capabilky, connect your external equipment using an HDMI-certified cable or a component
cable and set the equipment to 1080p output.
• Supported Audio format: Linear PCM, Dolby Digkal, DTS, sampling rate 32/44.1/48kHz.
• When you connect ARC-compatible equipment, use HDMI IN 1.
[] When using a DVI-HDMI conversion cable (HDMI iN 2):
AV cable
DVI=HDMI conversion cable
© 3.5 mm stereo minijack cable
• When using a DVI-HDMI conversion cable, you should make an analog audio connection. In this case, in addkion to
connecting a DVPHDMI conversion cable to the HDMI IN 2 terminal, connect a Q 3.5 mm stereo minijack cable to
the AUDIO iN terminal and set "Audio Select" to "HDMl+Analog". (See page 44.)
_-14
