LC-60LE631M/X-WH
5 – 2

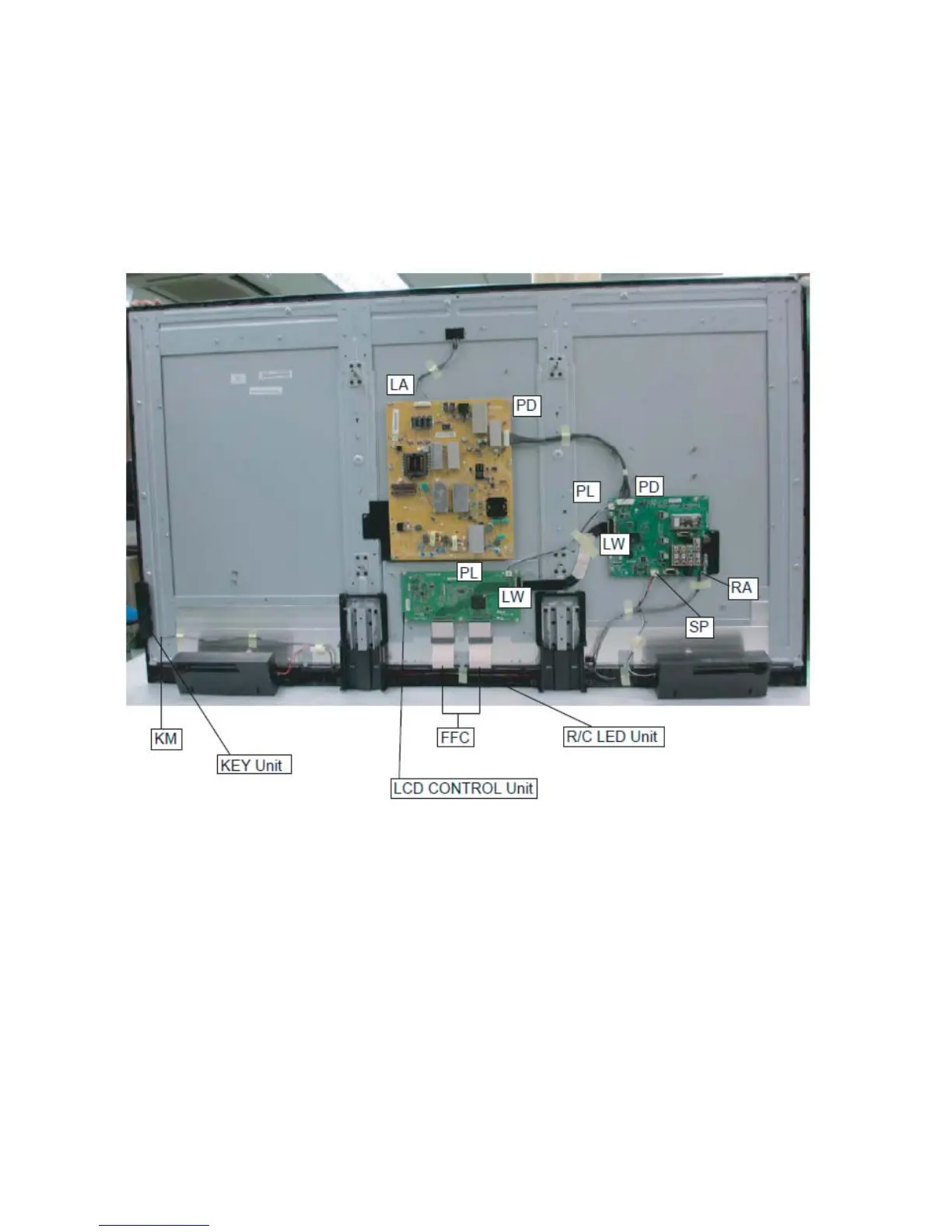

2. Removing of Connectors
1. Disconnect the following connectors from the MAIN Unit. ( PD, LW, PL, RA)
2. Disconnect the following connectors from the POWER Unit. ( PD )
3. Disconnect the following connectors from the LCD CONTROL Unit. (LW, PL, FFC)
4. Disconnect the following connectors from the KEY Unit. (KM)
5. Disconnect the following connectors from the R/C, LED Unit. (RA)
To Next Page
