LC-60LE631M/X-WH
5 – 5

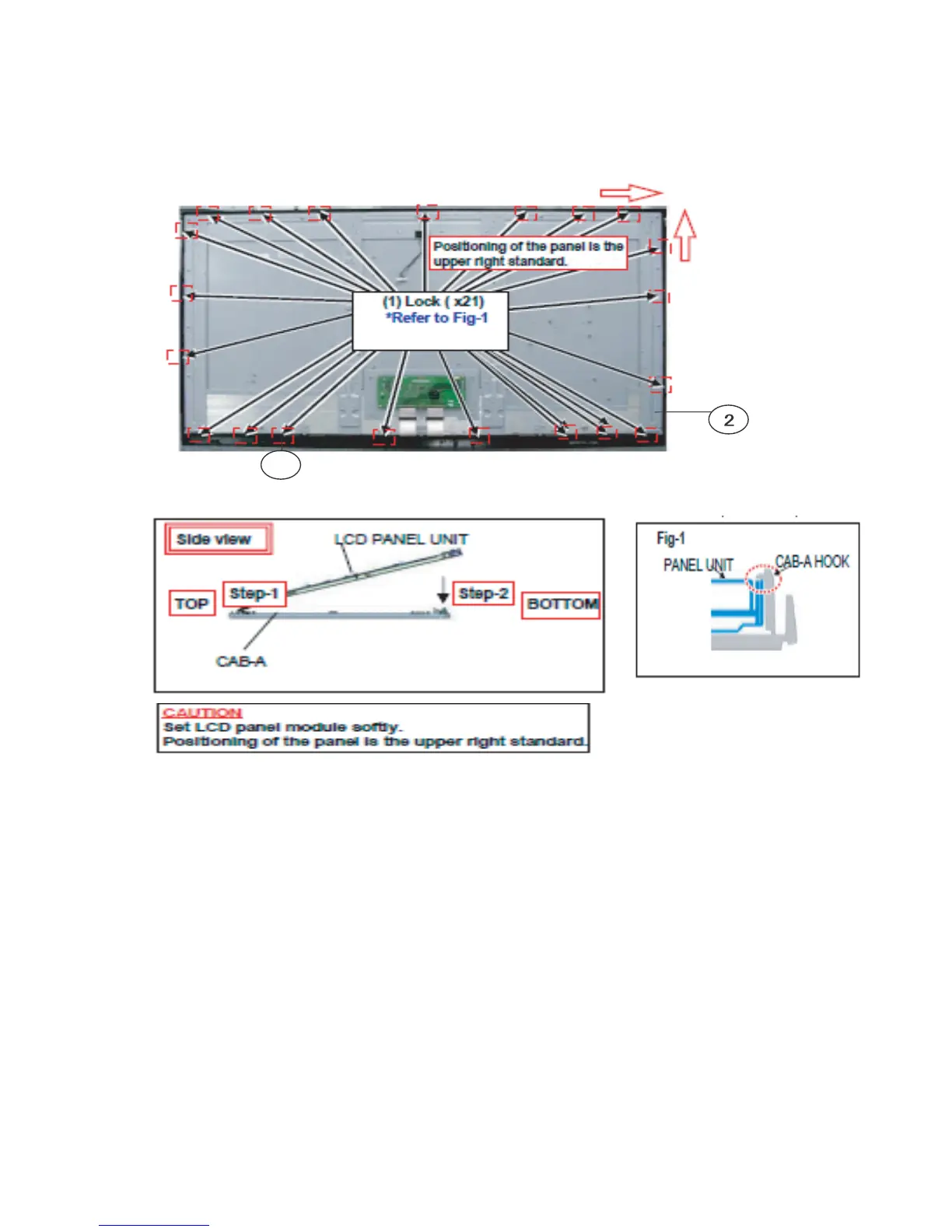

5. Removing of the LCD Panel Module Unit
1.
Detach the 21 H
o
oks [1] and detach the LCD Panel Module Unit [2].
1
