Sharp LC-60LE638E Service Manual

LC-52/60LE830E,RU/831E,S/833E/60LE635E/RU,636E/S,638E
1 – 2

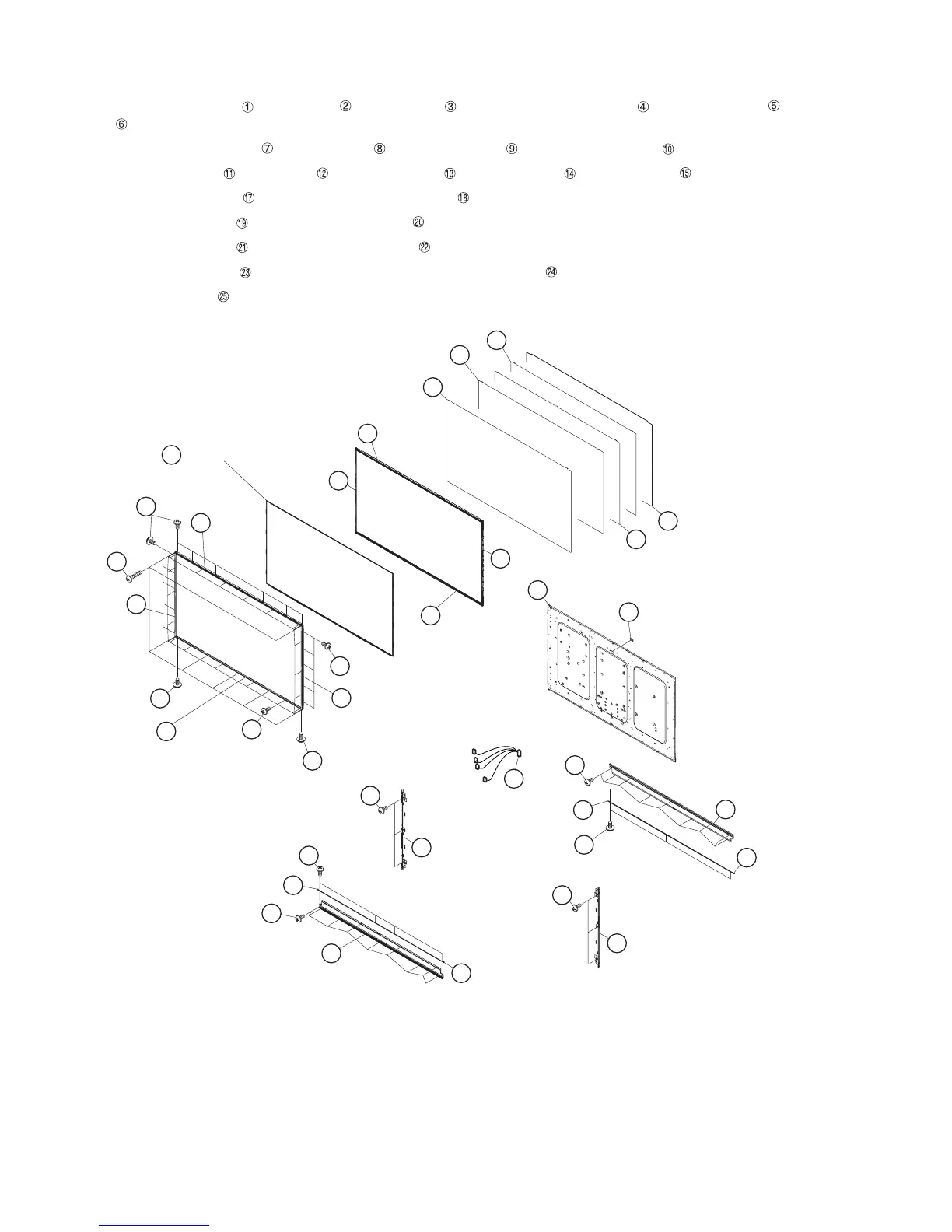

[2] Removing LCD Module (LC-60LE835E/RU/E[B]/RU[B],831E/S/E[B]/S[B],833E/
E[B],60LE635E/RU,636E/S,638E)
1. Remove the 19 lock screws , 7 lock screws , 22 lock screws and detach the Bezel Unit (Top) , Bezel Unit (Bottom) , Bezel Unit (Right/
Left) .
2. Detach the 60” LCD Panel Unit , P-Chassis (Top) , P-Chassis (Bottom) , 2 P-Chassis (Right/Left) .
3. Detach the DBEF Sheet , Lens Sheets , Micro Lens Sheets , Light Guide Plate , Reflection Sheet .
4. Remove the 18 lock screws , and detach the 2 Installation Angle .
5. Remove the 8 lock screws , and detach the 4 LED PWB .
6. Remove the 6 lock screws , and detach the 2 Holder Unit .
7. Detach the Fit Cover (Cap) , and Disconnect the LED PWB Connection Harness .
8. Detach the BL Chassis .
Light Guide Plate
Reflection Sheet
3
2
6
6
1
1
1
1
4
7
5
60" LCD Panel Unit
10
8
9
10
13
15
11
12
14
25
23
22
20
20
21
21
19
22
17
18
20
20
19
17
18
24
Micro Lens Sheet
P-Chassis
Unit (Top)
P-Chassis
Unit (Bottom)
P-Chassis
Unit Left
P-Chassis
Unit Right
Bezel Unit
(Top)
Bezel Unit
(Bottom)
Bezel Unit
(Left)
Bezel Unit (Right)
LED PWB
LED PWB
LED PWB
LED PWB
Installation Angle
Installation Angle
Holder Unit
Holder Unit
BL Chassis
Fit Cover (Cap)
DBEF Sheet
Lens Sheet
