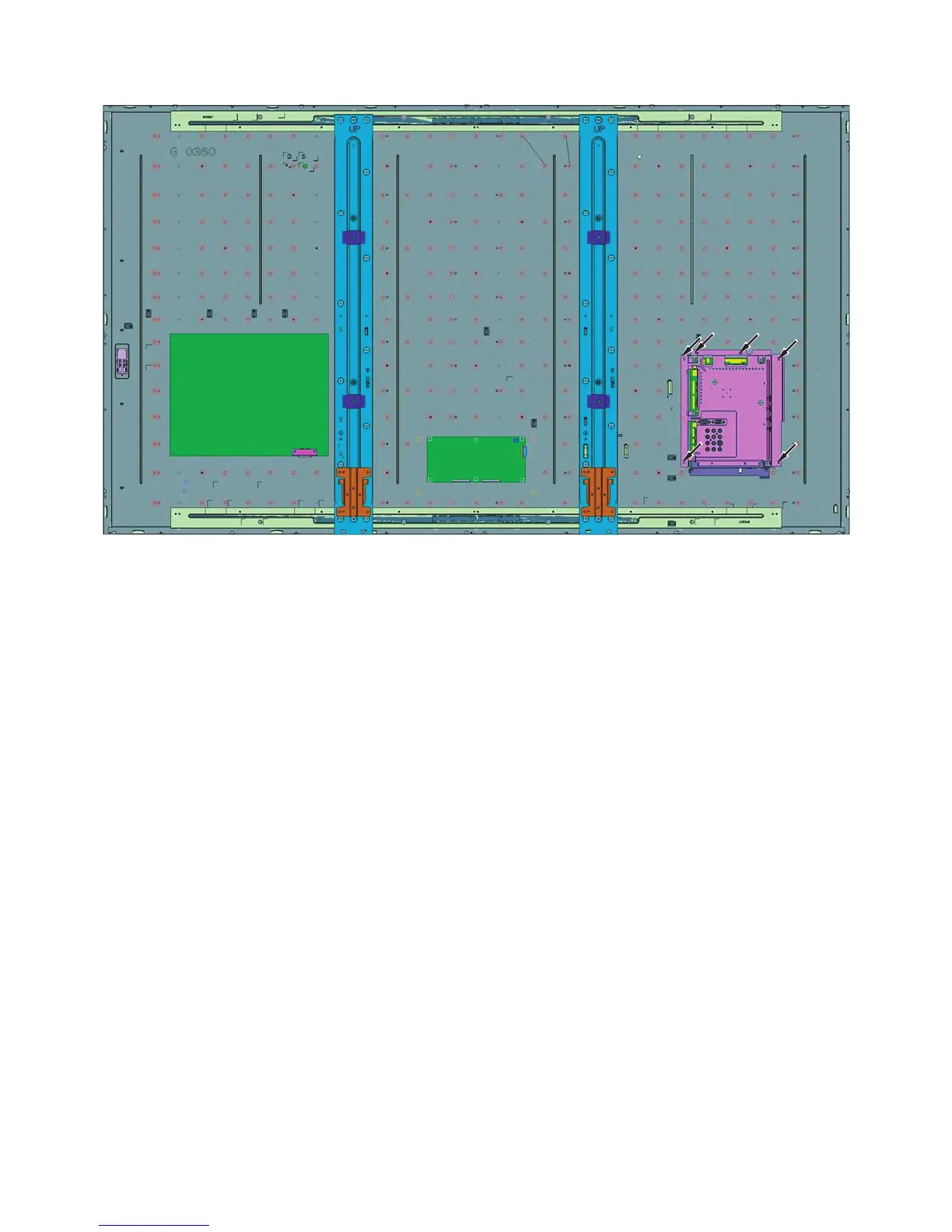

The following is a drawing mounting the main PWB Ass’y on the backlight chassis. (The parts indicated by -> are the access holes for confirmation.)
(Main PWB Ass’y => State where the shielded case and RF terminal angle are mounted on the main PWB)

Sharp LC-80LE632U Specifications

General

Display diagonal	80 \
Display brightness	- cd/m²
Native aspect ratio	16:9
Native refresh rate	120 Hz
Supported video modes	1080p
Viewing angle, vertical	176 °
Contrast ratio (dynamic)	6000000:1
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	No
Placement supported	Horizontal
Product color	Black
Panel mounting interface	- mm
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
HDCP	-
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Component video (YPbPr/YCbCr) in	1
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (max)	307 W
Power consumption (standby)	- W
Power consumption (typical)	220 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	433 mm
Height (with stand)	1145 mm
Weight (with stand)	59500 g
Depth (without stand)	99 mm
Width (without stand)	1862 mm
Height (without stand)	1111 mm
Weight (without stand)	55500 g
