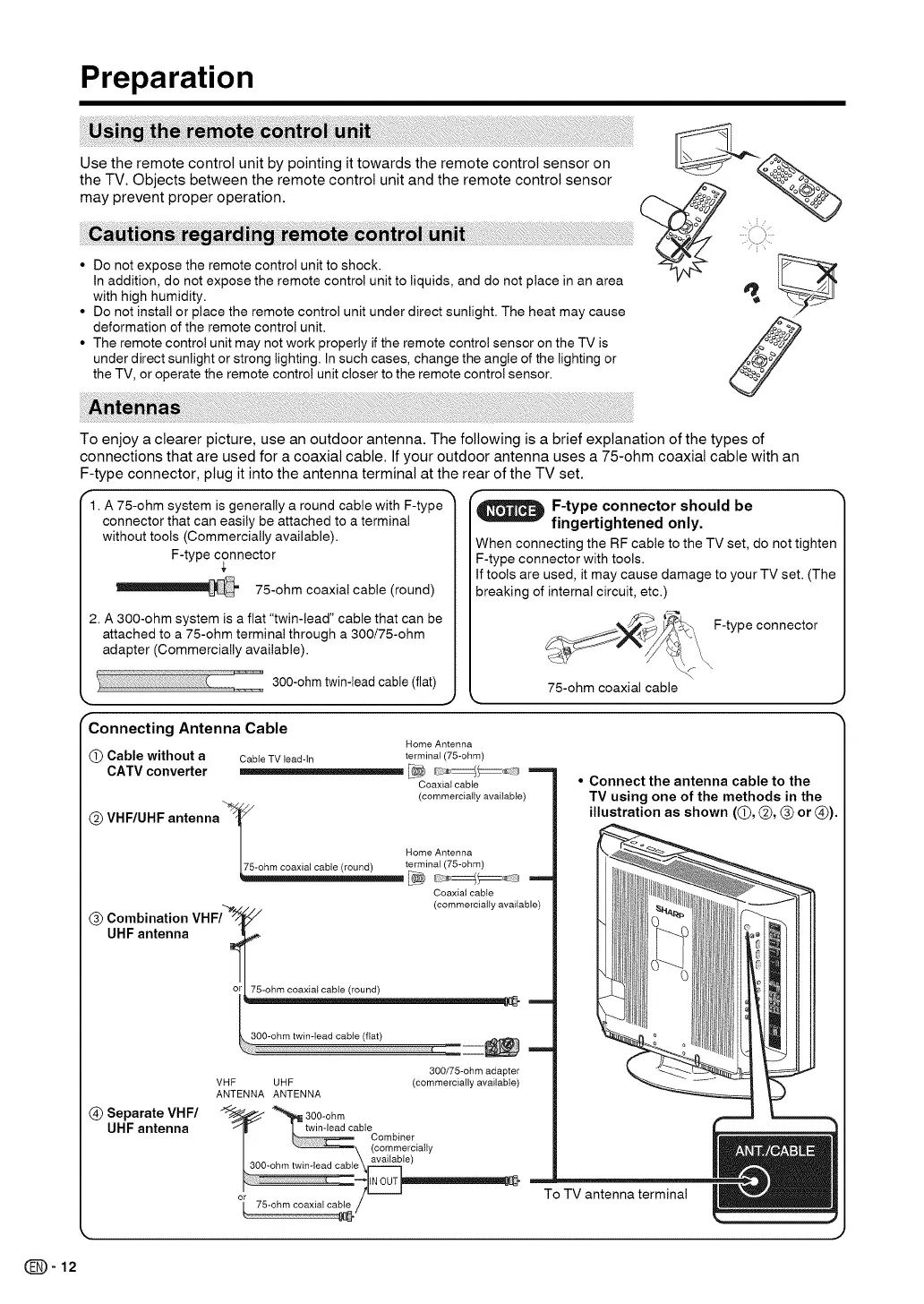

Preparation
Use the remote control unit by pointing it towards the remote control sensor on
the TV. Objects between the remote control unit and the remote control sensor
may prevent proper operation,
• Do not expose the remote control unit to shock.
in addition, do not expose the remote control unit to liquids, and do not place in an area
with high humidity.
• Do not install or place the remote control unit under direct sunlight. The heat may cause
deformation of the remote control unit.
• The remote control unit may not work properly if the remote control sensor on the TV is
under direct sunlight or strong lighting. In such cases, change the angle of the lighting or
the TV, or operate the remote control unit closer to the remote control sensor.
/-x ¸"
G
_-12
To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of
connections that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an
F-type connector, plug it into the antenna terminal at the rear of the TV set.
'-1. A 75-ohm system is generally a round cable with F-type
connector that can easily be attached to a terminal
without tools (Commercially available).
F-type connector
75-ohm coaxial cable (round)
2. A 300-ohm system is a flat "twin-lead" cable that can be
attached to a 75-ohm terminal through a 300/75-ohm
adapter (Commercially available).
300-ohm twin-lead cable (flat)
f
Connecting Antenna Cable
Home Antenna
C) Cable without a Cable TV lead-In terminal (75-ohm)
CATV converter _ [_@ r__s m
Coaxial cable
(commercially available)
VHF/UHF antenna _ /
Home Antenna
terminal (75-ohm)
Coaxiat cabte
(commercially available)
0 Combination VHF/_/_/
UHF antenna
_axiai cable (round)
_ -type connector should be
fingertightened only.
When connecting the RF cable to the TV set, do not tighten
F-type connector with tools.
if tools are used, it may cause damage to your TV set. (The
breaking of internal circuit, etc.)
(_ Separate VHF/
UHF antenna
_300-ohm twin-lead cable (flat)
75-ohm coaxial cable
F-type connector
300/75-ohm adapter
VHF UHF (commercially available)
ANTENNA ANTENNA
00-ohm
ble
o!" =-? "%TVantennatormina,
75-ohm coaxial cable /
• Connect the antenna cable to the
TV using one of the methods in the
illustration as shown ((_, (_, 0 or _).
To Next Page
