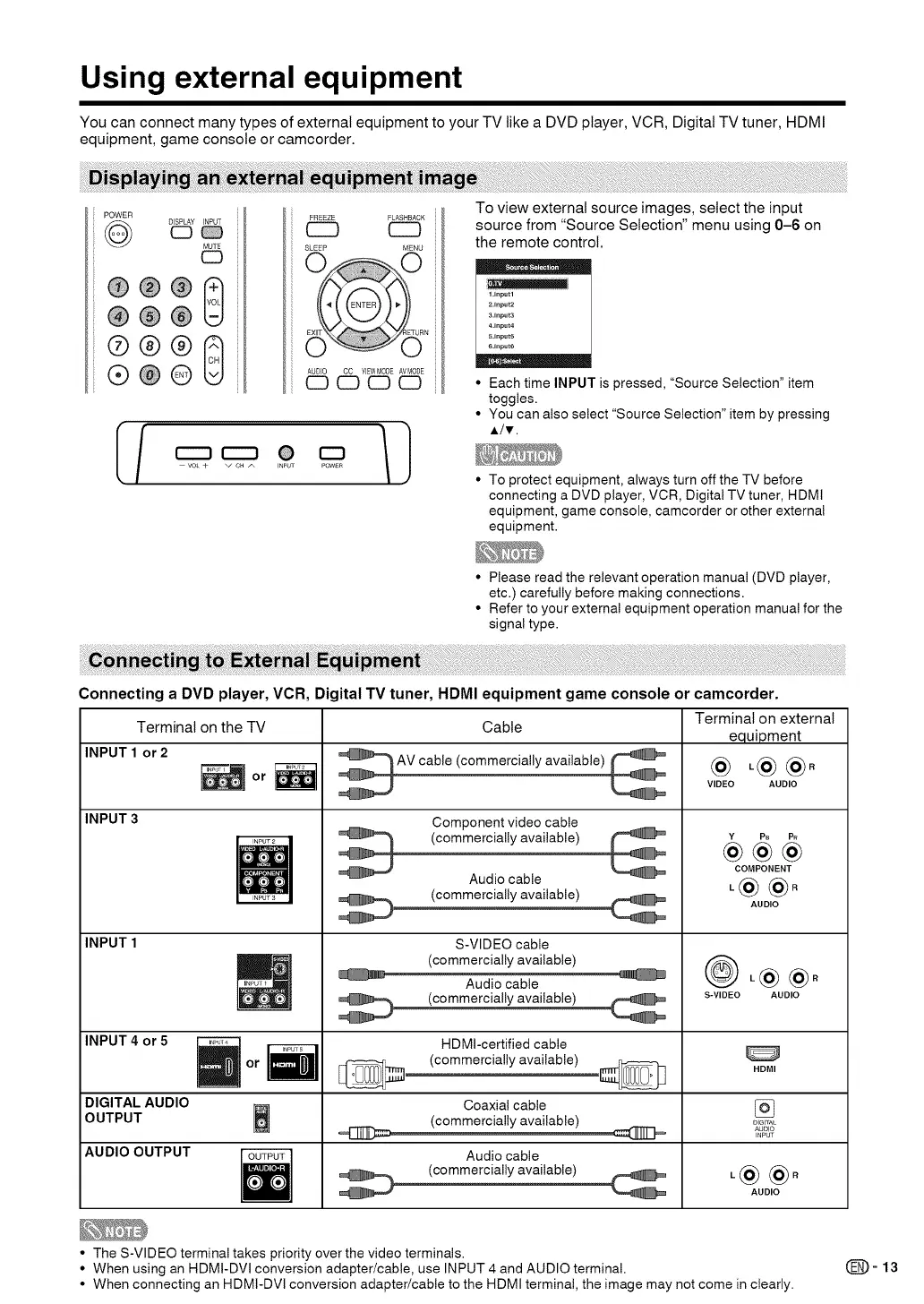

Using external equipment
You can connect many types of external equipment to your TV like a DVD player, VCR, Digital TV tuner, HDMI
equipment, game console or camcorder.
[
POWER
DISPLAY INPUT
MUTE
CD
@@@
@@@8
@@@
FREEZE FLASHBACK
C2D CD
SLEEP MENU
I/ r--n r--n C3
VOL + v CH _ INPUT POWER
To view external source images, select the input
source from "Source Selection" menu using 0-6 on
the remote control.
1.Input1
2.Input2
3.Input3
4.Input4
5.Input5
6.Input6
Each time INPUT is pressed, "Source Selection" item
toggles.
• You can also select "Source Selection" item by pressing
A!v.
To protect equipment, always turn off the TV before
connecting a DVD player, VCR, Digital TV tuner, HDMI
equipment, game console, camcorder or other external
equipment.
• Please read the relevant operation manual (DVD player,
etc.) carefully before making connections.
• Refer to your external equipment operation manual for the
signal type.
Connecting a DVD player, VCR, Digital TV tuner, HDMI equipment game console or camcorder.
Terminal on the TV
INPUT 2
N
INPUT 3
INPUT 1 or 2
INPUT 3
INPUT 1
INPUT 4 or 5 j or l
DIGITAL AUDIO
OUTPUT
AUDIO OUTPUT OUTPUT
m
Cable
_}AV cable (commercially available) _
Component video cable
(commercially available)
Audio cable
(commercially available)
S-VIDEO cable
(commercially available)
Audio cable
(commercially available)
HDMI-certified cable
(commercially available)
Coaxial cable
(commercially available)
Audio cable
(commercially available)
Terminal on external
equipment
@ ,@ @°
VIDEO AUDIO
Y PB PR
@@@
COMPONENT
,@@.
AUDIO
@
S-VIDEO
HDMI
DIGITAL
AUDIO
INPUT
,@@.
AUDIO
• The S-VIDEO terminal takes priority over the video terminals.
• When using an HDMI-DVl conversion adapter/cable, use INPUT 4 and AUDIO terminal.
• When connecting an HDMI-DVl conversion adapter/cable to the HDMI terminal, the image may not come in clearly.
(_-13
To Next Page
