ENGLISH
7
E

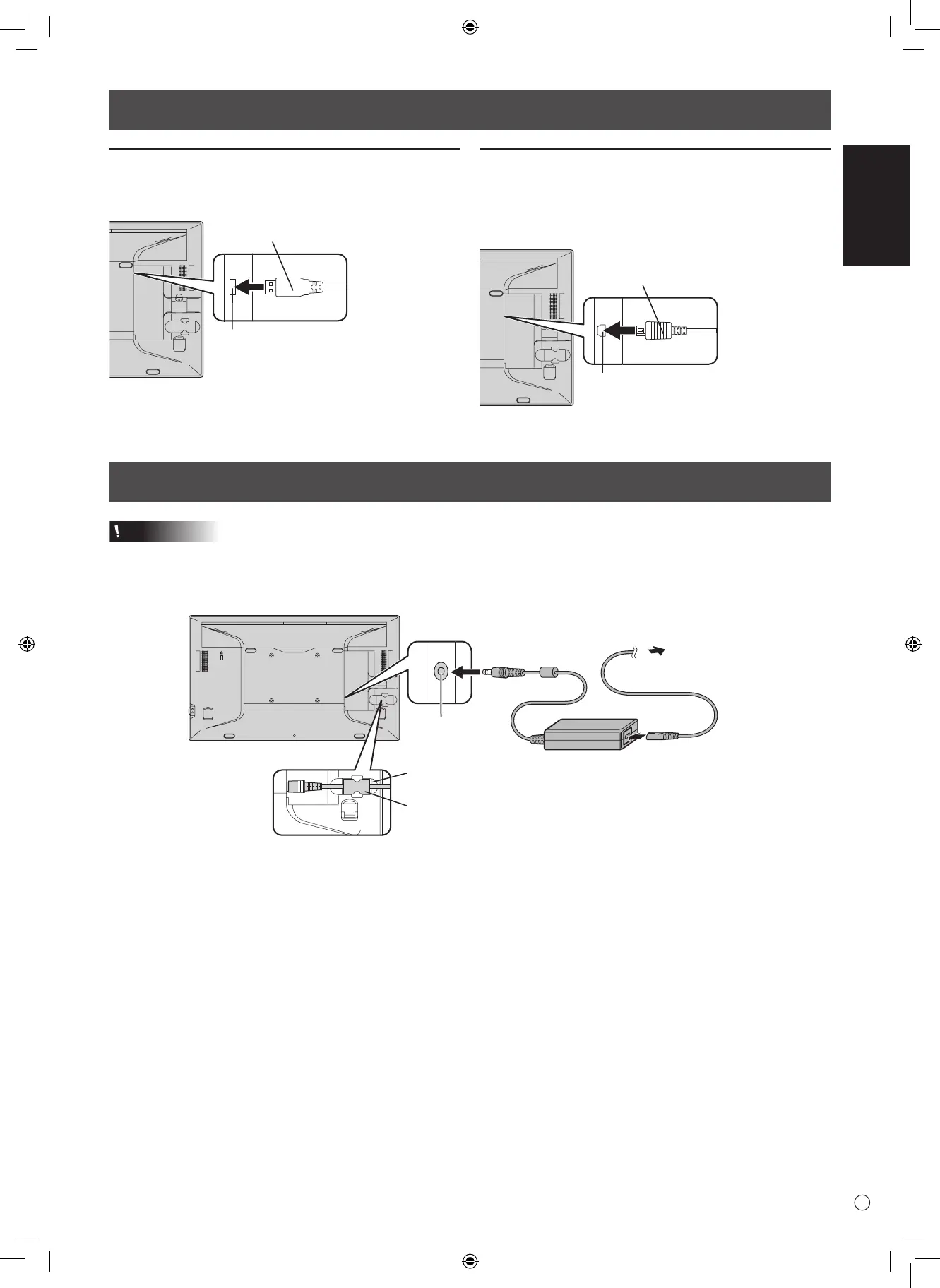

Connecting Peripheral Equipment (Continued)
Connecting USB devices
When using a commercially available mouse, keyboard, or
other device, connect the device to the USB port.
USB terminal
USB cable
Check the orientation of the connector and insert it horizontally
as far as it will go.
Connecting the Monitor to a Power Source
Caution
• Use only the AC adapter and power cord supplied with the monitor.
1. Connect the monitor to the power outlet using the supplied AC adapter and power cord.
AC adapter core
Core restrainer
AC adapter
connection terminal
Power cord
(Supplied)
AC adapter (Supplied)
For power
outlet
2. Push the AC adapter core into the core restrainer.
Connecting the digitizer pen
(LL-P202V)
When using the supplied digitizer pen, connect the digitizer
pen cable.
Digitizer pen connection terminal
Digitizer pen cable
Check the orientation of the connector and insert it horizontally
as far as it will go.
To Next Page
