Connecting antenna cable

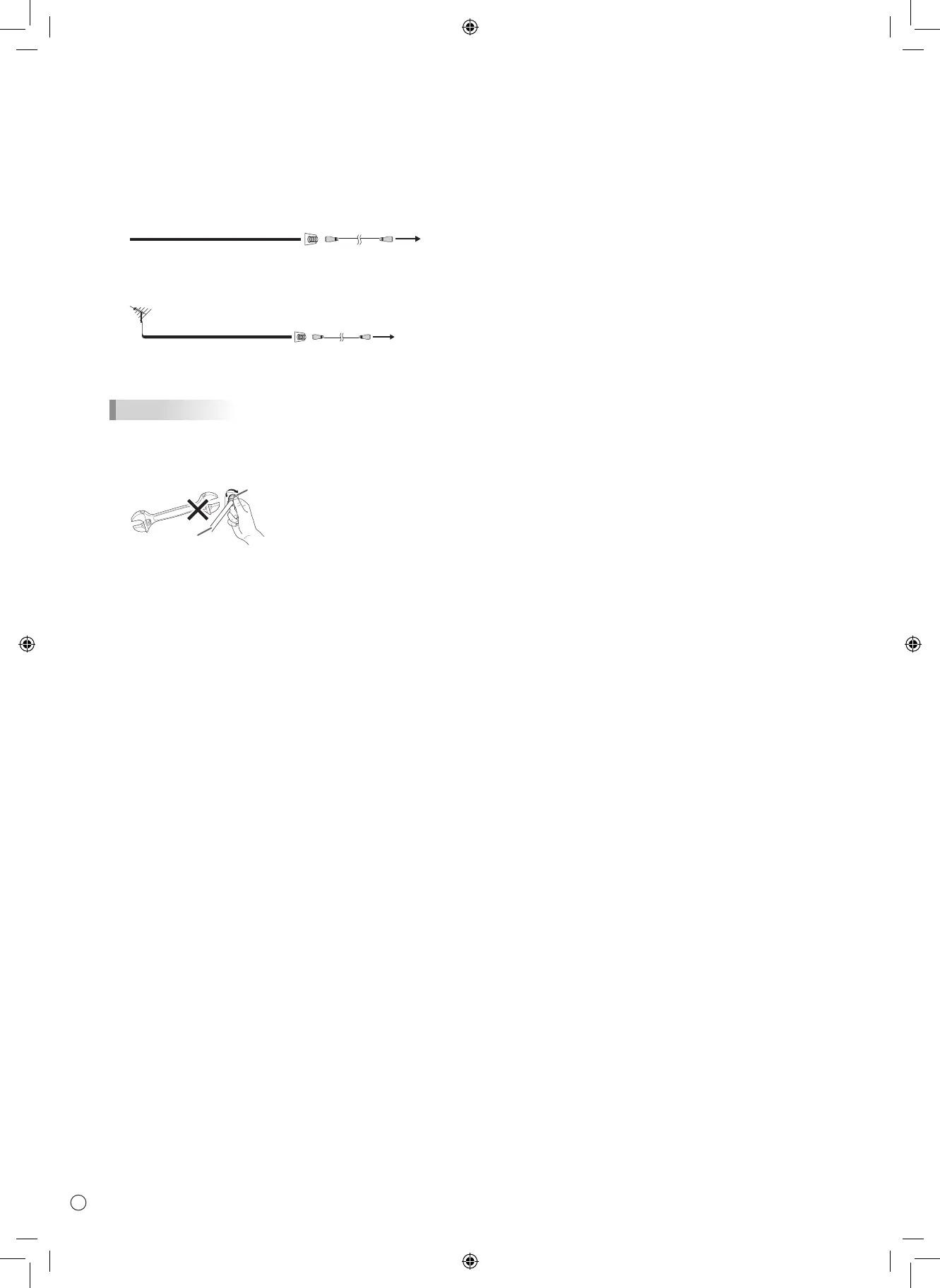

Connect the antenna cable to the monitor using one of the methods in the illustration as shown ((1) or (2)).
(1) Cable without a CATV converter
Cable TV lead-In
Home antenna terminal
(75-ohm)
Coaxial cable
(commercially available)
To
antenna
terminal
(2) VHF/UHF antenna
Home antenna terminal
(75-ohm)
Coaxial cable
(commercially available)
To
antenna
terminal
75-ohm coaxial cable (round)
TIPS
• F-type connector should be nger-tightened only.
When connecting the RF cable to the monitor set, do not tighten F-type connector with tools.
If tools are used, it may cause damage to your monitor set.
(The breaking of internal circuit, etc.)
F-type connector
75-ohm coaxial cable
