17
R-1405
R-1406
TEST PROCEDURES
PROCEDURE
LETTER

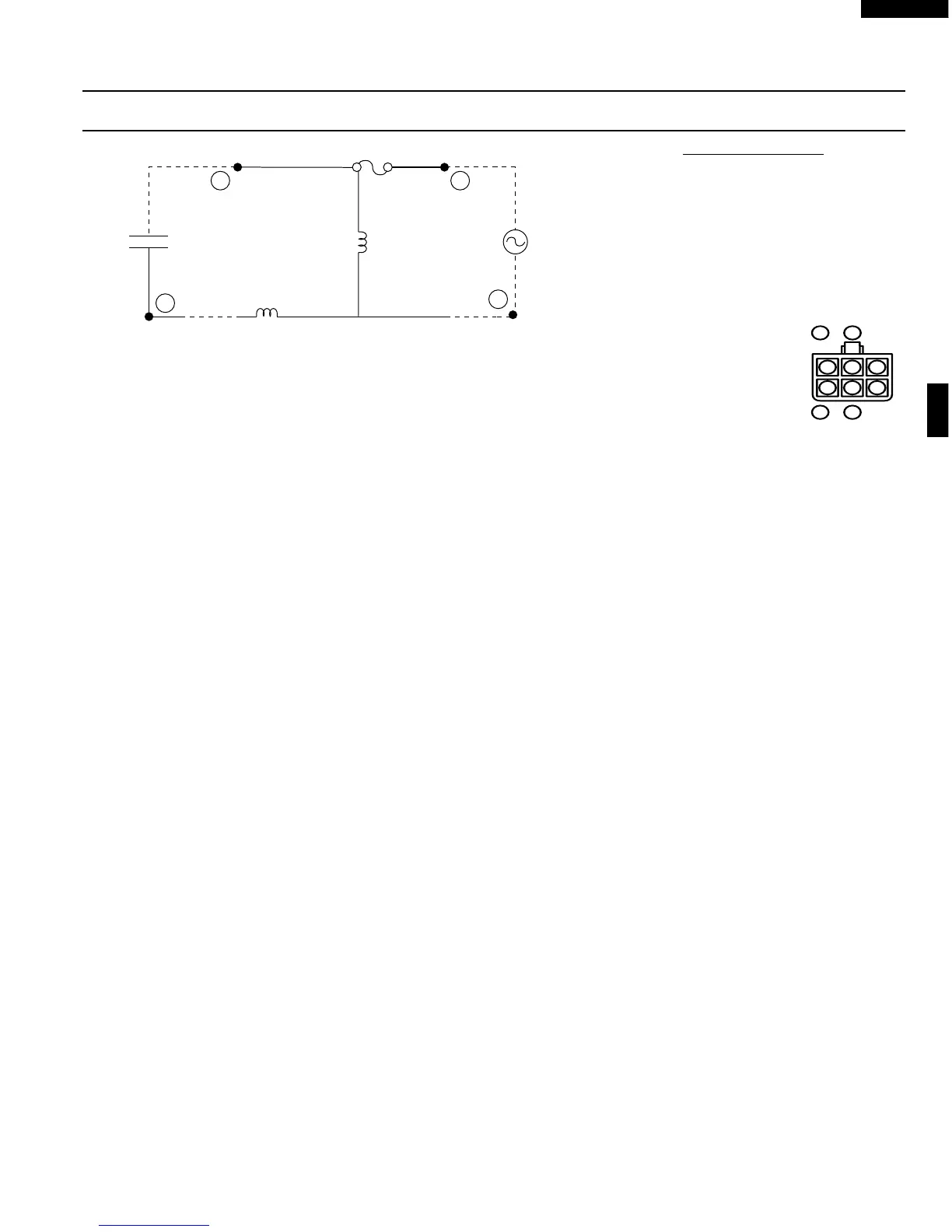

COMPONENT TEST
Resistance between;
BLU (1) AND YLW (4) = 0Ω (Shorted)
BLK (2) AND YLW (4) = 60Ω
BLU (1) AND BLK (2) = 60Ω
RED(5) AND BLU (1) = 162Ω
RED(5) AND BLK (2) = 102Ω
YLW(4) AND RED (5) = 162Ω
6-PIN CONNECTOR
OF HOOD FAN MOTOR
5. Reconnect all leads removed from components during testing.
6. Reinstall the outer case (cabinet).
7. Reconnect the power supply cord after the outer case is installed.
8. Run the oven and check all functions.
BLU BLK
YLW RED
1 2
4 5
60 Ω
102 Ω
HOOD FAN
CAPACITOR
YLW
RED
BLU
BLK
1
2
4
5
SUB
60 Hz
120 v
MAIN
