15.Screw the oven lamp off from the lamp socket.
16.Remove the lamp socket from the lamp angle.
17.Pull the wire leads from the oven lamp socket by pushing
the terminal hole of the oven lamp socket with a small flat
type screw driver.
18.Now, the oven lamp socket is free.
19.Release the harness of the AH sensor assembly from
three (3) wire holders of the hood duct.
20.Remove two (2) screws holding the AH sensor assembly
to the hood duct.
21.Now, the AH sensor assembly is free.

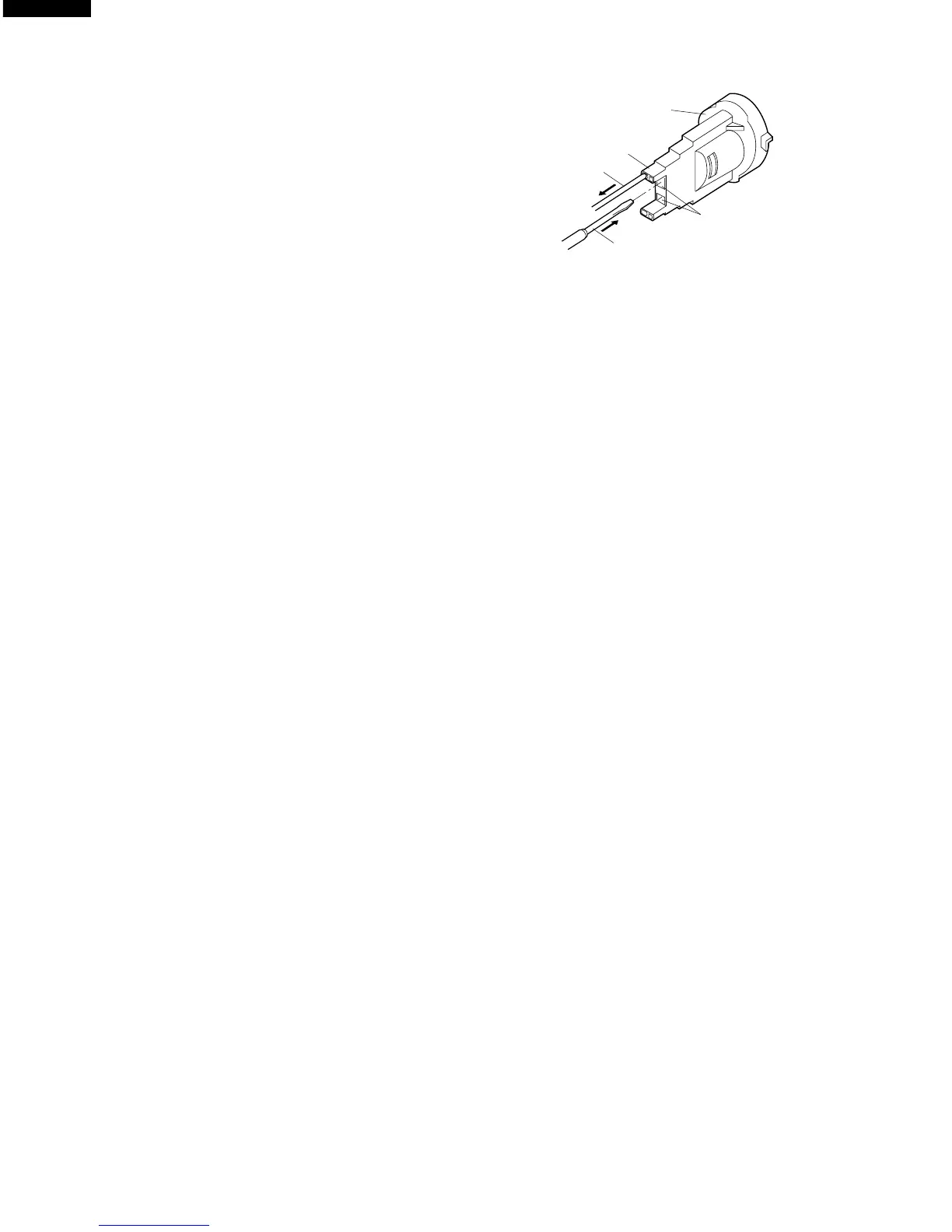

Oven lamp
socket
Terminal
Wire lead
Terminal hole
Flate type small
screw driver
