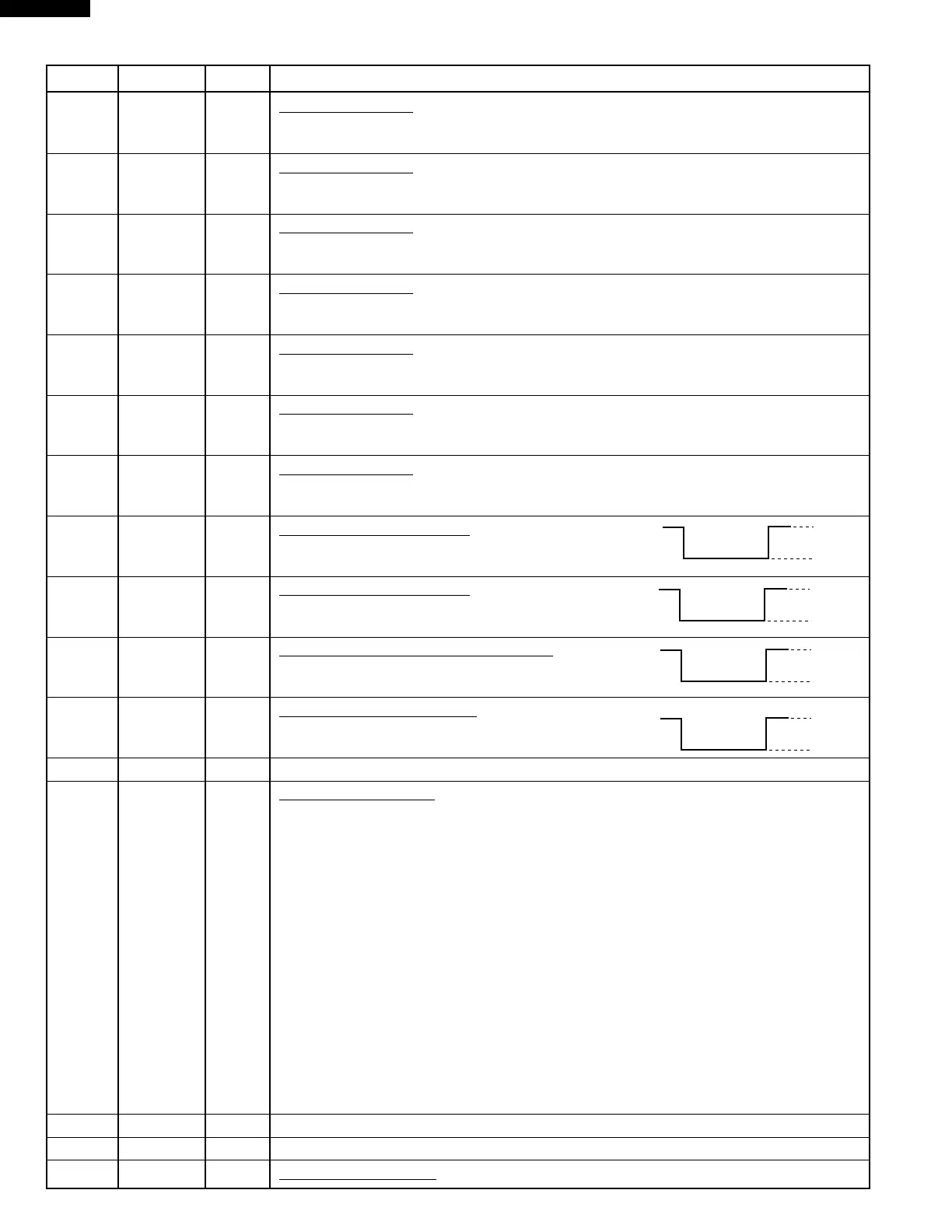

16
R-1514
34 P26 OUT Key strobe signal.
Signal applied to touch-key section. A pulse signal is input to P43-P46 terminal while one
of G7 line keys on key matrix is touched.
35 P25 OUT Key strobe signal.
Signal applied to touch-key section. A pulse signal is input to P43-P46 terminal while one
of G6 line keys on key matrix is touched.
36 P24 OUT Key strobe signal.
Signal applied to touch-key section. A pulse signal is input to P43-P46 terminal while one
of G5 line keys on key matrix is touched.
37 P23 OUT Key strobe signal.
Signal applied to touch-key section. A pulse signal is input to P43-P46 terminal while one
of G4 line keys on key matrix is touched.
38 P22 OUT Key strobe signal.
Signal applied to touch-key section. A pulse signal is input to P43-P46 terminal while one
of G3 line keys on key matrix is touched.
39 P21 OUT Key strobe signal.
Signal applied to touch-key section. A pulse signal is input to P43-P46 terminal while one
of G2 line keys on key matrix is touched.
40 P20 OUT Key strobe signal.
Signal applied to touch-key section. A pulse signal is input to P43-P46 terminal while one
of G1 line keys on key matrix is touched.
41 P17 OUT Hood lamp driving signal.
To turn on and off relay(RY6). “L” level: During
Hood lamp ON. “H” level: During Hood lamp OFF.
42 P16 OUT Hood lamp driving signal.
To turn on and off relay(RY5). “L” level: During
Hood lamp ON. “H” level: During Hood lamp OFF.
43 P15 OUT Hood motor high / low driving signal.
To turn on and off relay(RY3). “L” level: During Hood
motor high. “H” level: During Hood motor low.
44 P14 OUT Hood motor driving signal.
To turn on and off relay(RY4). “L” level: During
Hood motor ON. “H” level: During Hood motor OFF.
45-47 P13-P11 OUT Terminal not used.
48-72
SEG24-SEG0
OUT Segment data signal.
Connected to LCD.
The relation between signals are as follows:
LSI signal (Pin No.) LCD (Pin No.) LSI signal (Pin No.) LCD (Pin No.)
SEG 24 (48) ---------------- SEG24 (29) SEG 11 (61) ------------------ SEG11 (16)
SEG 23 (49) ---------------- SEG23 (28) SEG 10 (62) ------------------ SEG10 (15)
SEG 22 (50) ---------------- SEG22 (27) SEG 9 (63) ------------------ SEG 9 (14)
SEG 21 (51) ---------------- SEG21 (26) SEG 8 (64) ------------------ SEG 8 (13)
SEG 20 (52) ---------------- SEG20 (25) SEG 7 (65) ------------------ SEG 7 (12)
SEG 19 (53) ---------------- SEG19 (24) SEG 6 (66) ------------------ SEG 6 (11)
SEG 18 (54) ---------------- SEG18 (23) SEG 5 (67) ------------------ SEG 5 (10)
SEG 17 (55) ---------------- SEG17 (22) SEG 4 (68) ------------------ SEG 4 ( 9)
SEG 16 (56) ---------------- SEG16 (21) SEG 3 (69) ------------------ SEG 3 ( 8)
SEG 15 (57) ---------------- SEG15 (20) SEG 2 (70) ------------------ SEG 2 ( 7)
SEG 14 (58) ---------------- SEG14 (19) SEG 1 (71) ------------------ SEG 1 ( 6)
SEG 13 (59) ---------------- SEG13 (18) SEG 0 (72) ------------------ SEG 0 ( 5)
SEG 12 (60) ---------------- SEG12 (17)
73/74 VCC/VREF IN Connected to GND.
75 AVSS IN Connected to VC.
76 COM3 OUT Common data signal. Connected to LCD signal COM4.
Pin No. Signal I/O Description
ON
OFF
H : GND
L
ON
OFF
H : GND
L
ON
OFF
H : GND
L
ON
OFF
H : GND
L
