21
R-1514
8. Screw the oven lamp off from the lamp socket.
9. Now, the oven lamp is free.
10.Pull the wire leads from the oven lamp socket by pushing
the terminal hole of the oven lamp socket with the small
flat type screw driver.
11.Now, the oven lamp socket is free.
1. Disconnect the power supply cord.
2. Open the door and block it open.
3. Remove three (3) screws holding the hood exhaust
louver to oven cavity front face plate.
4. Remove the hood exhaust louver from the oven by
pushing the right and left tabs of the hood exhaust louver.
(Refer to procedure of “HOOD EXHAUST LOUVER
REMOVAL”)
5. Remove one (1) screw holding the control panel to the
oven cavity front face plate.
6. Release the control panel from the oven cavity front face
plate by lifting it up and tilting top edge back.
7. Turn the lamp socket and release it from the magnetron
duct.

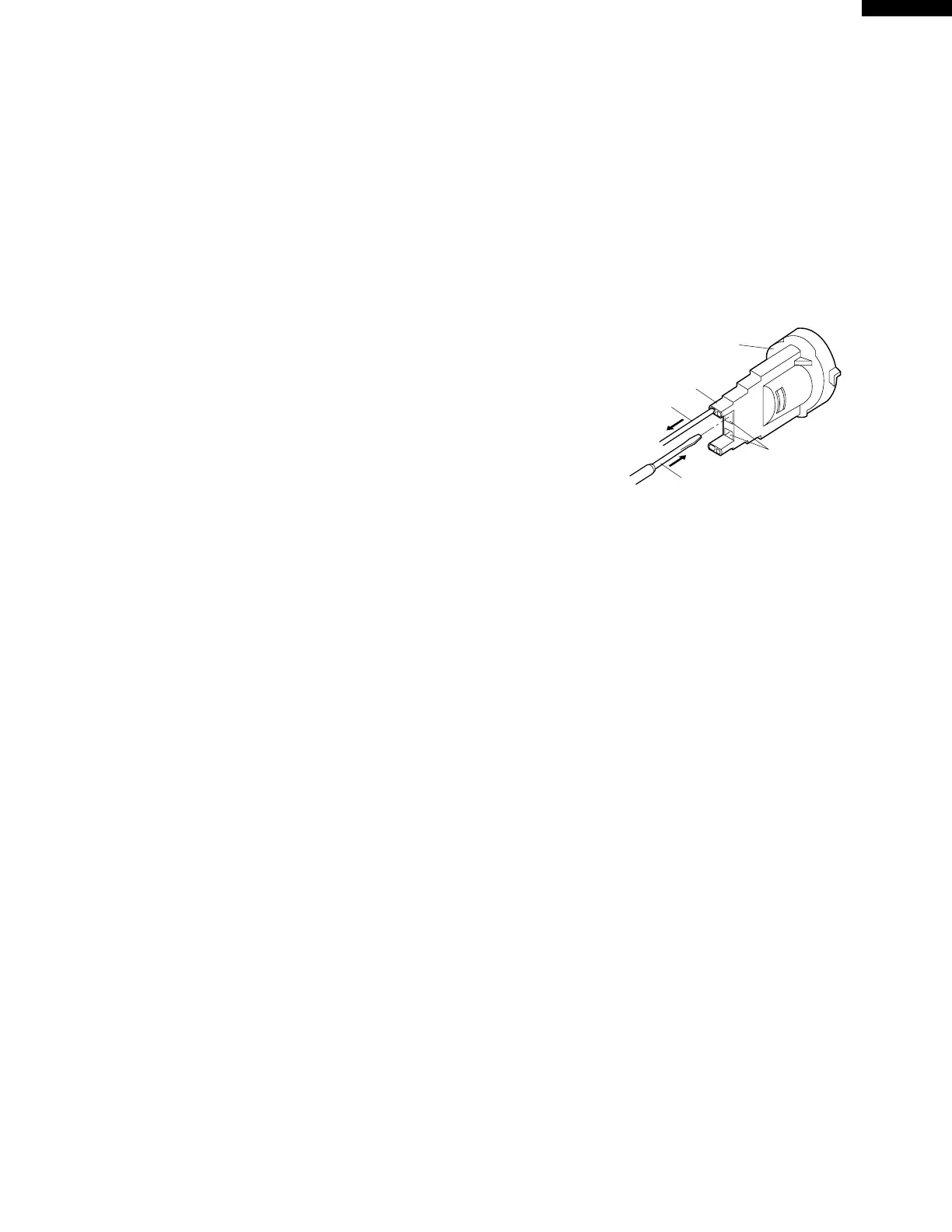

OVEN LAMP SOCKET REMOVAL
Oven lamp
socket
Terminal
Wire lead
Terminal hole
Flat type small
screw driver
5. Disconnect only the connector CN-F from the control
unit. It is not necessary to disconnect other connectors
or wire leads from the control unit.
6. Release the oven lamp socket from the magnteron duct
by turning the socket counterclockwise.
7. Remove the oven lamp from the socket by turning the
oven lamp.
8. Now the oven lamp is free.
To Next Page
