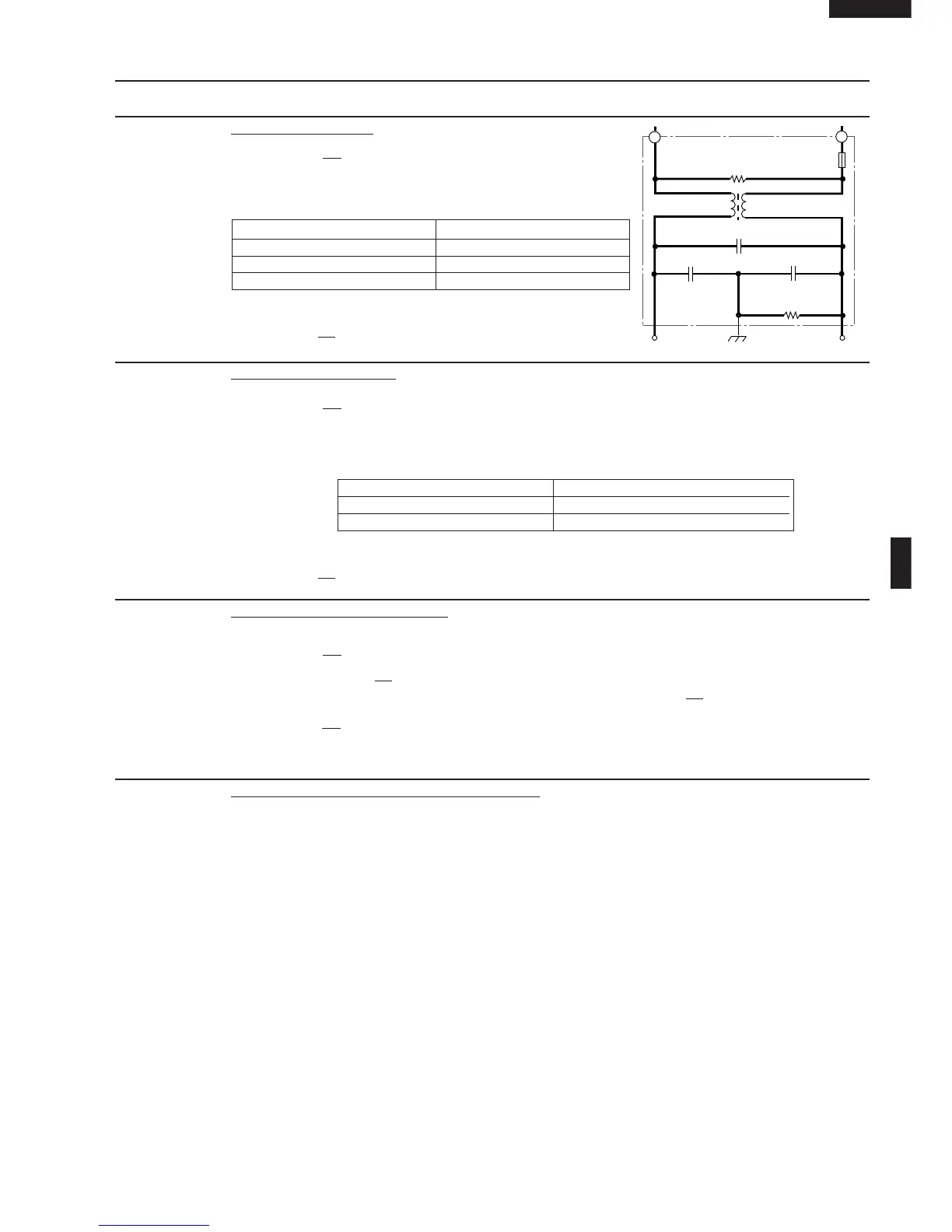

R-15AM
13
CARRY OUT 3D CHECKS.
Disconnect the leads from the motor. Using an ohmmeter, check the resistance between the two
terminals as described in the table below.
Table: Resistance of Motor
Motors Resistance
Fan motor Approximately 219 Ω
Antenna motor Approximately 11 kΩ
If incorrect readings are obtained, replace the motor.
CARRY OUT
4R CHECKS.
TEST PROCEDURES
PROCEDURE
LETTER COMPONENT TEST
I MOTOR WINDING TEST
CARRY OUT 3D CHECKS.
Disconnect the leads from the terminals of noise filter.
Using an ohmmeter, check between the terminals as described
in the following table.
MEASURING POINTS INDICATION OF OHMMETER
Between N and L Approx. 680 kΩ
Between terminal N and WHITE Short circuit
Between terminal L and RED Short circuit
If incorrect readings are absorbed, replace the noise filter unit.
CARRY OUT
4R CHECKS.
H NOISE FILTER TEST
J HIGH VOLTAGE FUSE F2 TEST
CARRY OUT 3D CHECKS.
If the high voltage fuse F2 is blown, there could be a short in the high voltage rectifier or the magnetron.
Check them and replace the defective parts and the high voltage fuse F2.
CARRY OUT 4R CHECKS.
CAUTION: Only replace high voltage fuse with the correct value replacement.
The touch control panel consists of circuits including semiconductors such as LSI, ICs, etc. Therefore,
unlike conventional microwave ovens, proper maintenance can not be performed with only a voltmeter
and ohmmeter.
In this service manual, the touch control panel assembly is in one unit and troubleshooting by unit
replacement is described according to the symptoms indicated.
Control Panel.
The following symptoms indicate a defective control unit.
1. Tact Switch.
The following symptoms indicate a defective tact switch. Replace the tact switch.
a) When touching a tact switch, a certain tact switch produces no signal at all.
b) When touching a tact switch, sometimes a tact switch produces no signal.
2. In connection with tact switches.
a) When touching a tact switch, a certain group of tact switch do not produce a signal.
b) When touching a tact switch, no tact switch produce a signal.
3. Display problems.
a) At a certain digit, all or some segments do not light up.
b) At a certain digit, brightness is low.
c) Only one indicator does not light up.
d) The corresponding segments of all digits do not light up; or they continue to light up.
e) Wrong figure appears.
f) A certain group of indicators do not light up.
K TOUCH CONTROL PANEL ASSEMBLY TEST
F1: FUSE
F10A
N
L
DISCHARGE RESISTOR 680 kΩ 1/2W
NOISE SUPPRESSION COIL
LINE BYPASS
CAPACITOR
0.0033µF/ AC 250V
DISCHARGE
RESISTOR 10MΩ 1/2W
REDWHT
LINE BYPASS
CAPACITOR
0.0033µF/ AC 250V
LINE CROSS CAPACITOR 0.22µF/ AC 250V
NOISE FILTER
To Next Page
