Sharp R-15AT Service Manual

R-15AT
15
TEST PROCEDURES
PROCEDURE
LETTER COMPONENT TEST

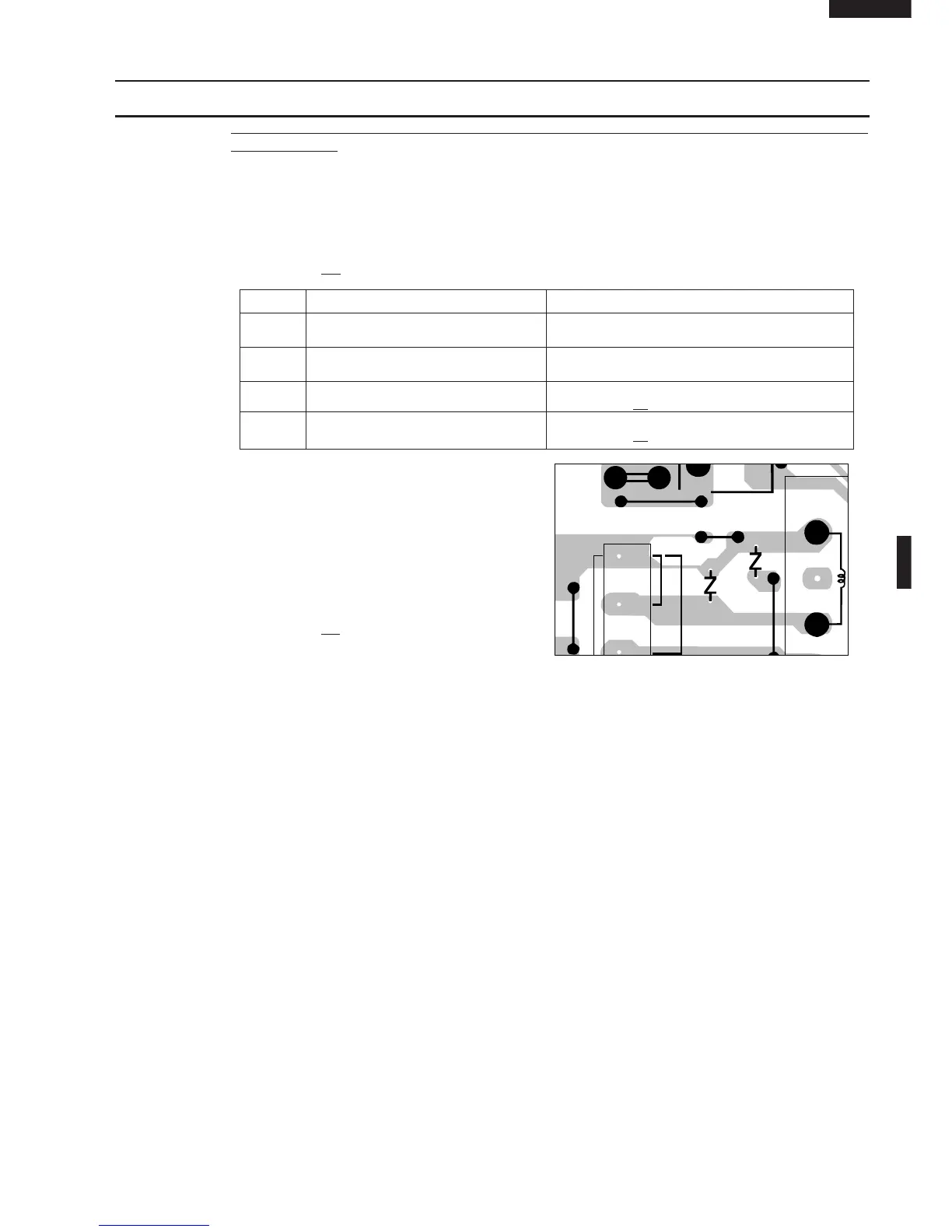

N PROCEDURES TO BE TAKEN WHEN THE FOIL PATTERN ON THE PRINTED WIRING BOARD
(PWB) IS OPEN
To protect the electronic circuits, this model is provided with a fine foil pattern added to the input circuit
on the PWB, this foil pattern acts as a fuse. If the foil pattern is open, follow the troubleshooting guide
given below for repair.
Problem: POWER ON, indicator does not light up.
CARRY OUT 3D CHECKS.
STEPS OCCURRENCE CAUSE OR CORRECTION
1
The rated AC voltage is not present at
Check supply voltage and oven power cord.
Power terminal of CPU connector (CN-A).
2
The rated AC voltage is present at primary Low voltage transformer or secondary circuit defective.
side of low voltage transformer. Check and repair.
3 Only pattern at "a" is broken.
*Insert jumper wire J1 and solder.
(CARRY OUT 3D CHECKS BEFORE REPAIR)
4Pattern at "a" and "b" are broken.
*Insert the coil RCILF2003YAZZ between "c" and "d".
(CARRY OUT 3D CHECKS BEFORE REPAIR)
NOTE: *At the time of these repairs, make a
visual inspection of the varistor for
burning damage and examine the
transformer with tester for the pres-
ence of layer short circuit (check pri-
mary coil resistance).
If any abnormal condition is detected,
replace the defective parts.
CARRY OUT 4R CHECKS.
(17)
a
b
c
d
(CT1)
(J1)
(J2)
(TB1)
12
P
VRS1
(VRS2)
POWER
7

Sharp R-15AT Specifications

General

Grill	No
Rotisserie	-
Control type	Buttons
Display type	LCD
Product type	Solo microwave
Certification	CE
Product color	Stainless steel
Microwave power	1000 W
Built-in display	Yes
Appliance placement	Countertop
Number of power levels	11
Current	16 A
Connected load	- W
AC input voltage	230 V
AC input frequency	50 Hz

Weight and Dimensions

Depth	424 mm
Width	520 mm
Height	309 mm
Weight	18000 g
Interior dimensions (W x D x H)	351 x 372 x 211 mm
