R-15AT

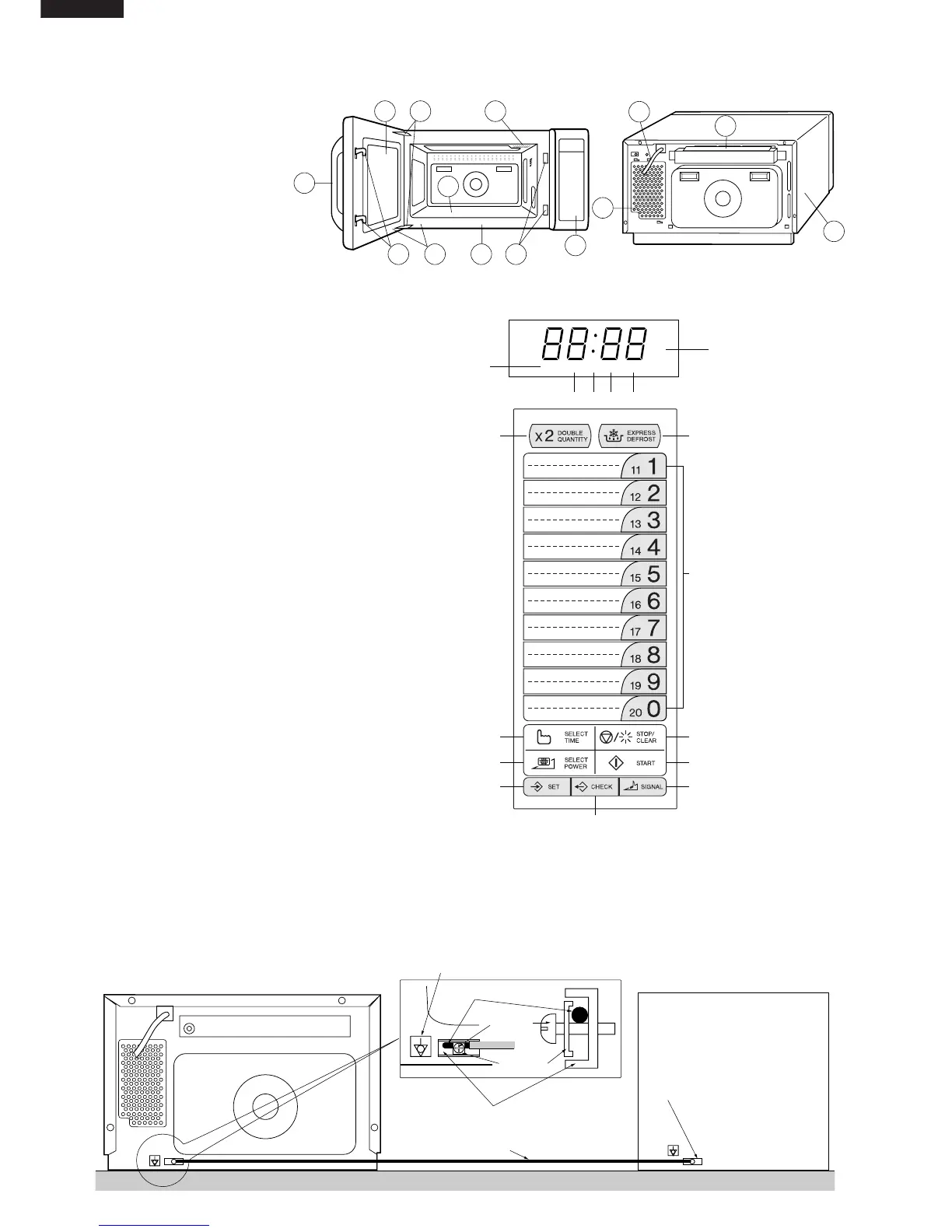

APPEARANCE VIEW
DISPLAY AND INDICATORS
Check indicators after the oven starts to
oven is operating as desired.
1 Cook indicator
This indicator shows cooking in progress.
2 Express Defrost indicator
3 Memory number indicator
4Double quantity indicator
5 Check mode indicator
6 Digital display
OPERATING KEYS
7 DOUBLE QUANTITY key
8 EXPRESS DEFROST key
9 NUMBER keys
10 SELECT TIME key
11 STOP/CLEAR key
12 SELECT POWER key
13 START key
14 SET key
15 CHECK key
16 SIGNAL key
OVEN
1. Oven light
2. Ceramic shelf
3. Control panel
4. Cavity face plate
5. Door latch openings
6. Door latches
7. Door hinges
8. Door seals and sealing surfaces
9. Door handle
10.Oven door with see-through window
11.Air ventilation cover and openings
12.Power supply cord
13.Air intake openings
14.Outer case cabinet
TOUCH CONTROL PANEL
12
11
710
9
54
3
13
14
8
1
2
6
INSTALLATION INFORMATION
When this commercial microwave oven is installed near other commercial electrical appliances, connect a lead wire to
each equivalent potential terminal with equipotential marking between them (insert a lead wire between a washer and
an earth angle, and screw them), as shown in Fig. A-1, to make sure that they are at equivalent potential.
If any lead wire is not connected between them, when person touch them he/she will get a electric shock.
COMMERCIAL MICROWAVE OVEN OTHER COMMERCIAL
ELECTRICAL APPLIANCE
Lead wire
Equipotential marking
Earth angle
(Equipotential terminal)
Equipotential
terminal
Screw
Washer
Lead wire
DEF
ON
NO.
X2
CHECK
15
2 3 4 5
7
1
10
12
14
8
6
9
11
13
16
To Next Page
