OVEN AND ACCESSORIES
ACCESSORIES:
Check to make sure the following accesso-
ries are provided:
(14) Turntable (15) Turntable support (16)
Coupling
• Place the coupling into the turntable
motor shaft and then place the turntable
support in the centre of the oven floor so
that it can freely rotate around the cou-
pling. Place the turntable onto the turn-
table support so that it locates firmly into
the coupling.
• To avoid turntable damage, ensure dish-
es and containers are lifted clear of the
turntable rim when removing them from
the oven.
NOTE: When you order accessories, please
mention two items: part name and model
name to your dealer or SHARP authorised
service agent.
NOTES:
• The waveguide cover is fragile. Care should be taken when cleaning inside the oven to
ensure that it is not damaged.
• Always operate the oven with the turntable and turntable support fitted correctly. This
promotes thorough, even cooking. A badly fitted turntable may rattle, may not rotate
properly and could cause damage to the oven.
• Place all food and containers of food on the turntable for cooking.
• The turntable rotates clockwise or anti-clockwise. The rotary direction may change each
time you start the oven. This does not affect cooking performance.

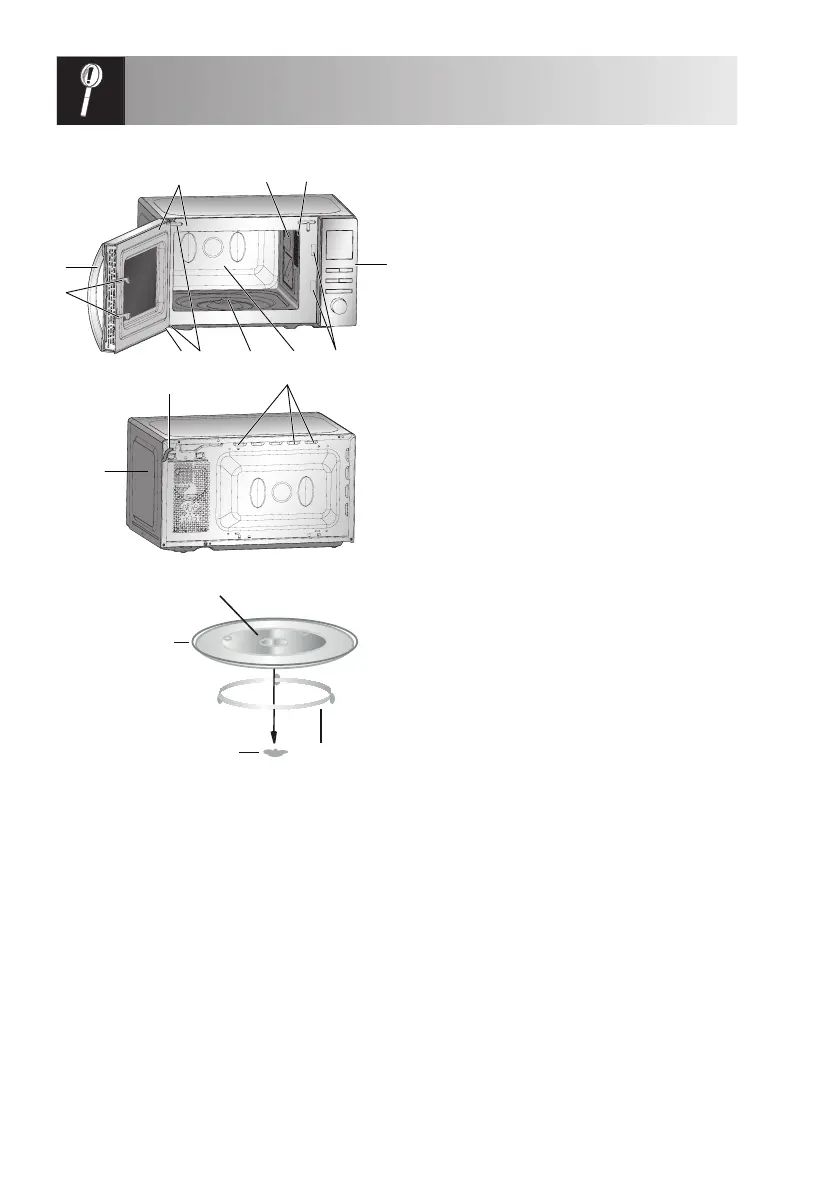

OVEN
1. Door handle
2. Oven lamp
3. Door hinges
4. Door safety latches
5. Door
6. Door seals and sealing surfaces
7. Turntable motor shaft
8. Oven cavity
9. Control panel
10. Waveguide cover (DO NOT REMOVE)
11. Power supply cord
12. Ventilation openings
13. Outer cabinet
