Sharp R-312AW - Pictorial Diagram

25
R-312AW
R-312AK
6
45
1
2
3
6
45
1
2
3
A
B
C
D
E
F
G
H
A
B
C
D
E
F
G
H

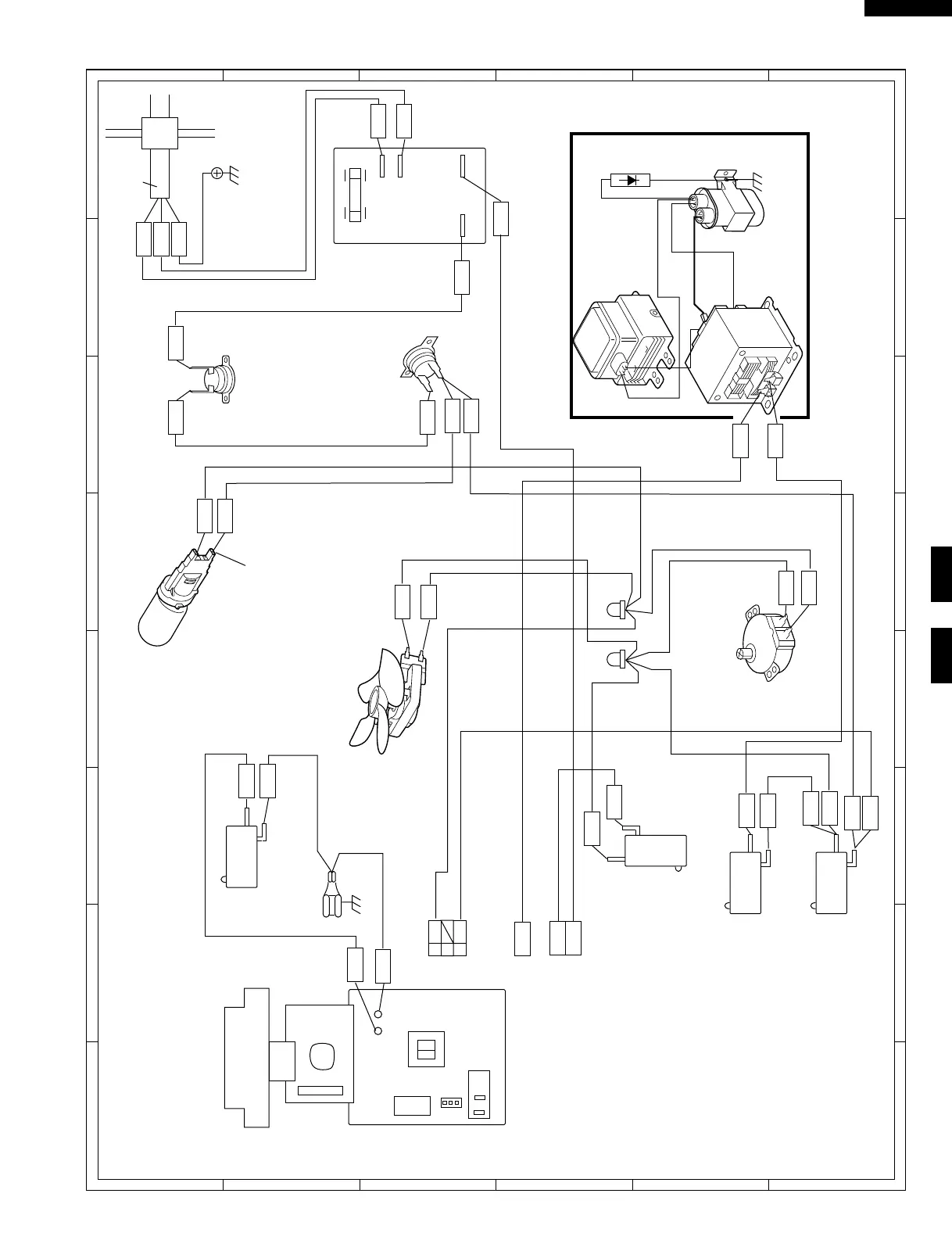

Figure S-1. Pictorial Diagram
HIGH VOLTAGE CAPACITOR
H.V.
RECTIFIER
HIGH VOLTAGE COMPONENTS
OVEN LAMP  AND SOCKET
MAGNETRON
COM.
MONITOR SWITCH
COM.
N.O.
N.C.
DOOR SENSING SWITCH
TURNTABLE MOTOR
NOTE: Hot (RED) wire must be connected to the terminal with blue mark on the oven light socket.
POWER  TRANSFORMER
COM.
NO
CN-A
1 2
RED
3
WHT
WHT
BLK
WHT
RED
WHT
RED
GRY
GRN
RED
GRY
WHT
BLK
GRY
RY2 (COM)
RY2 (N.O.)
GRY
GRN
REDBLK
OVEN THERMAL CUT-OUT
MAGNETRON THERMAL CUT-OUT
FAN MOTOR
BLK
WHT
BRN
GRY
PRIMARY

INTERLOCK SWITCH
COM.
NO
BLK
RED
RED
BRN
THIRD DOOR SWITCH
(OVEN SIDE)
RED
BLK
RED
GRYRED
N H

WHT
BLK
GRY
BLK
WHT
GRN
POWER  SUPPLY CORD
BLUE  MARK
CONTROL UNIT

RY1
N.O.
COM.
RY2
SH-A
SH-B
PRIMARY INTERLOCK  RELAY
CN-A
T1
1 3
CN-G
IC1
RED
