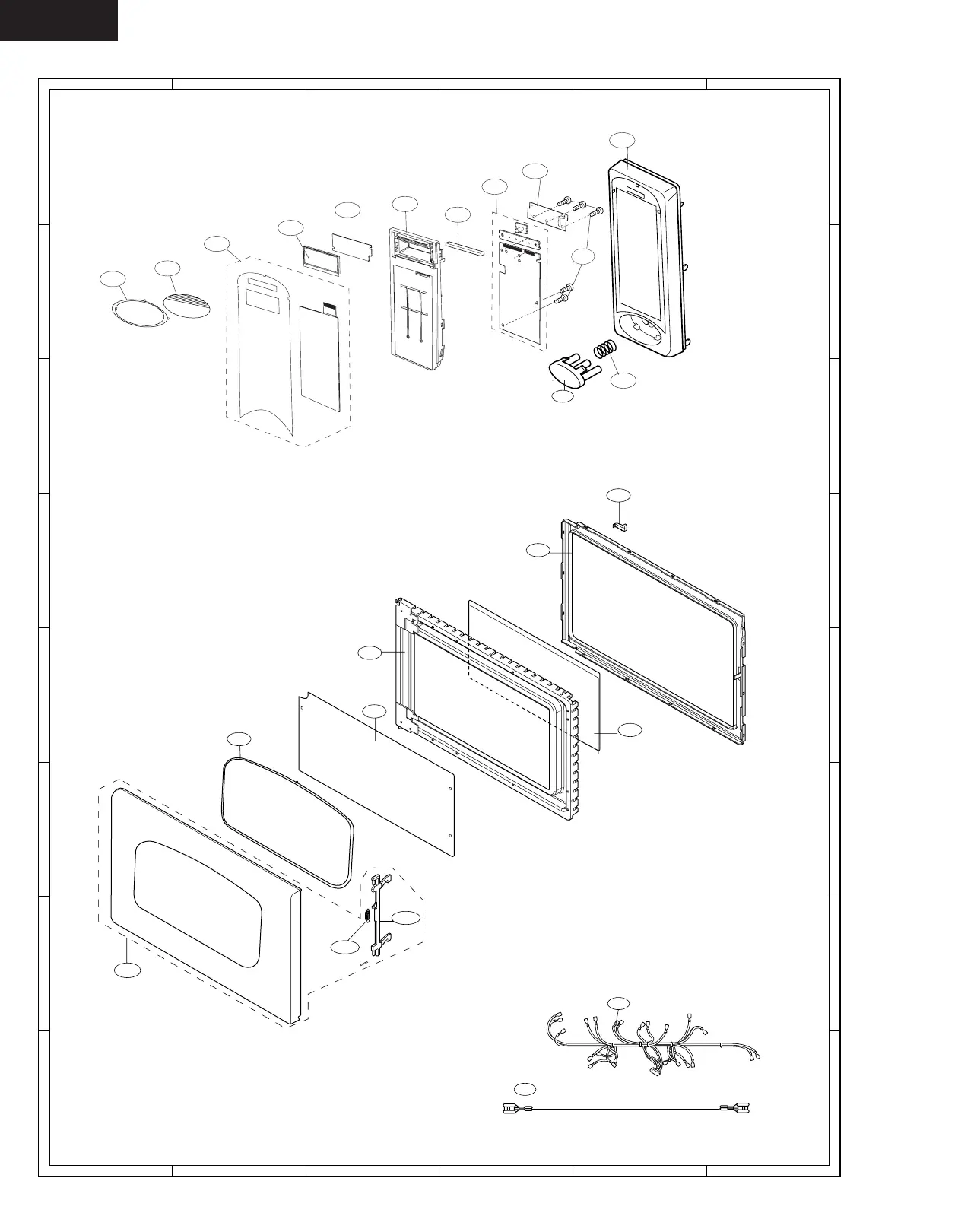

CONTROL PANEL PARTS
Actual wire harness may be different from illustration.
6-7
6-1
5-1
5-3
5-2
5-5
5-6
5-8
5-4
5-7
5-9
3-9
3-4
3-11
3-8
3-12
3-10
3-2
3-3
3-5
3-7
3-6
3-1
3-13
DOOR PARTS
MISCELLANEOUS
