17
R-430CK
R-430CW
R-430CD
WARNING : The oven should be fully assembled before following procedure.
(1) Place one cup of water in the center of the turntable tray in the oven cavity.
(2) Close the door, touch the " Compu Defrost " pad three times and touch the number pad 5. And then
touch the start pad.
(3) The oven is in Compu Defrost cooking condition.
(4) The oven will operate as follows
1ST STAGE 2ND STAGE
WEIGHT
LEVEL TIME LEVEL TIME
0.5lb 60% 27sec. 40% 17sec.
6. Re-install the outer case (cabinet).
7. Reconnect the power supply cord after the outer case is installed.
8. Run the oven and check all functions.
TEST PROCEDURES
PROCEDURE
LETTER
COMPONENT TEST
1. Disconnect the power supply cord, and then remove outer case.
2. Open the door and block it open.
3. Discharge high voltage capacitor.
4. Disconnect the leads to the primary of the power transformer.
5. Ensure that these leads remain isolated from other components and oven chassis by using insulation
tape.
6. After that procedure, re-connect the power supply cord.
7. Remove the outer case and check voltage between Pin No. 1 of the 2 pin connector (A) and the
common terminal of the relay RY1 on the control unit with an A.C. voltmeter.
The meter should indicate 120 volts, if not check oven circuit.
RY1 and RY2 Relay Test
These relays are operated by D.C. voltage
Check voltage at the relay coil with a D.C. voltmeter during the microwave cooking operation.
DC. voltage indicated ............. Defective relay.
DC. voltage not indicated ........ Check diode which is connected to the relay coil. If diode is good,
control unit is defective.
RELAY SYMBOL OPERATIONAL VOLTAGE CONNECTED COMPONENTS
RY1 Approx. 24.3V D.C. Oven lamp / Turntable motor / Cooling fan motor
RY2 Approx. 23.4.V D.C. Power transforme
8. Disconnect the power supply cord, and then remove outer case.
9. Open the door and block it open.
10. Discharge high voltage capacitor.
11. Reconnect all leads removed from components during testing.
12. Re-install the outer case (cabinet).
13. Reconnect the power supply cord after the outer case is installed.
14. Run the oven and check all functions.

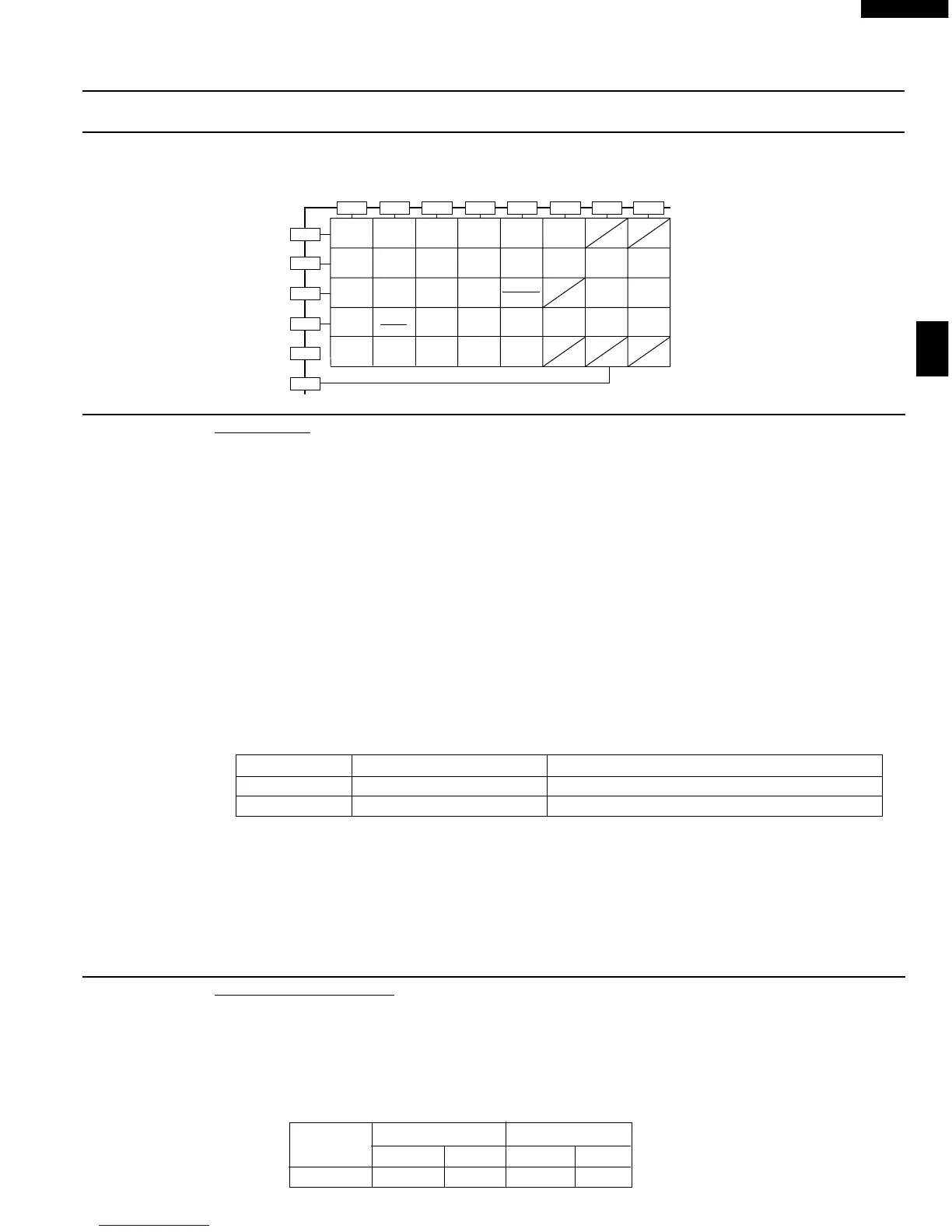

L COMPU DEFROST TEST
K RELAY TEST
Key Unit
Popcorn
COMPU
DEFROST
Custom
Help
Stop
Clear
Baked
Potatoes
5
4
3
21
09876
Power
Level
Minute
Plus
Frozen
Snacks
Ground
Meat
Start
Touch On
G 8
G 9
G10
G11
G12
G13
G14
G 7 G 6 G 5 G 4 G 3 G 2 G 1
Beverage
Center
One Dish
Dinners
Frozen
Vegetables
Clock
Kitchen
Timer
Fish/
Seafood
Sensor
Reheat
Rice
Lunch on
the Run
Fresh
Vegetables
Frozen
entrees
Poultry
Breakfast
Bar
Super
Defrost
