R-450C
HOW TO ORDER REPLACEMENT PARTS
To have your order filled prompty and correctly, please furnish the following information.
1. MODEL NUMBER 2. REF. NO. 3. PART NO. 4. DESCRIPTION
Note: The parts marked "
∆" may cause undue microwave exposure.
The parts marked "*" are used in voltage more than 250V.
REF. NO. PART NO. DESCRIPTION Q'TY CODE
∆
∆
∆
4-19 PCUSUA237WRP0 Cushion 1 AF
4-20 PSKR-A319WRF0 MG air guide 1 AE
4-21 PSKR-A321WRP0 Air guide 1 AY
4-22 PCUSGA532WRP0 Cushion 1 AF
4-23 PCUSGA531WRP0 Cushion 1 AF
DOOR PARTS
5 CDORFA840WRK0 Door assembly 1 BE
5- 1 FDORFA290WRT0 Door panel 1 BA
5- 2 HPNL-A692WRR0 Door screen 1 AX
5- 3 GWAKPA644WRR0 Door frame 1 AT
5- 4 GCOVHA382WRF0 Choke cover 1 AM
5- 5 PSHEPA336WRP0 Sealer film 1 AF
5- 6 LSTPPA139WRF0 Latch head 1 AF
5- 7 MSPRTA084WRE0 Latch spring 1 AD
5- 8 XCPSD40P06000 Screw; M4 x 6 3 AA
MISCELLANEOUS
6- 1 TSPCNC778WRR0 Rating label 1 AD
6- 2 FW-VZB122WRE0 Switch harness 1 AP
6- 3 FW-VZB745WRE0 Main wire harness 1 AU
6- 4 FROLPA092WRK0 Turntable support 1 AE
6- 5 TLABMA538WRR0 Menu label 1 AF
6- 6 PZET-A012WRE0 Terminal insulator 1 AB
6- 7 TCAUHA214WRR0 K caution label 1 AC
6- 8 TINSEA809WRR0 Operation manual 1 AM
6- 9 NTNT-A095WRE0 Turntable tray 1 AX
SCREWS, NUTS AND WASHERS
7- 1 XHTSD40P08RV0 Screw; M4 x 8 10 AA
7- 2 LX-CZ0052WRE0 Special screw 2 AA
7- 3 LX-EZA042WRE0 Special screw 2 AB
7- 4 XHPSD30P06000 Screw; M3 x 6 1 AA
7- 5 XHPSD40P08K00 Screw; M4 x 8 9 AA
7- 6 XHPSD30P08XS0 Screw; M3 x 8 1 AA
7- 7 LX-EZA050WRE0 Special screw; 1 AB
7- 8 XOTSD40P12RV0 Screw; M4 x 12 12 AB
7- 9 XOTSD40P12000 Screw; M4 x 12 2 AA

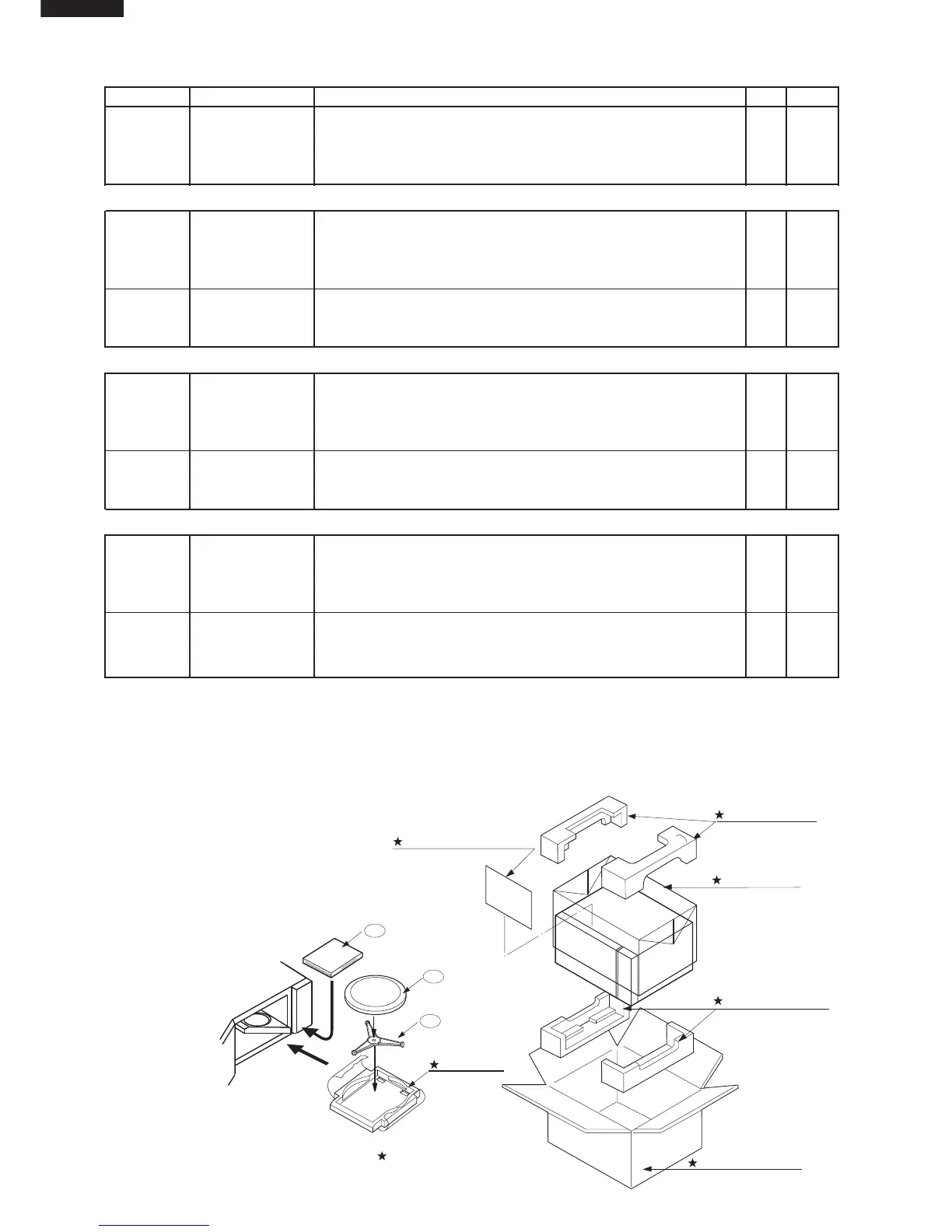

PACKING AND ACCESSORIES
PACKING CASE
SPAKCD264WRE0
BOTTOM PAD ASSEMBLY
FPADBA318WRK0
DOOR PROTECTION SHEET
SPADPA204WRE0
TOP PAD ASSEMBLY
FPADBA317WRK0
PLASTIC BAG
SSAKHA032WRE0
Not replaceable items.
6-9 TURNTABLE TRAY
6- 8 OPERATION MANUAL
6-4 TURNTABLE SUPPORT
TRAY PACK
SPADFA389WRE0
INTO THE
OVEN CAVITY
