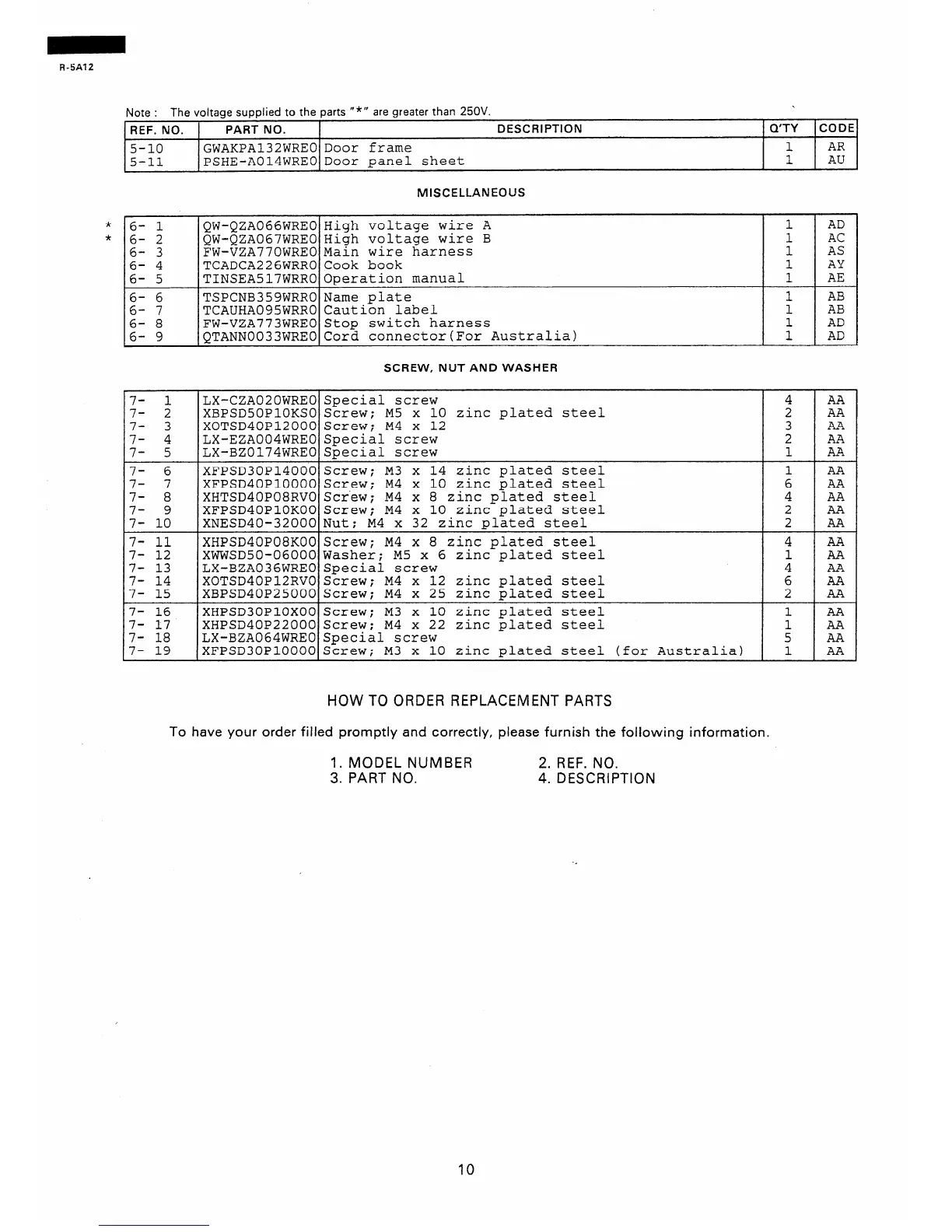

Sharp R-5A12 User Manual

R-5A12
Note :
The voltage supplied to the parts “*” are greater than 250V.
\
REF. NO.
PART NO.
DESCRIPTION
Q’TY CODE
S-10
GWAKPA132WREO Door frame
AR
5-11
PSHE-A014WREO Door panel sheet
:: AU
MISCELLANEOUS
*
*
6- 1 QW-QZA066WREO High voltage wire A 1 AD
;I '3
QW-QZA067WREO High voltage wire B
1
AC
FW-VZA770WREO Main wire harness
AS
6- 4 TCADCA226WRRO Cook book i AY
6- 5 TINSEA517WRRO Operation manual 1 AE
;I ;
TSPCNB359WRRO Name plate
1
AB
TCAUHA095WRRO Caution label
1
AB
6- 8 FW-VZA773WREO Stop switch harness 1 AD
6- 9 QTANN0033WREO Cord connector(For Australia) 1 AD
SCREW, NUT AND WASHER
7- 1 LX-CZA020WREO Special screw 4 AA
7- 2 XBPSD50PlOKSO Screw; M5 x 10 zinc plated steel 2 AA
7- 3 XOTSD40P12000 Screw; M4 x 12 3 AA
7- 4 LX-EZA004WREO Special screw 2 AA
7- 5 LX-BZ0174WREO Special screw 1 AA
7- 6 XFPSD30P14000 Screw; M3 x 14 zinc plated steel AA
;I
i
XFPSD40P10000 Screw;
M4 x 10 zinc plated steel 6' AA
XHTSD40P08RVO Scr.ew; M4 x 8 zinc plated steel
4 AA
7- 9 XFPSD40PlOKOO Screw; M4 x 10 zinc plated steel 2 AA
7- 10 XNESD40-32000 Nut; M4 x 32 zinc plated steel 2 AA
7- 11 XHPSD40P08KOO Screw; M4 x 8 zinc plated steel 4 AA
;- - 12 13 XWWSD50-06000 Washer; M5 x 6 zinc plated steel 1 AA
LX-BZA036WREO Special screw
4 AA
;- - 14 15 XOTSD40P12RVO Screw; M4 x 12 zinc plated steel
XBPSD40P25000 Screw; M4 x 25 zinc plated steel
7- 16 XHPSD30PlOXOO Screw; M3 x 10 zinc plated steel 1 AA
;I g
XHPSD40P22000 Screw;
M4 x 22 zinc plated steel
1 AA
LX-BZA064WREO Special screw 5 AA
7- 19 XFPSD30PlOOOO Screw; M3 x 10 zinc plated steel (for Australia) 1 AA
HOW TO ORDER REPLACEMENT PARTS
To have your order filled promptly and correctly, please furnish the following information.
1. MODEL NUMBER 2. REF. NO.
3. PART NO.
4. DESCRIPTION
10
