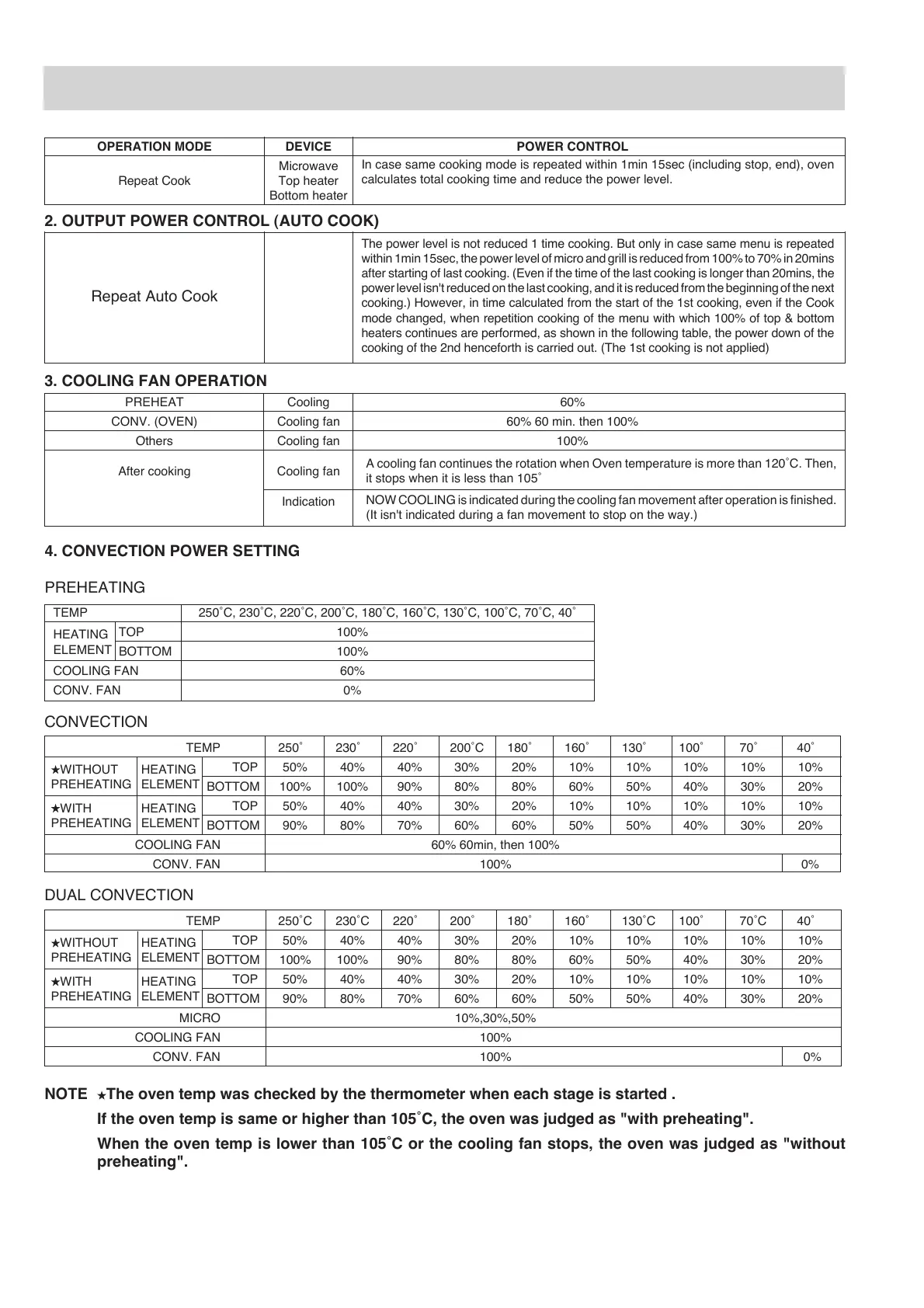

R-875/885 - 12
The power level is not reduced 1 time cooking. But only in case same menu is repeated
within 1min 15sec, the power level of micro and grill is reduced from 100% to 70% in 20mins
after starting of last cooking. (Even if the time of the last cooking is longer than 20mins, the
power level isn't reduced on the last cooking, and it is reduced from the beginning of the next
cooking.) However, in time calculated from the start of the 1st cooking, even if the Cook
mode changed, when repetition cooking of the menu with which 100% of top & bottom
heaters continues are performed, as shown in the following table, the power down of the
cooking of the 2nd henceforth is carried out. (The 1st cooking is not applied)
In case same cooking mode is repeated within 1min 15sec (including stop, end), oven
calculates total cooking time and reduce the power level.
3. COOLING FAN OPERATION
PREHEAT Cooling 60%
CONV. (OVEN) Cooling fan 60% 60 min. then 100%
Others Cooling fan 100%
After cooking Cooling fan
Indication
4. CONVECTION POWER SETTING
PREHEATING
TEMP 250˚C, 230˚C, 220˚C, 200˚C, 180˚C, 160˚C, 130˚C, 100˚C, 70˚C, 40˚C
HEATING
TOP 100%
ELEMENT
BOTTOM 100%
COOLING FAN 60%
CONV. FAN 0%
CONVECTION
TEMP 250˚C 230˚C 220˚C 200˚C 180˚C 160˚C 130˚C 100˚C70˚C40˚C
WITHOUT HEATING
TOP 50% 40% 40% 30% 20% 10% 10% 10% 10% 10%
PREHEATING ELEMENT
BOTTOM 100% 100% 90% 80% 80% 60% 50% 40% 30% 20%
WITH HEATING
TOP 50% 40% 40% 30% 20% 10% 10% 10% 10% 10%
PREHEATING ELEMENT
BOTTOM 90% 80% 70% 60% 60% 50% 50% 40% 30% 20%
COOLING FAN 60% 60min, then 100%
CONV. FAN 100% 0%
DUAL CONVECTION
TEMP 250˚C 230˚C 220˚C 200˚C 180˚C 160˚C 130˚C 100˚C70˚C40˚C
WITHOUT HEATING
TOP 50% 40% 40% 30% 20% 10% 10% 10% 10% 10%
PREHEATING ELEMENT
BOTTOM 100% 100% 90% 80% 80% 60% 50% 40% 30% 20%
WITH HEATING
TOP 50% 40% 40% 30% 20% 10% 10% 10% 10% 10%
PREHEATING ELEMENT
BOTTOM 90% 80% 70% 60% 60% 50% 50% 40% 30% 20%
MICRO 10%,30%,50%
COOLING FAN 100%
CONV. FAN 100% 0%
NOTE The oven temp was checked by the thermometer when each stage is started .
If the oven temp is same or higher than 105˚C, the oven was judged as "with preheating".
When the oven temp is lower than 105˚C or the cooling fan stops, the oven was judged as "without
preheating".
A cooling fan continues the rotation when Oven temperature is more than 120˚C. Then,
it stops when it is less than 105˚C
NOW COOLING is indicated during the cooling fan movement after operation is finished.
(It isn't indicated during a fan movement to stop on the way.)
OPERATION MODE DEVICE POWER CONTROL
Microwave
Repeat Cook Top heater
Bottom heater
2. OUTPUT POWER CONTROL (AUTO COOK)
Repeat Auto Cook
OPERATION SEQUENCE
