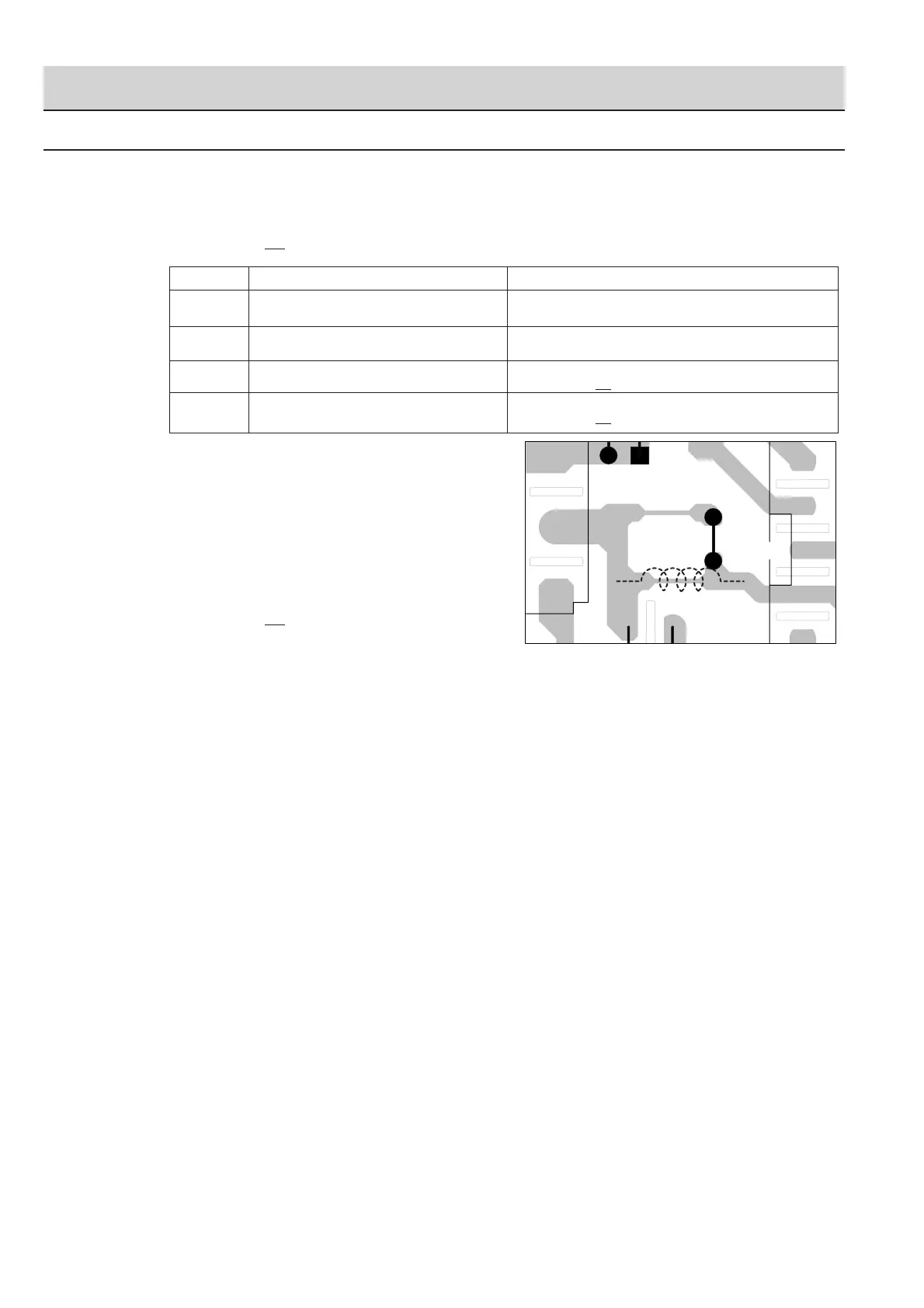

R-875/885 - 22
PROCEDURE
LETTER
COMPONENT TEST
Problem: POWER ON, indicator does not light up.
CARRY OUT 3D CHECKS.
STEPS OCCURRENCE CAUSE OR CORRECTION
1 The rated AC voltage is not present between Check supply voltage and oven power cord.
Pin Nos. 1 and 3 of the 4-pin connector (E).
2 The rated AC voltage is present at primary Low voltage transformer or secondary circuit defective.
side of low voltage transformer. Check and repair.
3 Only pattern at “a” is broken. *Insert jumper wire J1 and solder.
(CARRY OUT 3D CHECKS BEFORE REPAIR)
4 Pattern at “a” and “b” are broken. *Insert the coil RCILF2003YAZZ between “c” and “d”.
(CARRY OUT 3D CHECKS BEFORE REPAIR)
NOTE: *At the time of these repairs, make a visual
inspection of the varistor for burning dam-
age and examine the transformer with tester
for the presence of layer short circuit (check
primary coil resistance).
If any abnormal condition is detected, re-
place the defective parts.
CARRY OUT 4R CHECKS.
CN-A
CN-E
D12
7
(J1)
D13
VRS1
a
cd
b
TEST PROCEDURES
To Next Page
