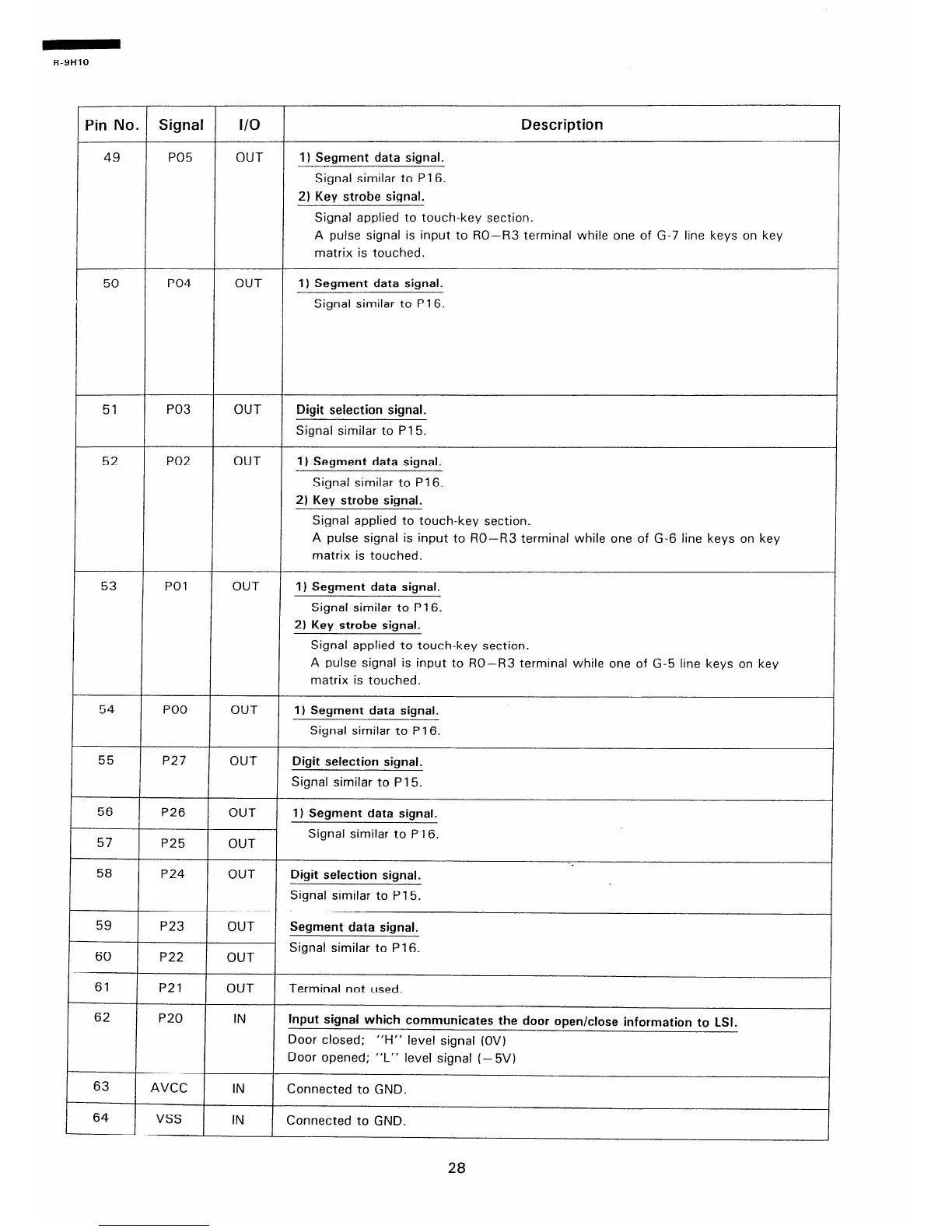

Sharp R-9H10 User Manual

-
R-9HlO
Pin No. Signal
I/O
49
PO5
OUT
50
PO4 OUT
51
PO3
OUT
52
PO2 OUT
53 PO1 OUT
54 PO0
55 P27
56
P26
57
P25
58
P24
OUT
OUT
OUT
OUT
OUT
59
P23
60
P22
OUT Segment data signal.
~ Signal similar to P16.
OUT
61
P21
62
P20
63
AVCC
64
vss
OUT
IN
IN
IN
Description
1) Segment data signal.
Signal similar to P16.
2) Key strobe signal.
Signal applied to touch-key section.
A pulse signal is input to RO-R3 terminal while one of G-7 line keys on key
matrix is touched.
1) Segment data signal.
Signal similar to P16.
Digit selection signal.
Signal similar to P15.
1) Segment data signal.
Signal similar to P16.
2) Key strobe signal.
Signal applied to touch-key section.
A pulse signal is input to RO-R3 terminal while one of G-6 line keys on key
matrix is touched.
1) Segment data signal.
Signal similar to P16.
2) Key strobe signal.
Signal applied to touch-key section.
A pulse signal is input to RO-R3 terminal while one of G-5 line keys on key
matrix is touched.
1) Segment data signal.
Signal similar to P16.
Digit selection signal.
Signal similar to P15.
1) Segment data signal.
Signal similar to P16.
Digit selection signal.
Signal similar to P15.
Terminal not used.
Input signal which communicates the door open/close information to LSI.
Door closed;
“H” level signal (OV)
Door opened;
“L” level signal (-- 5V)
Connected to GND.
Connected to GND.
28
