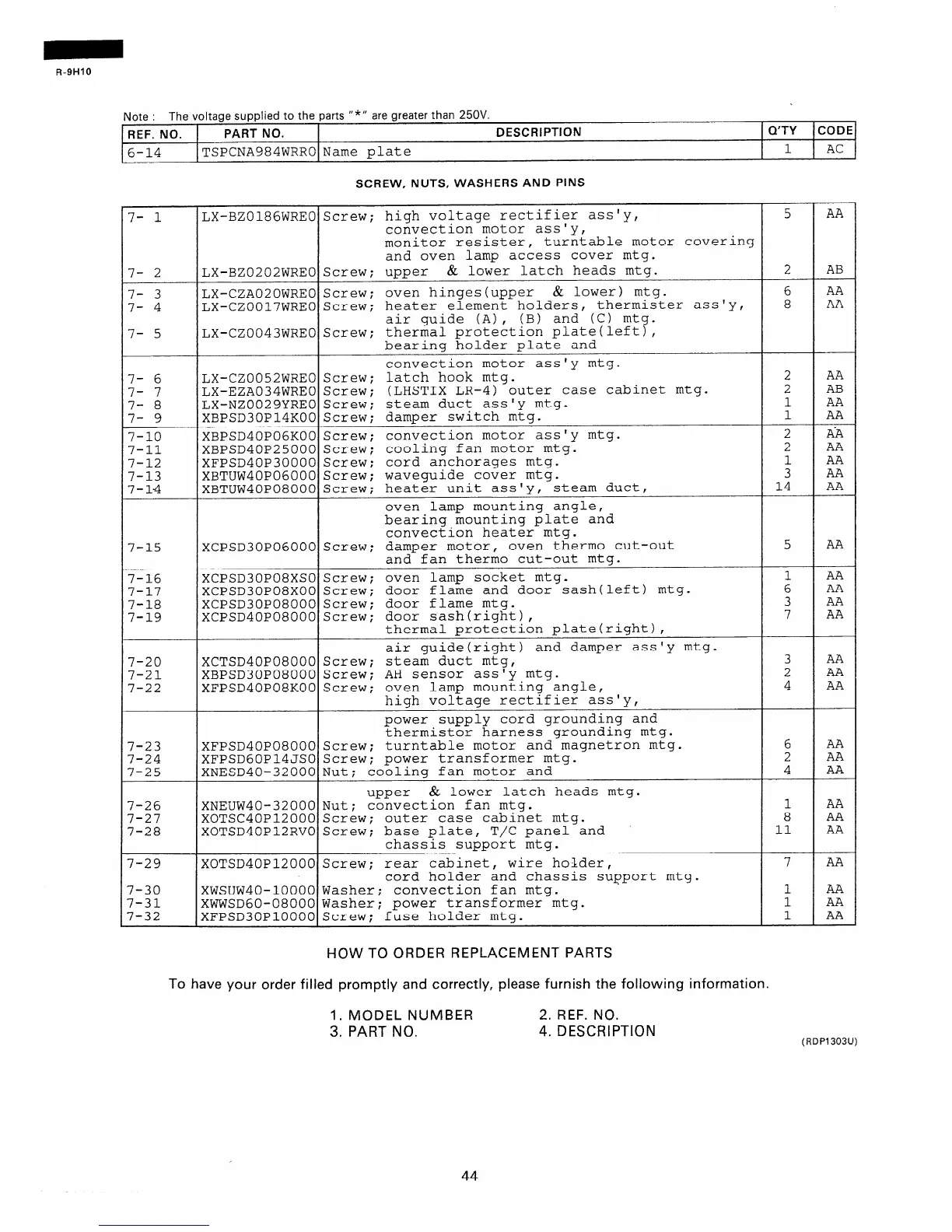

R-9HlO
\
Note :
The voltage supplied to the parts rr*rr are greater than 250V.
REF. NO.
PARTNO.
DESCRIPTION
Q'TY
CODE
6-14
TSPCNA984WRRO Name plate
1 AC
SCREW,NUTS,WASHERSAND PINS
7- 1
LX-BZ0186WREO Screw;
high voltage rectifier ass'y,
5
AA
convection motor ass'y,
monitor resister,
turntable motor covering
and oven lamp access cover mtg.
7- 2
LX-BZ0202WREO Screw; upper
& lower latch heads mtg.
2 AB
7- 3
LX-CZA020WREO Screw; oven hingescupper
& lower) mtg.
6
AA
7- 4
LX-CZ0017WREO Screw; heater element holders, thermister ass'y,
8
AA
air guide (A), (B) and (C) mtg.
7- 5
LX-CZ0043WREO Screw;
thermal protection plate(left),
bearing holder plate and
convection motor ass'y mtg.
7- 6
LX-CZ0052WREO Screw; latch hook mtg.
2
AA
7- 7
LX-EZA034WREO Screw; (LHSTIX LR-4) outer case cabinet mtg.
2
AB
7- 8
LX-NZ0029YREO Screw;
steam duct ass'y mtg.
1 AA
7- 9
XBPSD30P14KOO Screw; damper switch mtg.
1
AA
7-10
XBPSD40P06KOO Screw;
convection motor ass'y mtg.
2
A*A
7-11 XBPSD40P25000 Screw;
cooling fan motor mtg.
2 AA
7-12
XFPSD40P30000 Screw; cord anchorages mtg.
AA
7-13
XBTUW40P06000 Screw; waveguide cover mtg.
; AA
7-14
XBTUW40P08000 Screw; heater unit ass'y, steam duct,
14
AA
oven lamp mounting angle,
bearing mounting plate and
convection heater mtg.
7-15
XCPSD30P06000 Screw; damper motor, oven therm0 cut-out
5
AA
and fan therm0 cut-out mtg.
7-16
XCPSD30P08XSO Screw;
oven lamp socket mtg.
AA
7-17
XCPSD30P08XOO Screw;
door flame and door sash(left) mtg.
: AA
7-18
XCPSD30P08000 Screw; door flame mtg.
3
AA
7-19
XCPSD40P08000 Screw; door sashlright),
7 AA
thermal protection platecright),
air guide(right) and damper ass'y mtg.
7-20
XCTSD40P08000 Screw; steam duct mtg,
3 AA
7-21 XBPSD30P08000 Screw; AH sensor ass'y mtg.
AA
7-22 XFPSD40P08KOO Screw;
oven lamp mounting angle,
: AA
high voltage rectifier ass'y,
power supply cord grounding and
thermistor harness grounding mtg.
7-23 XFPSD40P08000 Screw;
turntable motor and magnetron mtg.
6
AA
7-24 XFPSDGOP14JSO Screw; power transformer mtg.
2
AA
7-25
XNESD40-32000 Nut;
cooling fan motor and
4
AA
upper
& lower latch heads mtg.
7-26 XNEUW40-32000 Nut;
convection fan mtg.
1
AA
7-27 XOTSC40P12000 Screw;
outer case cabinet mtg.
8
AA
7-28 XOTSD40P12RVO Screw; base plate, T/C panel and
11 AA
chassis support mtg.
7-29
XOTSD40P12000 Screw; rear cabinet, wire ho&der,
7
AA
cord holder and chassis support mtg.
7-30
XWSUW40-10000 Washer; convection fan mtg.
1 AA
7-31
XWWSD60-08000 Washer; power transformer mtg.
1
AA
7-32
XFPSD30PlOOOO Screw; fuse holder mtg.
1
AA
HOW TO ORDER REPLACEMENT PARTS
To have your order filled promptly and correctly, please furnish the following information.
1. MODEL NUMBER
2. REF. NO.
3. PART NO.
4. DESCRIPTION
(RDP1303U)
44
